QiuzAim ventilador de CPU 90mm 4 pines/PWM 2 tubos de calor procesador de enfriador de PC instalación eficiente refrigerada por aire LGA115x 1200 1700 1366 AMD AM3 AM4

The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.

Brand Name：QiuzAim

Fan size: 90 × 90 × 25mm

3Pin speed: 2000 RPM ± 10%

4Pin speed: 800-2000 RPM ± 10%

Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)

Rated voltage: 12V DC

3Pin current: No light 0.18A with light 0.28A ± 10%

4Pin current: No light 0.1A with light 0.2A ± 10%

3Pin power: 2W without light, 3.5W with light ± 10%

4Pin power: 1W without light, 2.5W with light ± 10%

Packaging method: boxed

The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase in increments

Package: Color Box (CPU cooler*1, fixing bracket*1 kit, silicone grease*1 )

Packing list（Sketch Map）：①②③

Product applicable platform

AMD full series of desktop universal：

AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX...

(AMD series：Customers are required to keep the original bracket，If lost, please contact the Our customer service.)

LGA multi-platform universal：

LGA 775/1150/1151/1155/1156/1200/1356/1366/1700Celer series/Pen series/ Cor Dual

i3-i5-i7-i9 12th-14th Gen

Declaration:

The CPU cooler comes with an Intel fixed bracket, while the AMD bracket is an original accessory for the motherboard

and we will not deliver it. If you need AMD fasteners, please contact our customer service.

3Pin and 4Pin connectors are universally compatible;

installation is worry-free regardless of the interface type.

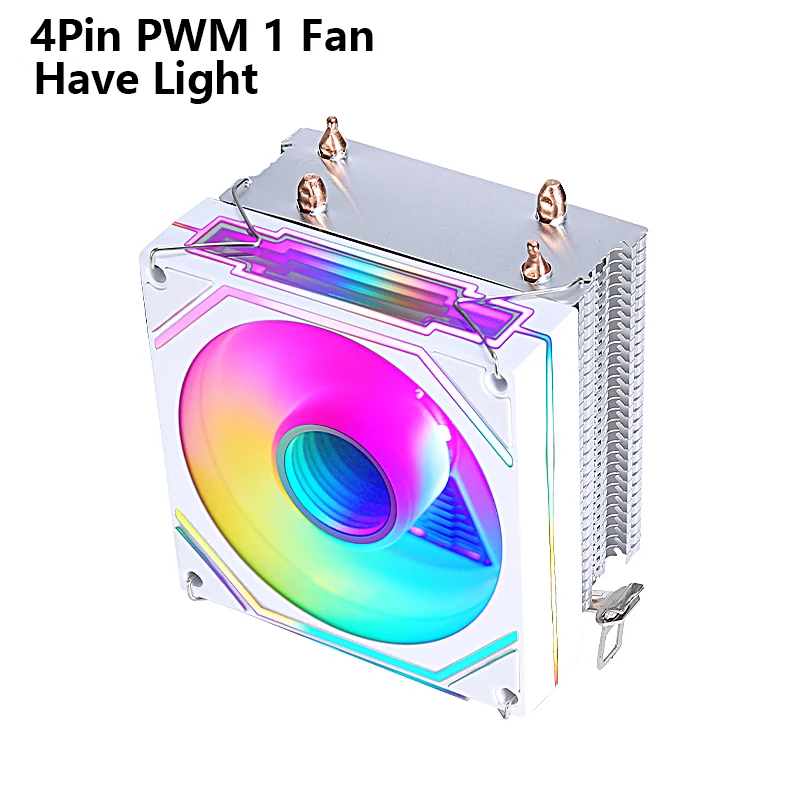

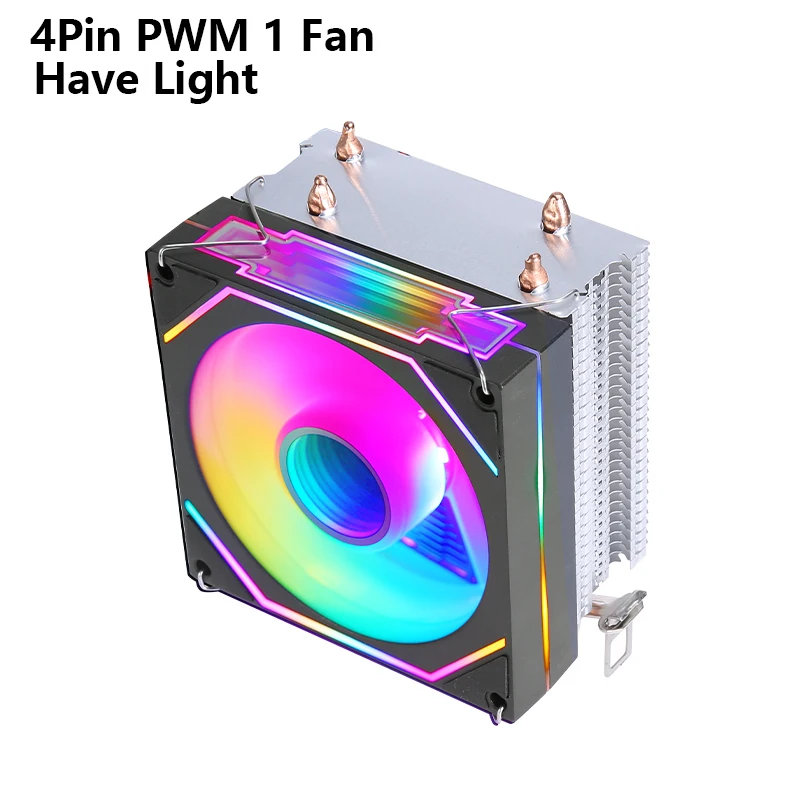

Product image display:

Statement:

As shown in the figure below, it is an inevitable production process, not a quality problem,

nor will it affect the product function and performance. Your successful purchase means

that you have approved the process. If there is any dispute or refund due to this process,

we will not accept it.
