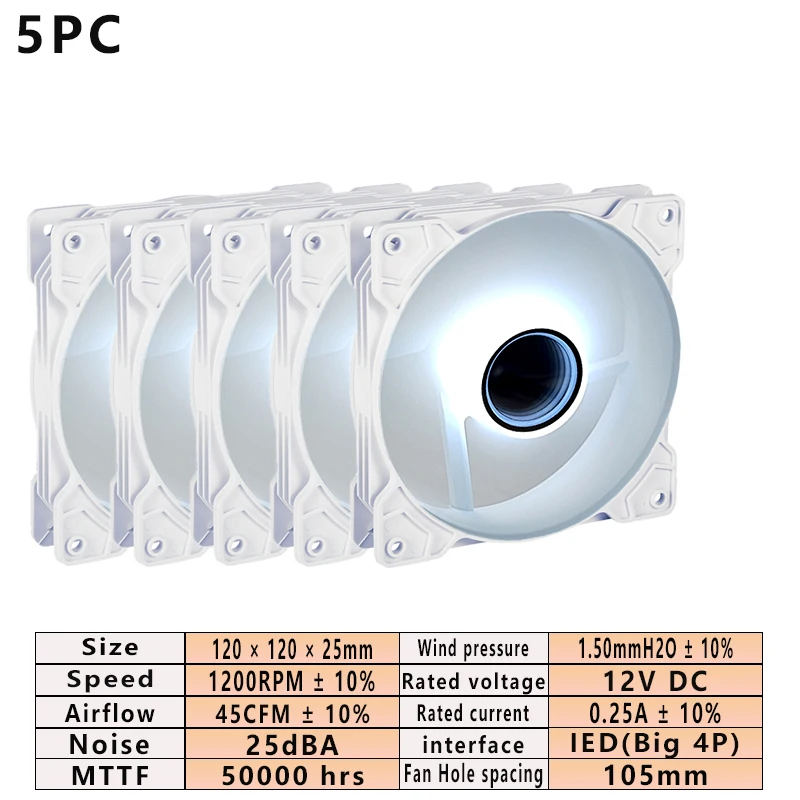

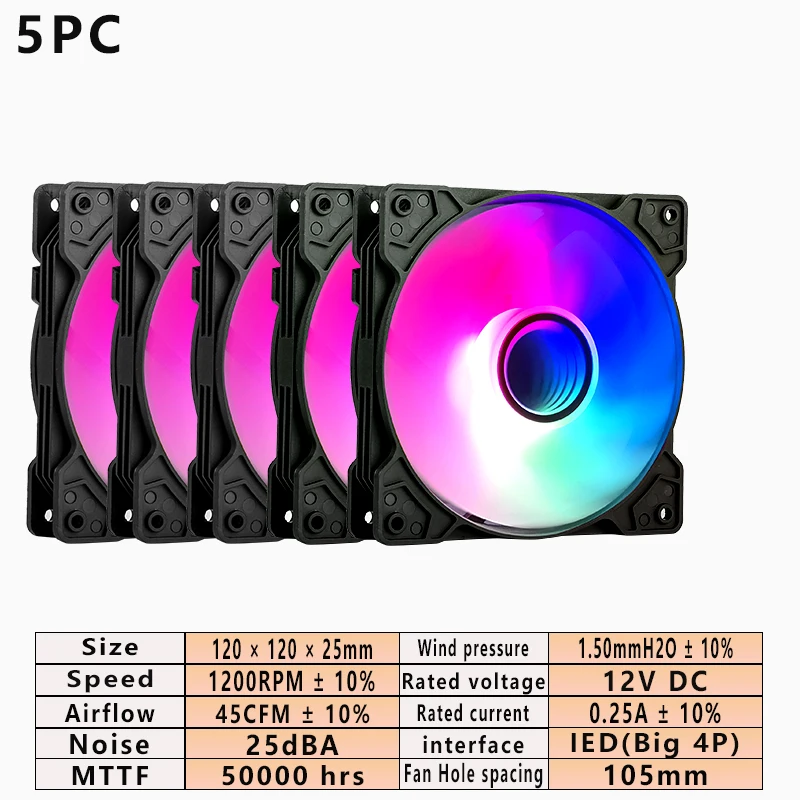

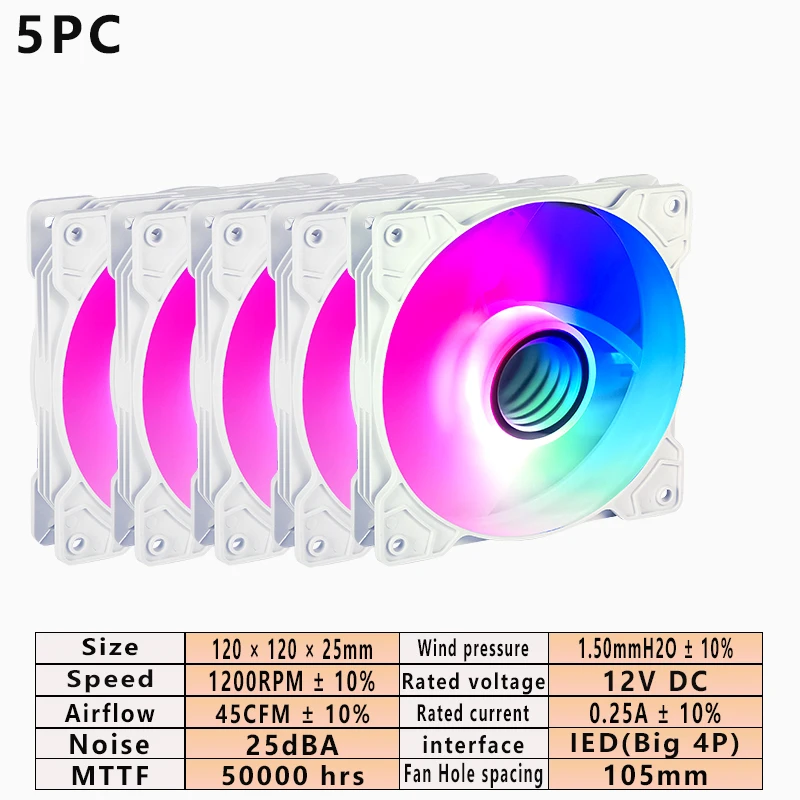

QiuzAim-refrigerador de aire, ventilador de 120mm, caja de PC, cinco en uno, conjunto de chasis, ventilador de refrigeración DIY DC12V, grande, 4 pines, se puede conectar en serie

The following is a tutorial on installing a chassis fan. The product in the video may be different from the one you purchased, but the installation method is the same.

Brand Name：QiuzAim

Size: 120 × 120 × 25mm

Speed: 1200RPM ± 10%

Airflow: 45CFM ± 10%

Wind pressure: 1.50mmH2O ± 10%

Noise: 25dBA

MTTF：50000 hours

Bearing: Hydraulic

Interface: IDE (Big 4P)

Rated voltage: 12V DC

Rated current: 0.25A ± 10%

The parameters are subject to actual parameters and are subject to change without prior notice。
