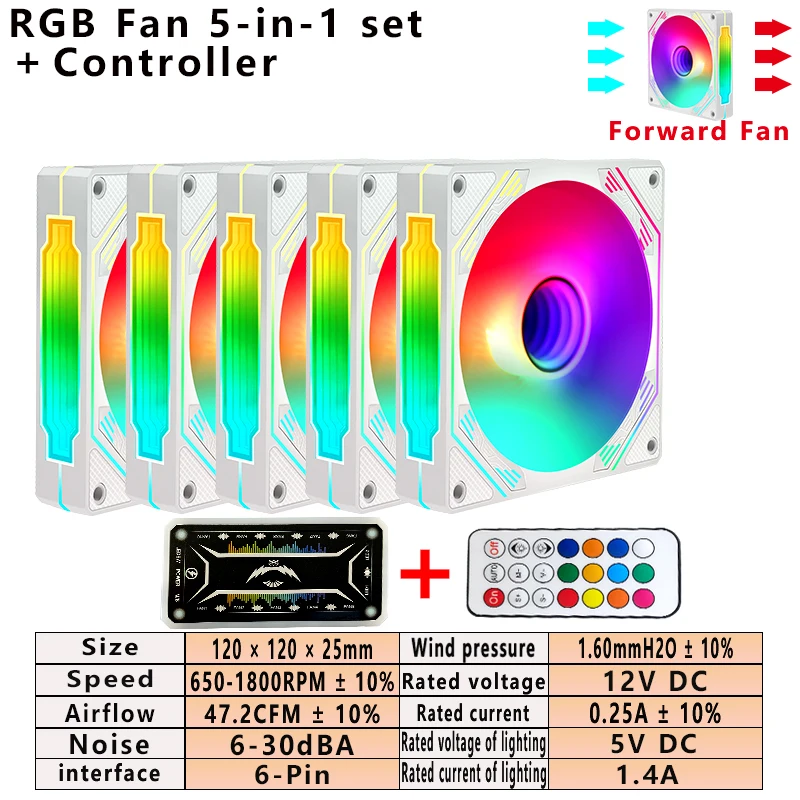

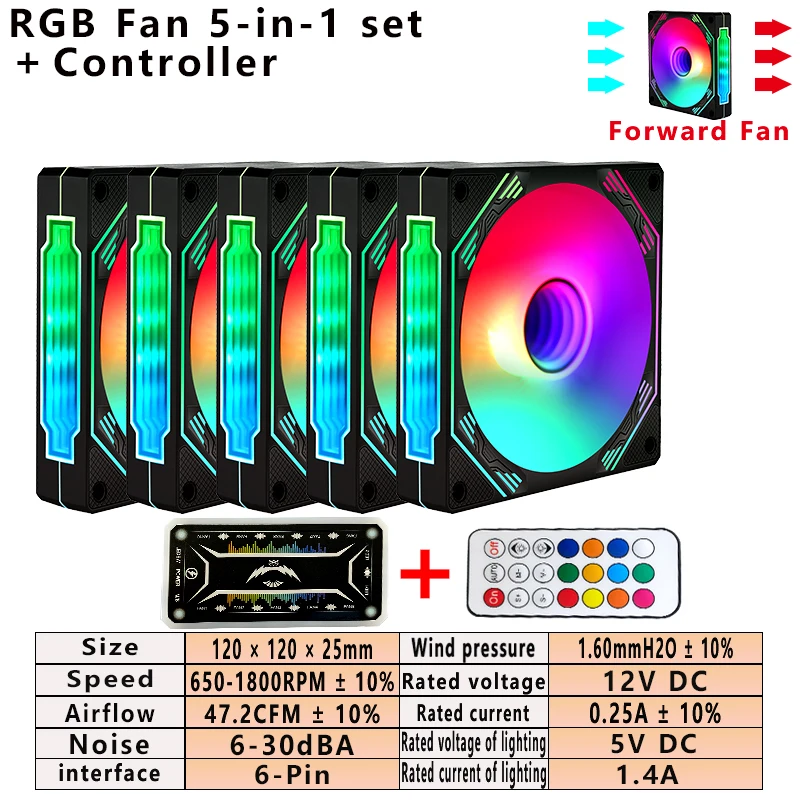

QiuzAim-Juego de 5 en 1, ventilador RGB de 6 pines DC12V, necesita ser combinado con el controlador, ventilador de 120mm, bricolaje, PC, caja de ordenador, Enfriador de refrigeración

The following is a tutorial on installing a chassis fan. The product in the video may be different from the one you purchased, but the installation method is the same.

Size: 120 × 120 × 25mm

Speed: 650-1800RPM ± 10%

Airflow: 47.2CFM ± 10%

Wind pressure: 1.60mmH2O ± 10%

Noise: 6-30dBA

Fan interface: 6 pins

Rated voltage of lighting: 5V DC

Rated current of the light: 1.4A

Rated voltage of fan: 12V DC

Rated current of fan: 0.25A ± 10%

Kind reminder: The product needs to be used with a controller.

The parameters are subject to actual parameters and are subject to change without prior notice

The following is the fan size hole spacing selection diagram

The following diagram is an installation schematic

The following is an introduction to the functions of the remote control buttons

1 represents power on/motherboard switching

2 represents fan speed+

3 represents fan speed-

4 represents mode+

5 represents mode-

6 represents continuous pressing for 10 times to enter RGB sequence adjustment. Press the red key until it appears red, then press the green key until it appears green, and then press the off

7 represents static color key

8 represents static brightness-

9 represents static brightness+

10 represents off

11 represents automatic mode cycle

Refer to the diagram for the installation method of the chassis fan
