Placa de desarrollo RDK X5 8GB/4GB Cortex A55 10TOPs Horizon Sunrise 5 D-Robotic

RDK X5 Development Kit

Easy-to-use intelligent robot development platform

Product Specifications

CPU

Octa-core Cortex A55

BPU

10 Tops

RAM Memory

4 GB / 8 GB (Optional)

Storage

Version 1G-bit NAND

With TF card slot, supports UHS-I mode

Interconnection interface

4 × USB 3.0 Host Type-A interface1 × USB 2.0 Device Type-C interface1 × USB 2.0 UART Micro-B interface1 × CAN FD interface40 PIN header, 28 GPIOs onboard, 3.3V logic, supports SPI, I2C, I2S, PWM, UART and other protocols

Camera interface

2 × 4-lane MIPI CSI interface, supporting MIPI V2.1 protocol

Audio

Onboard 3.5mm standard audio interface, supports input and output

2.4/5GHz dual-band wireless LAN, supporting Wi-Fi 6 protocol
Support Bluetooth 5.4 protocol
Onboard high-performance antenna and IPEX interface

Power supply

5V/5A DC power input, Type-C interface

Operating temperature

-20°C ~ 60°C

Product size

85 × 56 × 20 (mm)

Excellent AI computing power and algorithms

Highly cost-effective intelligent computing platform within 2,000 yuan

• The client can deploy a variety of large models such as Transformer, RWKV, and CLIP to make the robot more intelligent.

• Native support for Volcano Engine large model gateway, free traffic to use as much as you want, end-cloud integrated large model to explore robot deep intelligence

• Exclusively customize efficient algorithms such as Occupancy, Stereo, Perception, YOLO, World, etc., one-click deployment, open source use

• From CPU to BPU, all-round performance leaps forward, greatly improving the execution speed of intelligent algorithms and providing excellent computing power support for robots

Advantage Algorithm Matrix

Providing innovative solutions for the robotics era

From intelligent perception to autonomous decision-making, cutting-edge algorithms inject core power into the robotics industry, helping to achieve precise and efficient technological breakthroughs.

Minimalistic robot development experience

One Type-C cable supports hundreds of applications

• A single Type-C cable enables full-stack development processes including system burning, sample running, application development, desktop display, hardware monitoring, etc., eliminating the need for complicated peripherals and wiring.

• RDK is not only a development board, but also a full-stack robot development platform consisting of RDK OS + RDK Nodehub + RDK Studio + RDK Cloud, making robot development easier

• More robot development interfaces (single-eye and dual-eye MIPI, USB3.0 × 4, CAN, audio and video, PWM, etc.), no longer need to connect various external conversion modules

A new way to upgrade the board

Automatically update RDK OS and quickly complete the board upgrade with just one data cable.

Use another Type-C data cable to connect the card board and the power supply, and release it after 3~5 seconds.

Quick application launch

Centralized management of your development boards

Complete community ecological support

Helping robot development all the way

• Hundreds of accessories and robot kits, numerous partners build rich ecological resources

• 10w+ developers build a community together, with many experts gathered to answer all questions and meet all requests, making the road of robot development no longer helpless

• Rich content and diverse events, from theory to practice, quickly understand the development trends of the industry and improve future-oriented technical capabilities

NodeHub

Intelligent Robot Application Center

The Intelligent Robot Application Center is built for robot enthusiasts, aiming to assist robot enthusiasts in developing their own intelligent robots in a simpler, more efficient and open way.

Product size

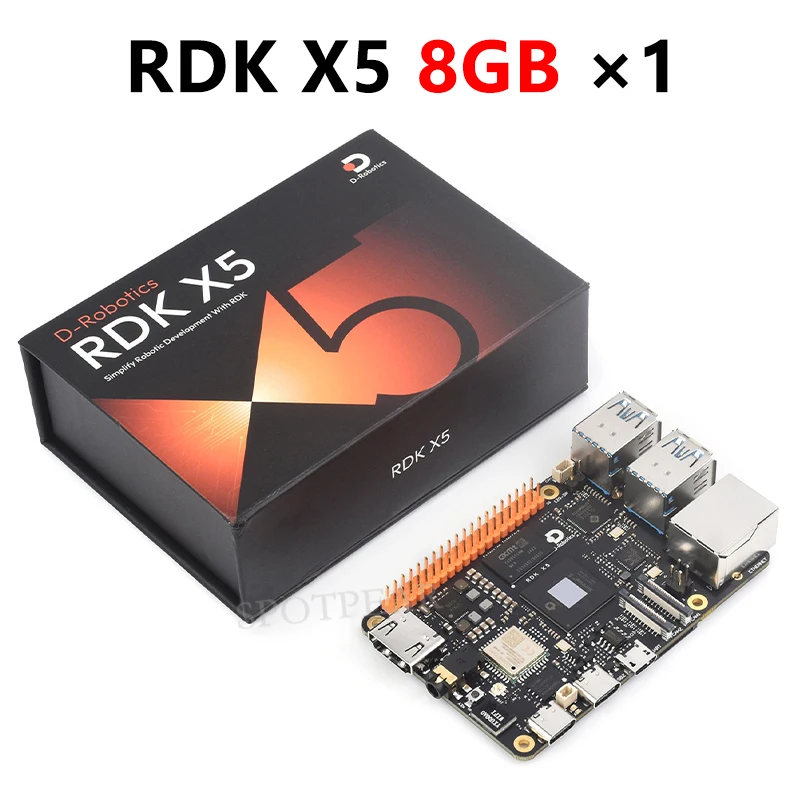

[] RDK X5 8GB

[] RDK X5 4GB Basic Kit

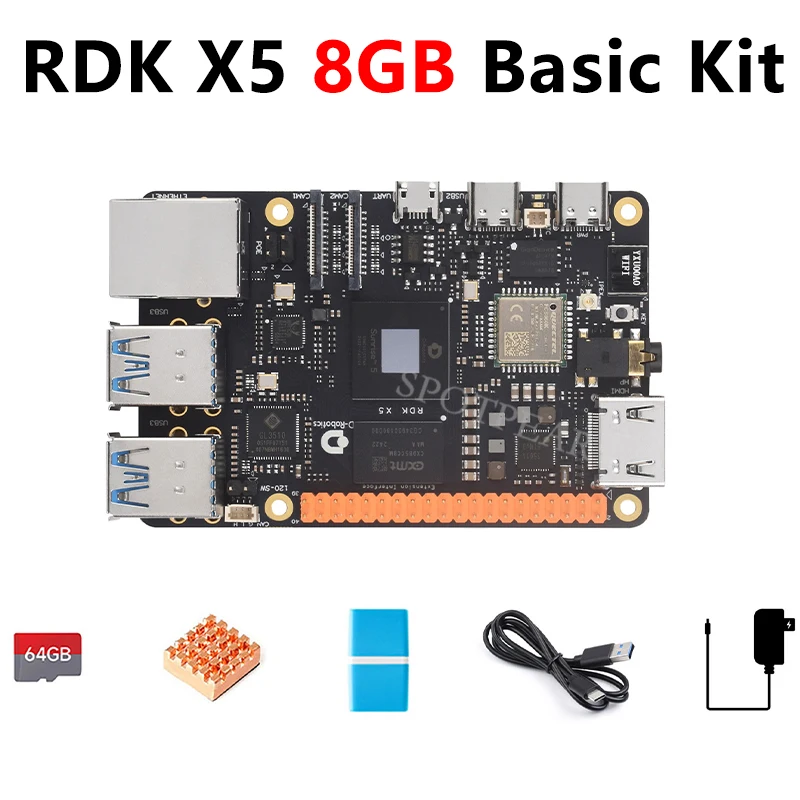

[] RDK X5 8GB Basic Kit
