ORICO-disipador de calor de conducción de cobre para SSD, disipador de calor de refrigeración de disco duro M.2, NGFF, PCI-E, NVME 2280

The product is applicable to the M.2 solid-state hard disk of NVME/NGFF protocol, and is compatible with 22 × 80 size single/double sided M.2 SSD solid state hard disk Lightweight design, can support the installation under the graphics card, and can support the heat dissipation of the hard disk of the PS5 game console Aluminum for heat dissipation provides a larger area of heat dissipation performance. Heat dissipation pipe provides better heat dissipation performance

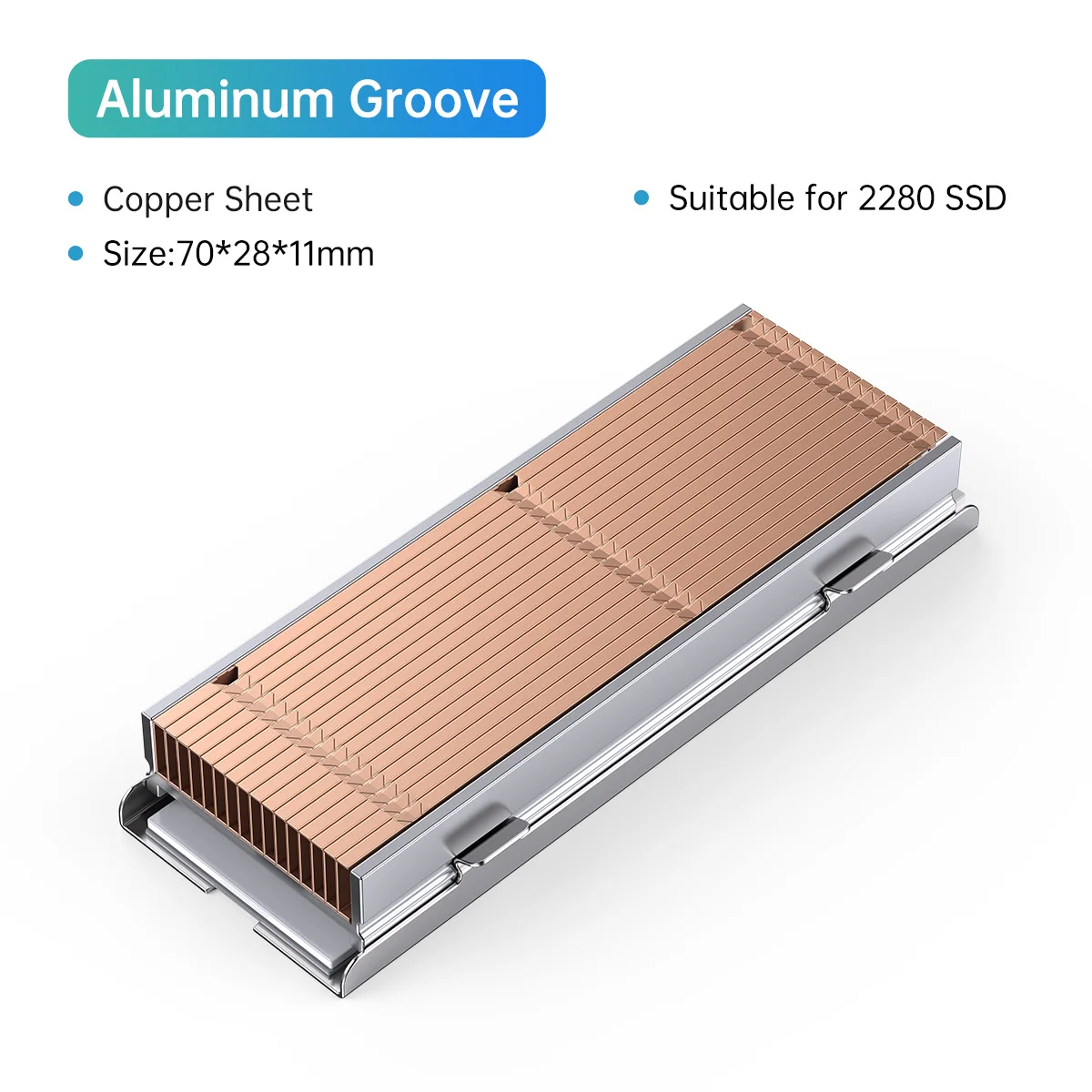

M2HS1

Heat dissipation aluminum +brass fin, making the heat dissipation effect better.

Brass fins provide faster and more efficient heat dissipation performance.

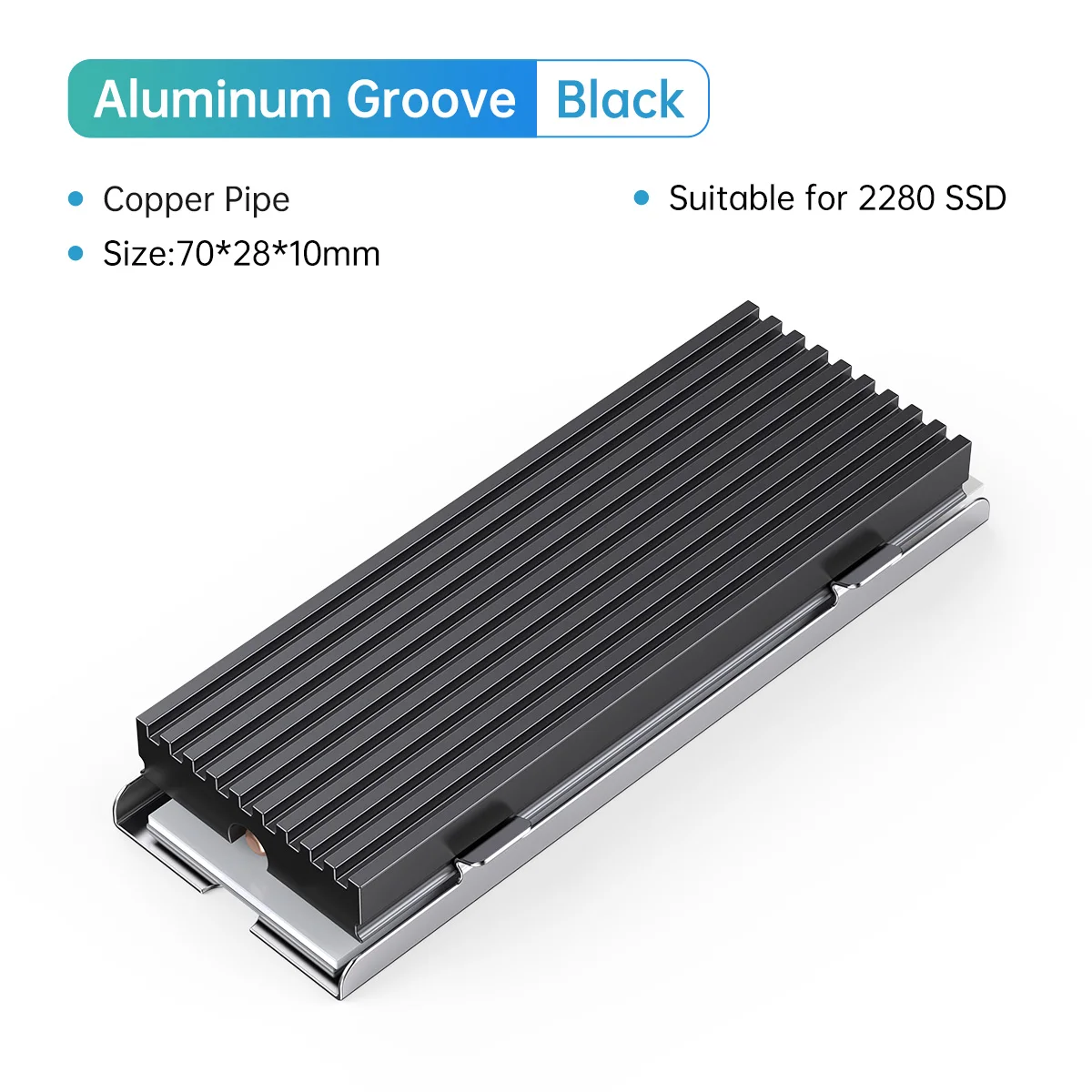

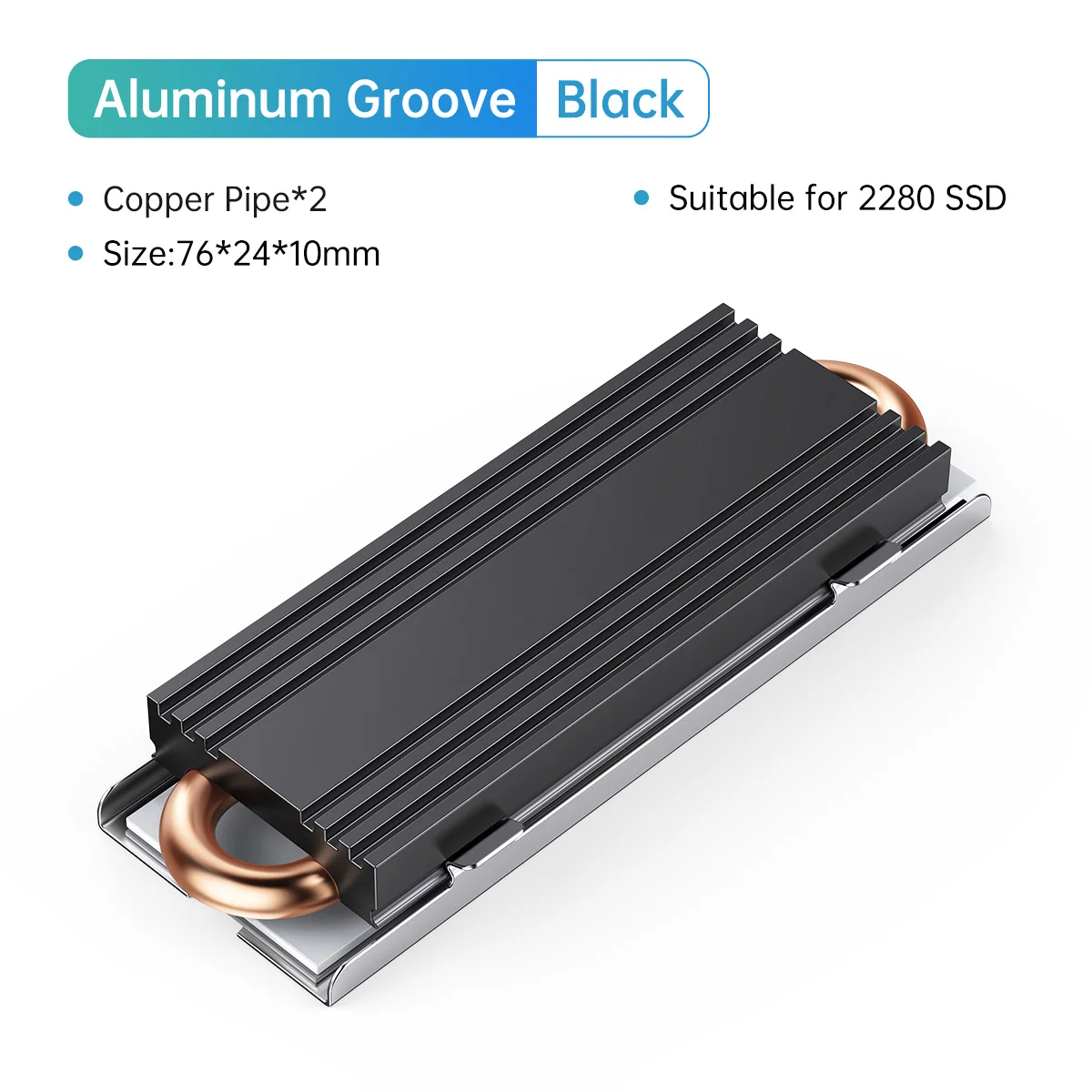

M2HS2&M2HS3

Heat dissipation aluminum +pure copper heat pipe makes the heat dissipation effect better.

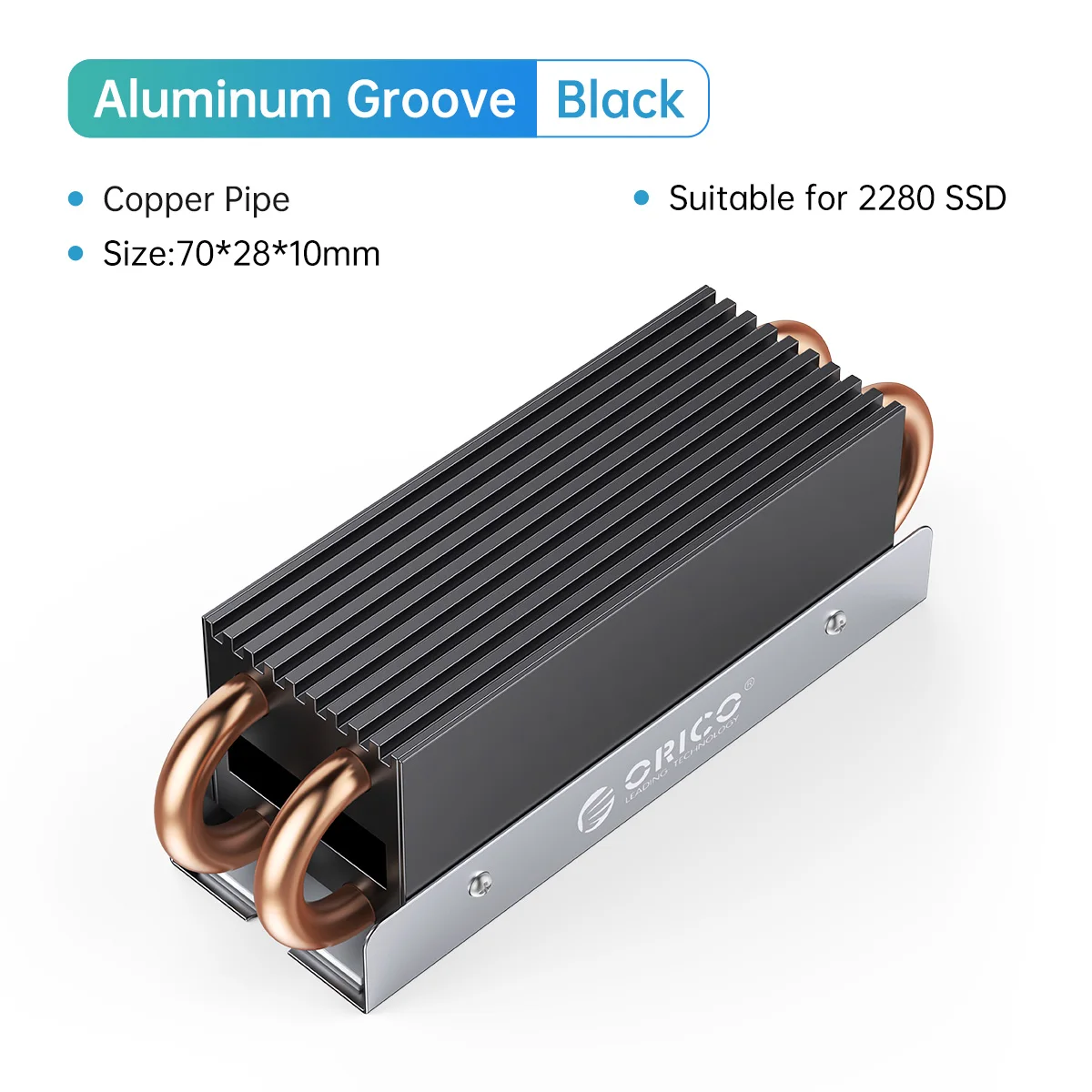

M2HS4

Heat dissipation aluminum +pure copper heat pipe makes the heat dissipation effect better.

Two × 2 Heat pipe, providing better drainage and heat dissipation performance.

Tips

Brass:

It is an alloy of copper and zinc (about 60% copper, about 40% zinc); The intensity is high, and the heat dissipation effect is related to the area (belongs to passive area heat dissipation).

Thermal conductivity: brass 92.1W/mk, pure copper 376.8W/mk

Aluminium :

It is a good conductor of heat, and its thermal conductivity is 3 times greater than that of iron; Its surface is not susceptible to corrosion (passive conduction/area heat dissipation) due to its dense oxide protective film.

Thermal conductivity: aluminum alloy 121-151W/mk, pure aluminum 217.7W/mk

Heat pipe:

heat pipe (pure copper) is a heat transfer element with high thermal conductivity. It transfers heat through the evaporation and condensation of working fluid in the fully closed vacuum tube shell. It has a series of advantages, such as high thermal conductivity, good isotherm, arbitrary change of heat transfer area on both sides of the cold and hot sides, remote heat transfer, temperature control, and so on.
