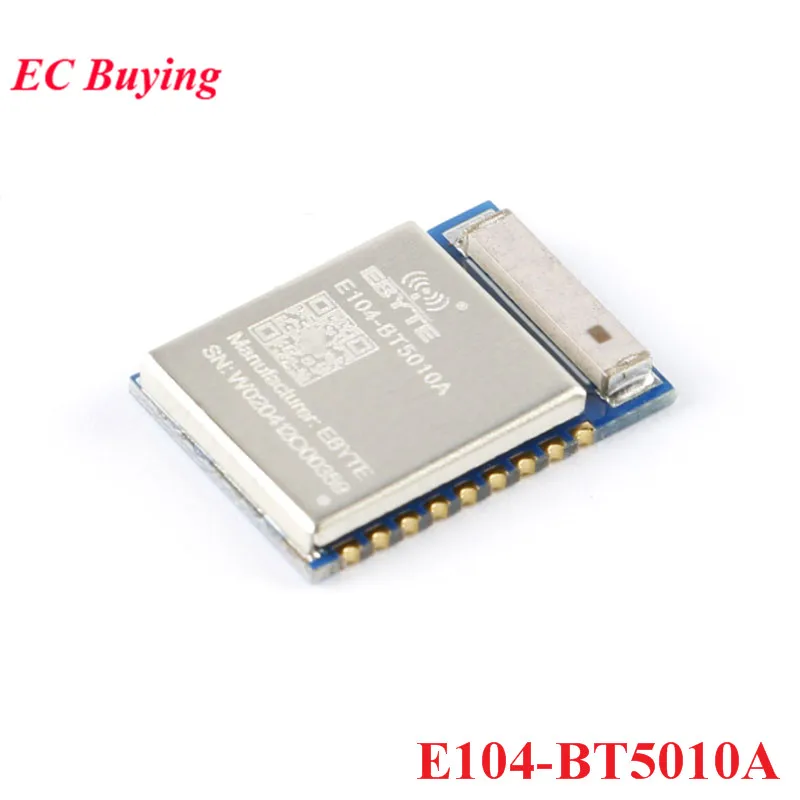

E104-BT5010A nRF52810
RF Parameter
Value
Remarks
Frequency [MHz]
2402~2480 MHz
ISM band
Transmitting power
4 dBm
-
Receiving sensitivity
-96 dBm
Bluetooth-compatible®lowenergymode
Distance
55m
Test condition：clear and open area, antenna gain: 5dBi，@4dBm,antenna height: 2m
Hardware Parameter
Value
Remarks
Size
11.5 * 16 mm
-
Antenna
Ceramic antenna
50Ω Impedance
Communication interface
UART
-
Package
SMD
-
Electronic parameter
Min
Typ
Max
Unit
Remarks
Voltage supply [V]
1.7
3.3
3.6
V
≥3.3 V ensures output power
Communication level [V]
-
3.3
-
V
For 5V TTL, it may be at risk of burning down
Sleep advertising current(default)
-
173
-
uA
default advertising gap is 1s, default 0dBm
Wake-up advertising current(default)
-
8.70
-
mA
default advertising gap is 1s, default 0dBm
Wake-up no advertisingcurrent(default)
-
8.68
-
mA
default connection gap is 500ms,default 0dBm
wake-up connection current(default)
-
8.78
-
mA
default 0dBm
Operating temperature [℃]
-40
-
+85
℃
-

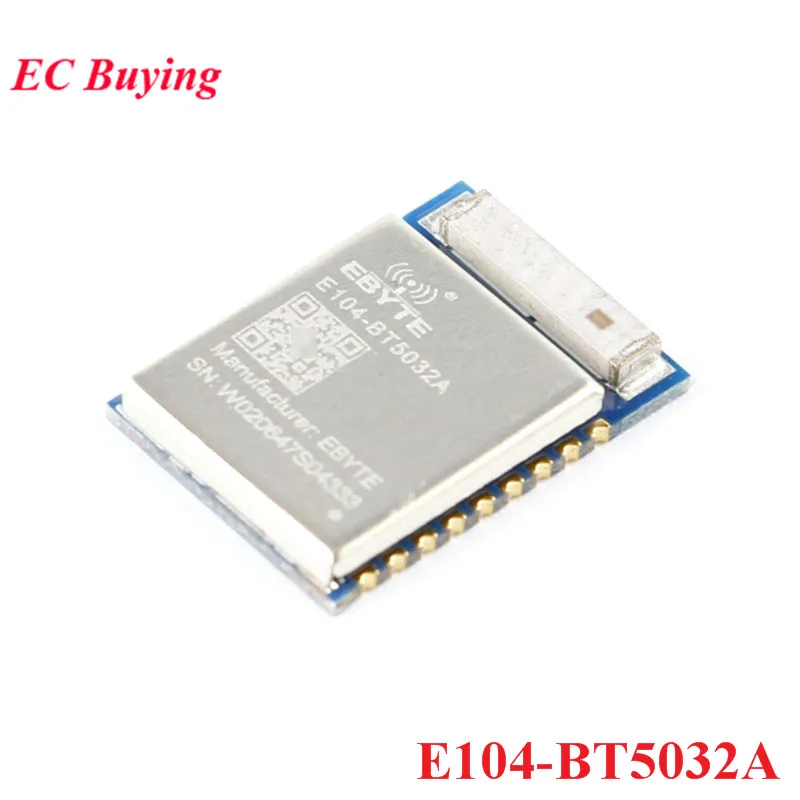

E104-BT5032A nRF52832
RF Parameter
Value
Remark
Frequency [MHz]
2402~2480 MHz
ISM band
Transmitting power
4 dBm
-
Receiving sensitivity [dBm]
-96 dBm
Bluetooth®lowenergymode
Distance
60m
Test condition：clear and open area, antenna gain: 5dBi，@4dBm,antenna height: 2m
Hardware Parameter
Value
Remark
Size
11.6 * 16 mm
-
Antenna
Ceramic antenna
50Ω Impedance
Communication interface
UART
-
Package
SMD
-
Electronic parameter
Min
Typ
Max
Unit
Remarks
Voltage supply [V]
1.7
3.3
3.6
V
≥3.3 V ensures output power
Communication level [V]
-
3.3
-
V
For 5V TTL, it may be at risk of burning down
Sleep advertising current(default)
-
173
-
uA
default advertising gap is 1s
Wake-up advertising current(default)
-
8.70
-
mA
default advertising gap is 1s
Wake-up no advertising current(default)
-
8.68
-
mA
default connection gap is 500ms
wake-up connection current(default)
-
8.78
-
mA
-
Operating temperature [℃]
-40
-
+85
℃
-

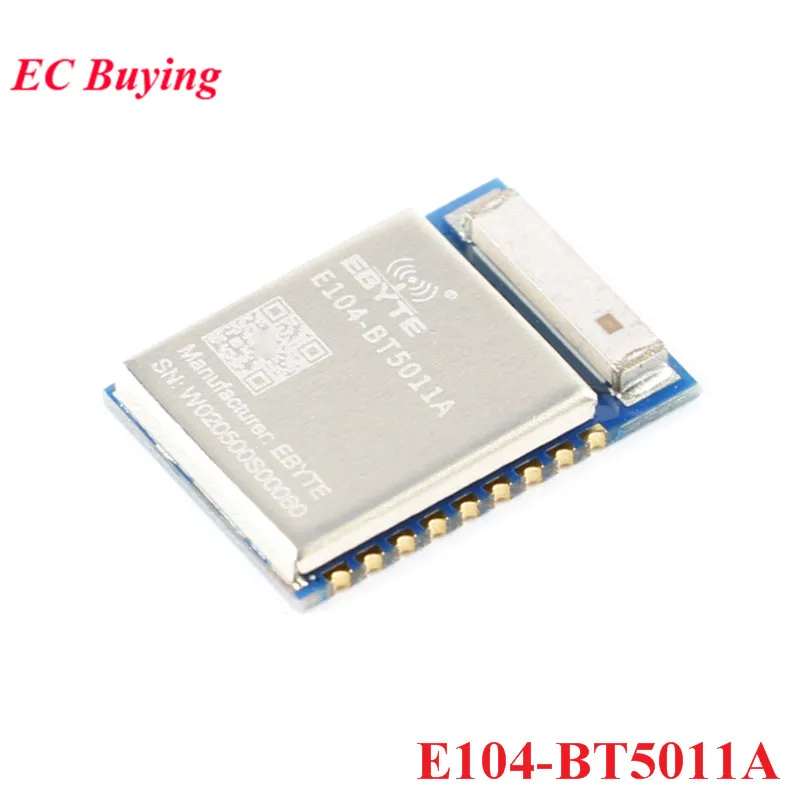

E104-BT5011A nRF52811

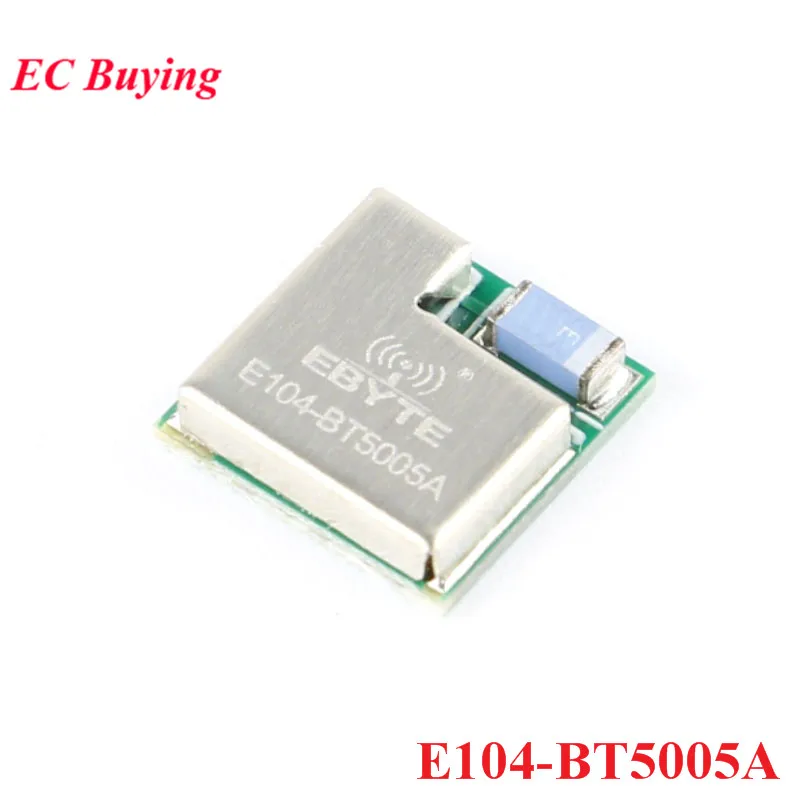

E104-BT5005A nRF52805
