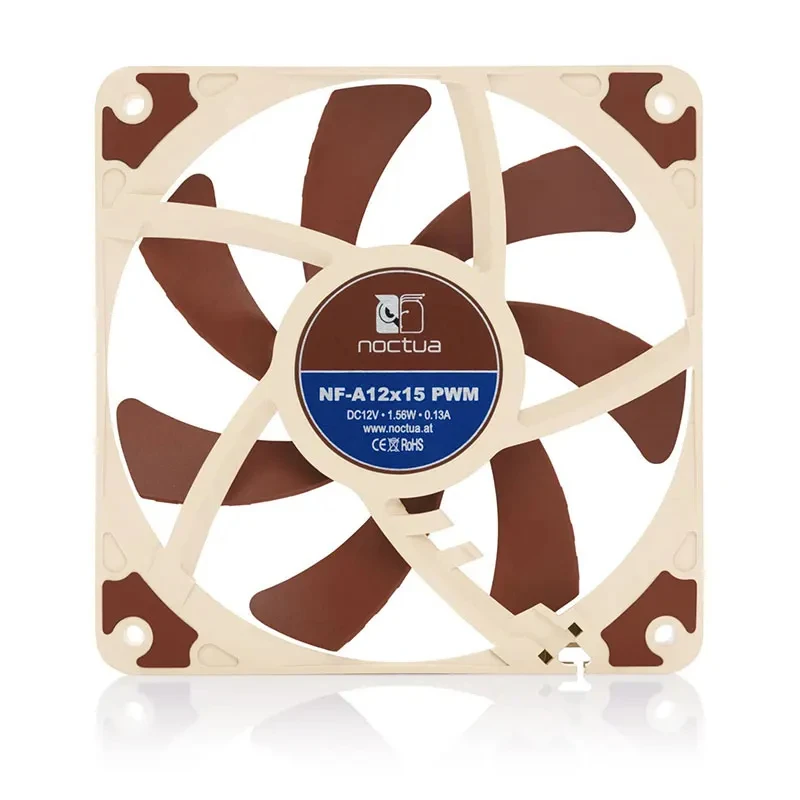

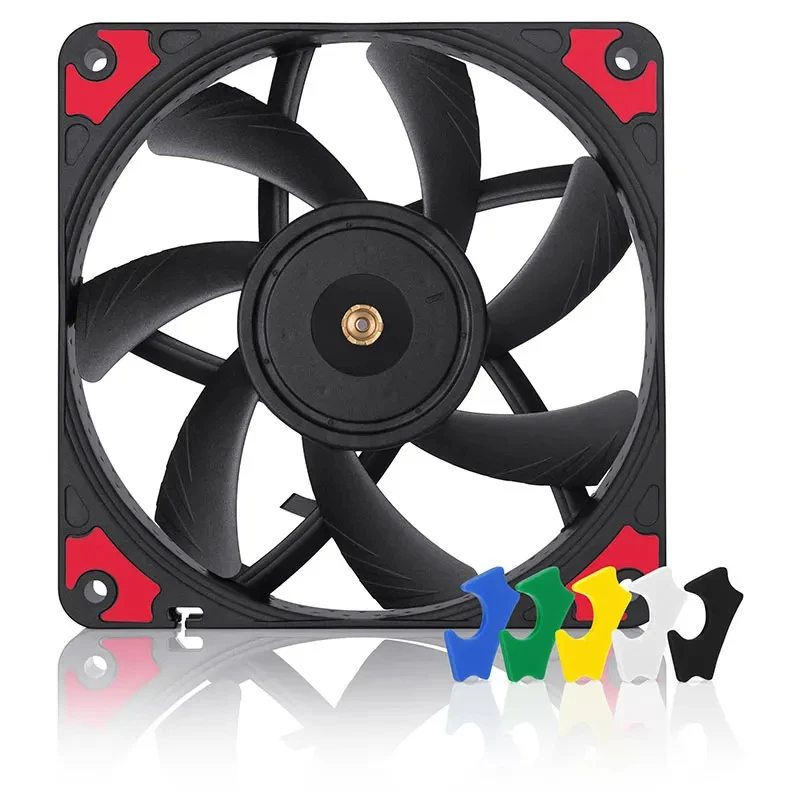

NOCTUA-ventilador de carcasa ultradelgado para ordenador, dispositivo con Control inteligente de temperatura, 12cm, silencioso, 12015 PWM CH.B K.S, color negro, NF-A12X15

Product parameter

Size: 120X120X1 5MM
Installation hole spacing: 105X105MM
Connector: 4-PIN PWM
Axis: SSO2
Blade design: A series flow acceleration channel
Frame technology: AAO (Acoustic Optimization)
Speed (+ /- 10%): 1850 RPM
L.N.A. down speed (+/- 10%): 1400 RPM
Lower limit speed (PWM, +/-20%): 450 RPM
Airflow: 94,2 M3/H
L.N.A. Downstream: 70,8 M/H
Noise: 23,9 DB(A)
Noise under L.N.A.: 16,8 DB(A)
Static pressure: 1,53 MM HO
L.N.A. static pressure: 0,9 MM H2O
Maximum input power: 1,56 w
Input current upper limit: 0,13A
Voltage: 12V
PWM terminal voltage: 5V
Accessories: Low noise adapter (L.N.A.)
4-PINY cable: 30CM extension cord
NA-SAV3 Damping Plastic Nail: Fan Screw

15MM thin design

The thickness of the NF-A12X15 is only 15MM, which is suitable for typical slender fan applications such as low-tower CPU coolers and can replace the standard 120X25MM fan to make a lot of space for the tower cooler or replace the PC chassis fan.

Enhanced metal motor hub

NF-A12X15 uses a reinforced metal motor hub, which is a measure usually applied in high-speed industrial fans to ensure the stability and long service life of NOCTUA fans.

Traffic acceleration channel

The characteristic of NF-A12X15 PWM blade is that air is sucked in by the side flow acceleration channel. By accelerating the air flow in the key outer blade area, it can reduce the flow separation on the suction side and achieve high efficiency and low vortex noise. ,

Integrated anti-vibration pad

The integrated anti-vibration pad made of soft silicone can effectively reduce the transmission of small vibrations when the fan rotates while maintaining full compatibility with all standard mounting systems and fan clips used on the radiator.
