Módulo WiFi 7 BPI-R4-NIC-BE14 con antenas opcionales MediaTek MT7995AV interfaz RISC-V MCU 2 PCIe 3,0 de 32 bits para Banana Pi R4

Feature

1. MediaTek MT7995AV chipset
2. 32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload
3. Embedded SRAM and ROM
4. UART interface with hardware flow control
5. 2 PCIe 3.0 Interface, 2-lane
WLAN

Introduction

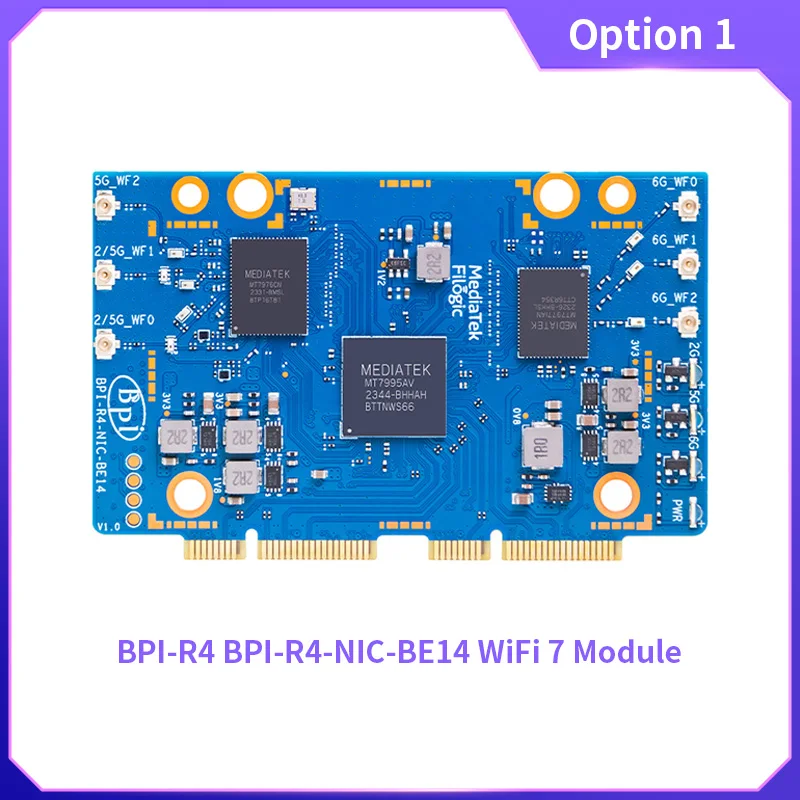

BPI-R4-NIC-BE14 is a 51x82mm WiFi7 module with MediaTek MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.

The optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security, quality of service, and international regulations, giving end users the greatest performance at any time and in any circumstances.

WLAN

1. IEEE 802.11 a/b/g/n/ac/ax/be compliant

2. Frequency band 2.4GHz
Bandwidth: 20 and 40MHz
2T2R

3. Frequency band 5GHz
Bandwidth: 20, 40,80, and 160MHz
3T3R 3ss

4. Frequency band 6GHz
Bandwidth: 20, 40,80,160 and 320MHz
3T3R 3ss

5. Tr-Band Triple Concurrent (TBTC)

6. PHY rate :up to 13700 Mbps/9500 Mbps

7. MU-MIMO TX and RX

8. MU-OFDMA TX and RX

9. STBC, LDPC, TX beamformer and RX beamformee

10. Greenfield mode, mixed mode, and legacy mode

11. Security: WFA WPA, WPA2, WPA3 personal, WPS2.0

12. QoS: WFA WMM and WMM-PS

How to use

https://docs.banana-pi.org/en/BPI-R4/GettingStarted_BPI-R4#_wi_fi7_nic
