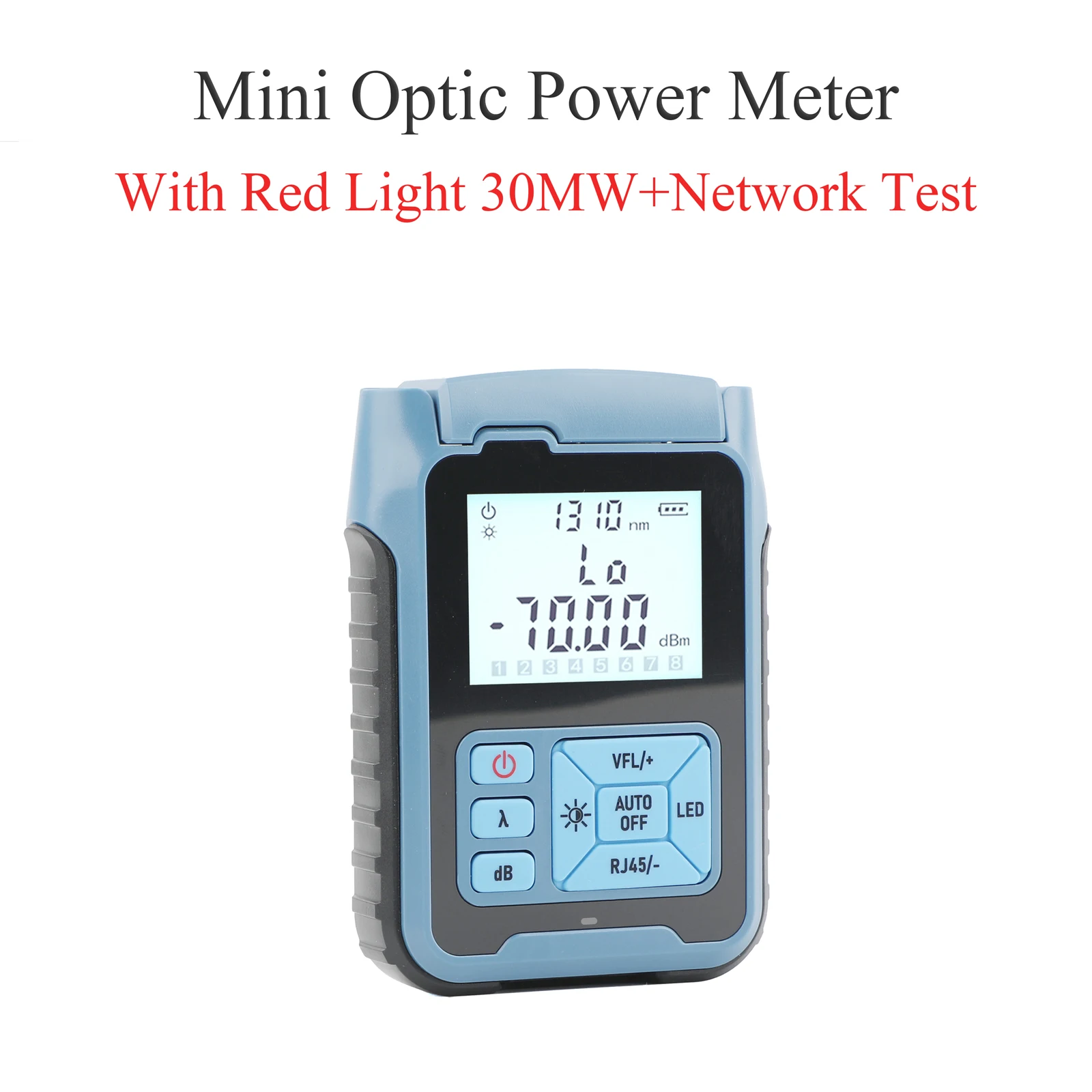

Mini conector multifuncional del probador del medidor de potencia óptica para detección y mantenimiento de fibra óptica con infrarrojos y redes

Type: Mini optical power meter

Connector: FC/FC/ST

Connector type: InGaAS

Measurement power range: -70~+10dBm

Wavelength: 850nm~1625nm

Power supply: Rechargeable lithium battery 800mAh (built-in)

Battery life: Working time is more than 120 hours

Charging port: Type-C

Working temperature: -10~+60℃

Size: 115*80*30mm

Weight: 140g

Function configuration:

Type H: With 5mW red light source; With network test

Type I: With 10mW red light source; With network test

Type J: With 15mW red light source; With network test

Type K: With 20mW red light source; With network test

Type L: With 30mW red light source; With network test

Type M: With 50mW red light source; With network test

Features

This mini optical power meter adopts a handheld design, with a small size, light weight, and is easy to carry.
The data measurement error range is controlled within ±5%.
The red light source and network test function are optional, which is very suitable for optical fiber detection and maintenance.

Brand new, high quality.

Shape and color: the same as shown in the picture

Model optional!

Quantity optional!

Thank you for your patronage and wish you a happy cooperation!

Note: Due to the characteristics of the product and measurement tools, as well as pure manual measurement, the data may have an error of 1%-5%.
