Medidor ESR de LCR-T4, probador de transistores de alta precisión, condensador de triodo de diodo, resistencia, medidor multifunción MOS PNP NPN LCR

LCR-T4 LCD Digital Transistor Tester High Precision Backlight Diode Triode Capacitance ESR Meter Multifunction MOS PNP NPN LCR
Features:
1.Multifunctional Testing: The ESR meter transistor tester accurately measures various parameters of transistors, making it a versatile tool for any electronics enthusiast or professional.
2.User-Friendly Interface: With an easy-to-understand interface, this LCD digital transistor tester simplifies the testing process. Select the mode, insert the component, and quickly obtain precise measurements, streamlining your workflow.
3.Compact & Portable: The backlight diode triode capacitance ESR meter's small form factor ensures it's not only easy to use but also highly portable. Take it wherever your work requires, from different job sites to laboratories, without any hassle.
4.Clear LCD Readout: Results are displayed on a crisp LCD screen of this diode triode capacitor resistor test meter, presenting parameter values and units clearly, facilitating effortless reading and comprehension of test outcomes.
5.Broad Applicability: Designed to test a wide range of transistors, the digital transistor tester ESR meter is also capable of assessing commonly used components such as chargers, filter resistors, and general resistors, enhancing its utility across various applications.

Specification:
Origin: Mainland China
Description:
LCR-T4 graphic multi-function tester Resistance + capacitance + diode + thyristor + inductance + transistor +mos
LCD 12864 LCD display, with backlight, backlight color is usually yellow-green.
9V stacked battery power. If it is powered for a long time, it can use 2 lithium batteries to form 8.4v battery power supply.

Functions:
1. Add the startup voltage detection function
2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including double diodes), thyristors, transistors, resistors and capacitors, etc.
3. Automatically test the pin of the component and display it on the LCD.
4. The positive bias voltage of the emitter transistor can be determined by detecting the amplification factor of the transistor and the base, MOSFET protection diode, etc.
5. Measure the gate threshold voltage and gate capacitance of the MOSFET
6. Display using 12864 LCD LCD (128 *64 characters)
7. Higher test speed, effective component test: within 2 seconds (in addition to large capacitors, the measurement of large capacitors also takes a longer time, the measurement time of 1 minute is normal).
8. One-click operation, boot test, one-click finish.
9. Power consumption in shutdown mode: less than 20 nA
10. Automatic shutdown function can avoid unnecessary waste, save battery energy and improve service life.

Test Scope:
Inductor, capacitor, diode, double diode, mos, triode, thyristor, voltage regulator, LED tube, ESR,
Resistance, adjustable potentiometer
Resistance: 0.1 ohms resolution, Max 50M ohms
Capacitance: 25pf-100,000uf
Inductance: 0.01mh-20H
Product Size: 73.00*60.00*14.00mm/2.87*2.36*0.55inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

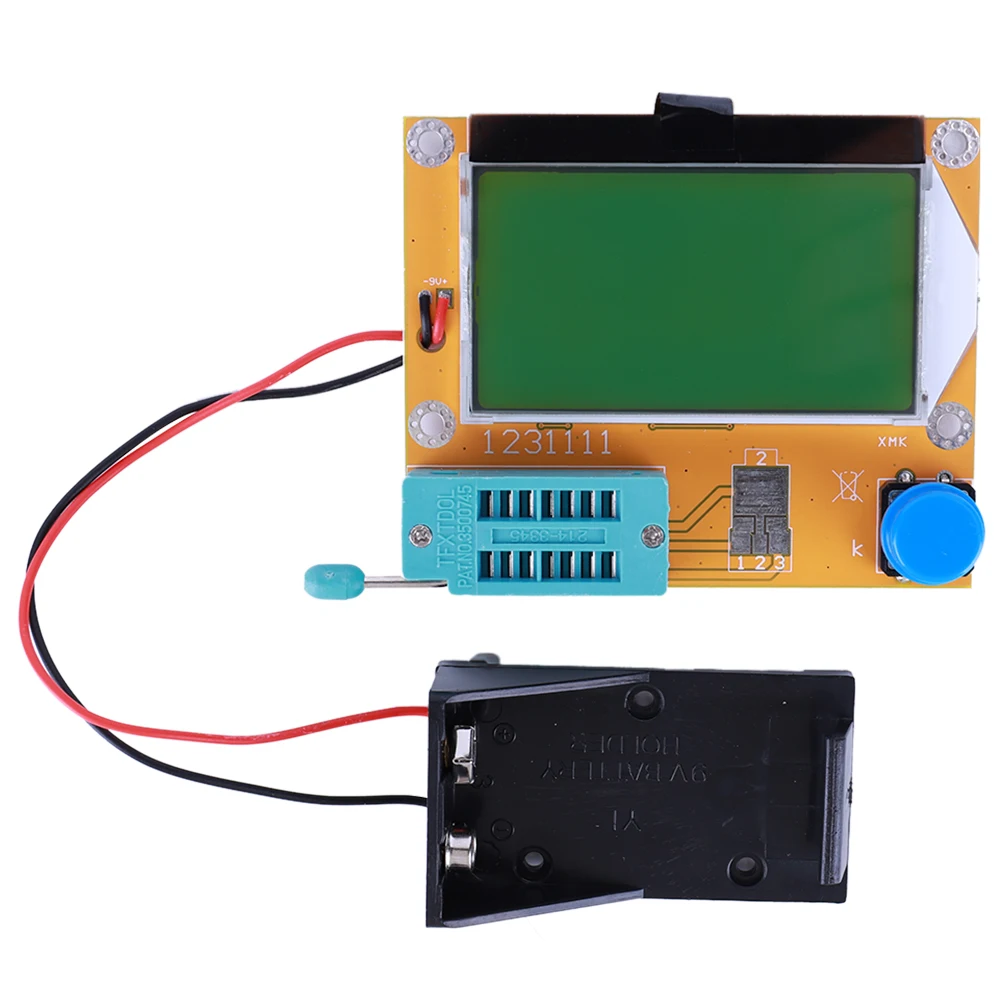

1*ESR Meter Transistor Tester (Battery Buckle)/1*ESR Meter Transistor Tester (Battery Box)
