Description
Black High-Speed Gen4 5U Silver-Plated Shielded M.2 NVMe M-KEY PCIE 4.0 x4 Extender NVME Protocol M2 2260 2280 22110 SSD Adapter

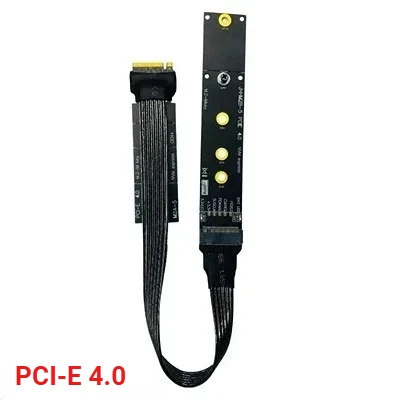

M.2-M-KEY Extension NVME protocol
Product Description:
1.M.2-MKEY PCIE 4.0 GEN4, 8GB\S bidirectional bandwidth.
2.using silver plated shielded cable, double layer line, thickness of 2mm, width of 12mm.
3.PCIE 4.0 devices are supported and downwardly compatible with PCIE 3.0.
4.gold finger sinking process, using high density and low impedance circuit board.
5.Gold plated with LOTES connector H3.2mm.
6.the cable can be bent and folded, suitable for small space installation.
7.support nvme 2230, 2242, 2260, 2280, 22110 SSD, do not support SATA.
8.PCB 0.8mm thickness, shear, impedance control 85Ω.
High-Speed 64Gbps Gen4 30AWG Silver-Plated Shielded M.2 NVMe M-KEY PCIE 4.0 x4 Extender NVME Protocol M.2 22110 SSD Adapter Wire

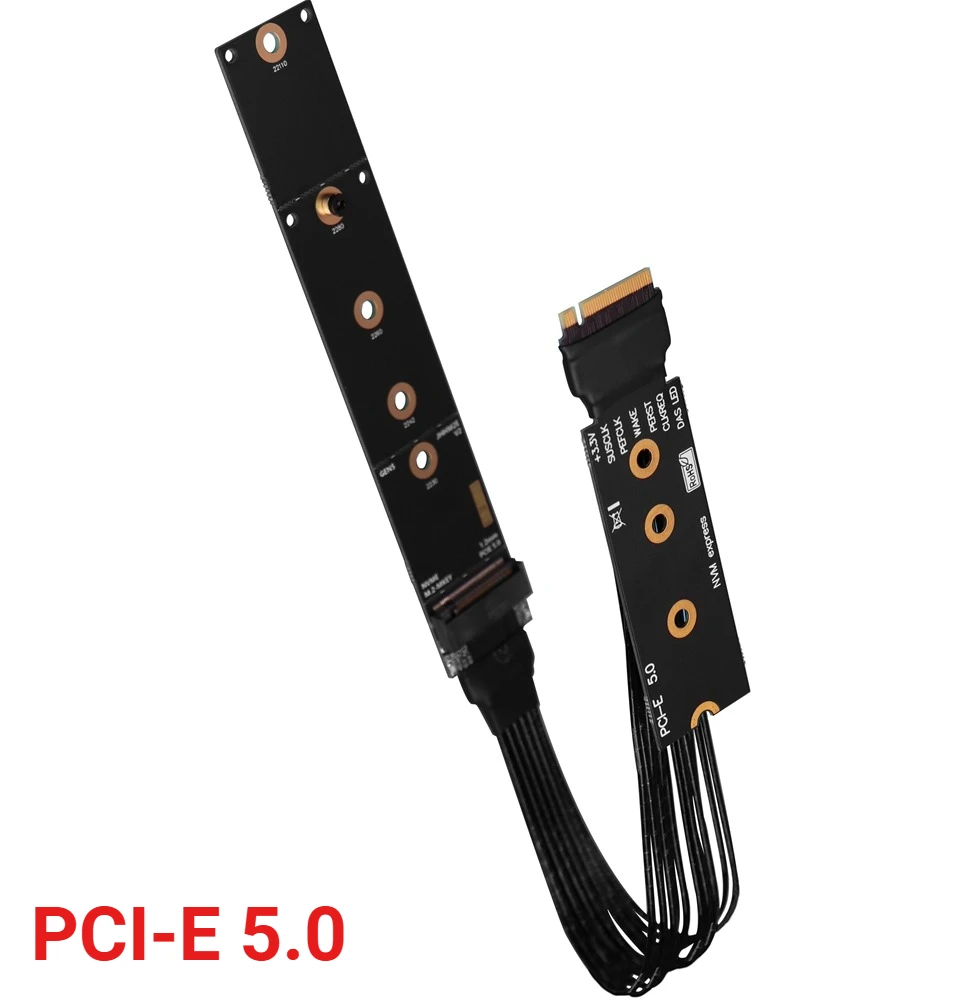

PCIE 5.0 M.2-M-KEY Extension NVME protocol
Product Description:
M.2-Mkey extension cable, supporting 2280 and 22110 solid-state drive extension, 128GBPS.
2. Solid-state drives that only support the M.2-nvme protocol only support the M.2-Mkey interface.
3. The M.2 gold finger adopts the gold plating process and supports 2280 holes.
4. The maximum bandwidth speed is PCIE 5.0 X4 GEN5, and it is backward compatible with PCIE 4.0 and PCIE 3.0.
5. It adopts double-layer shielded cables, silver-plated high-speed flat cables and PCIE5.0 transmission.
6. Hot plugging is not supported.
7. There is also a loose wire version, which is more flexible.
M.2-M-KEY Extension NVME protocol
Product Description:
1.M.2-MKEY PCIE 4.0 GEN4, 8GB\S bidirectional bandwidth.
2.using silver plated shielded cable, double layer line, thickness of 2mm, width of 12mm.
3.PCIE 4.0 devices are supported and downwardly compatible with PCIE 3.0.
4.gold finger sinking process, using high density and low impedance circuit board.
5.Gold plated with LOTES connector H3.2mm.
6.the cable can be bent and folded, suitable for small space installation.
7.support nvme 2230, 2242, 2260, 2280, 22110 SSD, do not support SATA.
8.PCB 0.8mm thickness, shear, impedance control 85Ω.
High-Speed 64Gbps Gen4 30AWG Silver-Plated Shielded M.2 NVMe M-KEY PCIE 4.0 x4 Extender NVME Protocol M.2 22110 SSD Adapter Wire
PCIE 5.0 M.2-M-KEY Extension NVME protocol
Product Description:
M.2-Mkey extension cable, supporting 2280 and 22110 solid-state drive extension, 128GBPS.
2. Solid-state drives that only support the M.2-nvme protocol only support the M.2-Mkey interface.
3. The M.2 gold finger adopts the gold plating process and supports 2280 holes.
4. The maximum bandwidth speed is PCIE 5.0 X4 GEN5, and it is backward compatible with PCIE 4.0 and PCIE 3.0.
5. It adopts double-layer shielded cables, silver-plated high-speed flat cables and PCIE5.0 transmission.
6. Hot plugging is not supported.
7. There is also a loose wire version, which is more flexible.
The speed of directly plugging an SSD into the motherboard
The speed of inserting the adapter cable
