M.2 para NVMe a PCI Express 4.0 X4 Cable elevador de extensión PCIE 4.0 x4 Gen4 Extensor de velocidad completa 90 ° Adaptador SSD Socket GPU M2 2280

ADT-Link M.2 NVMe to PCI Express x4 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe extension cable

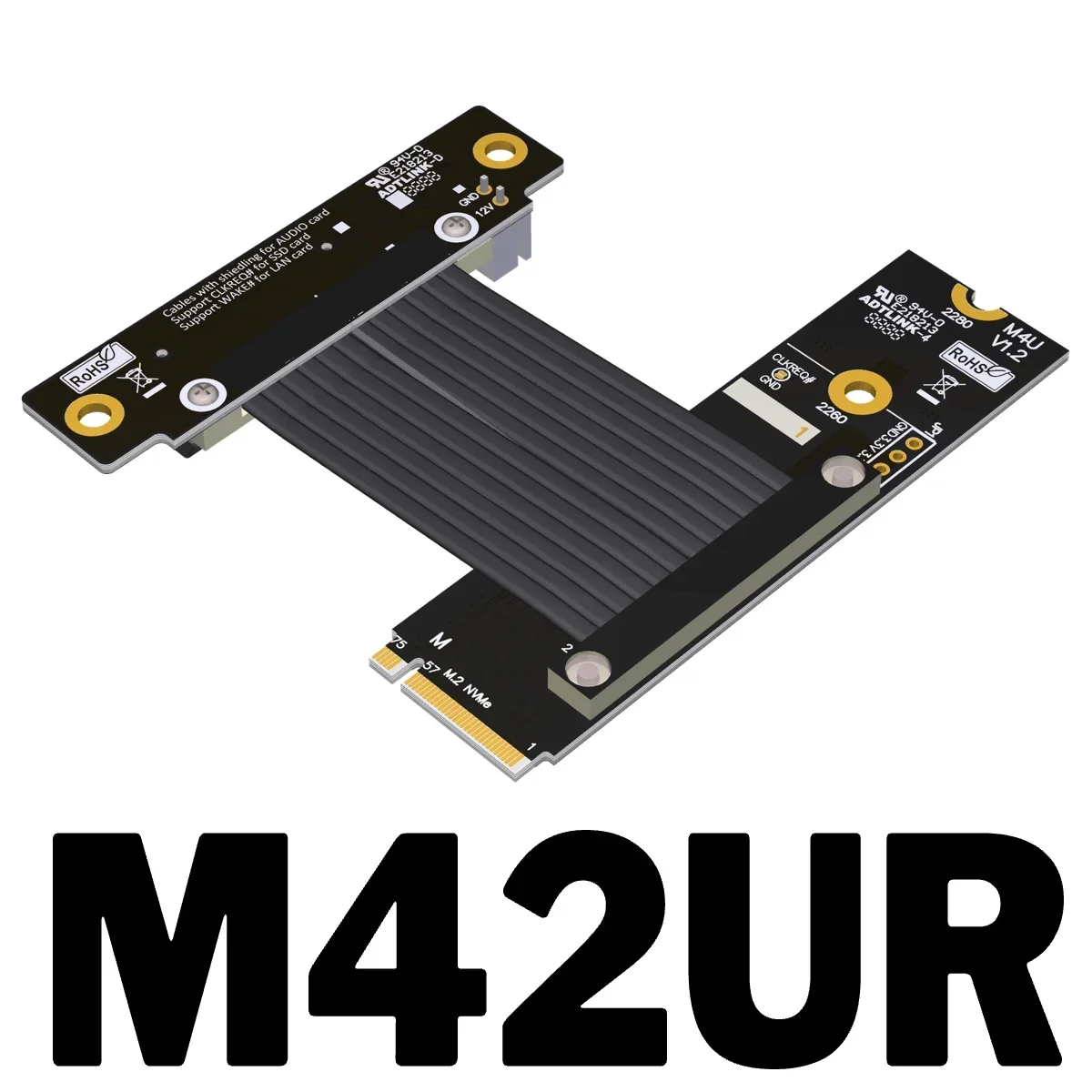

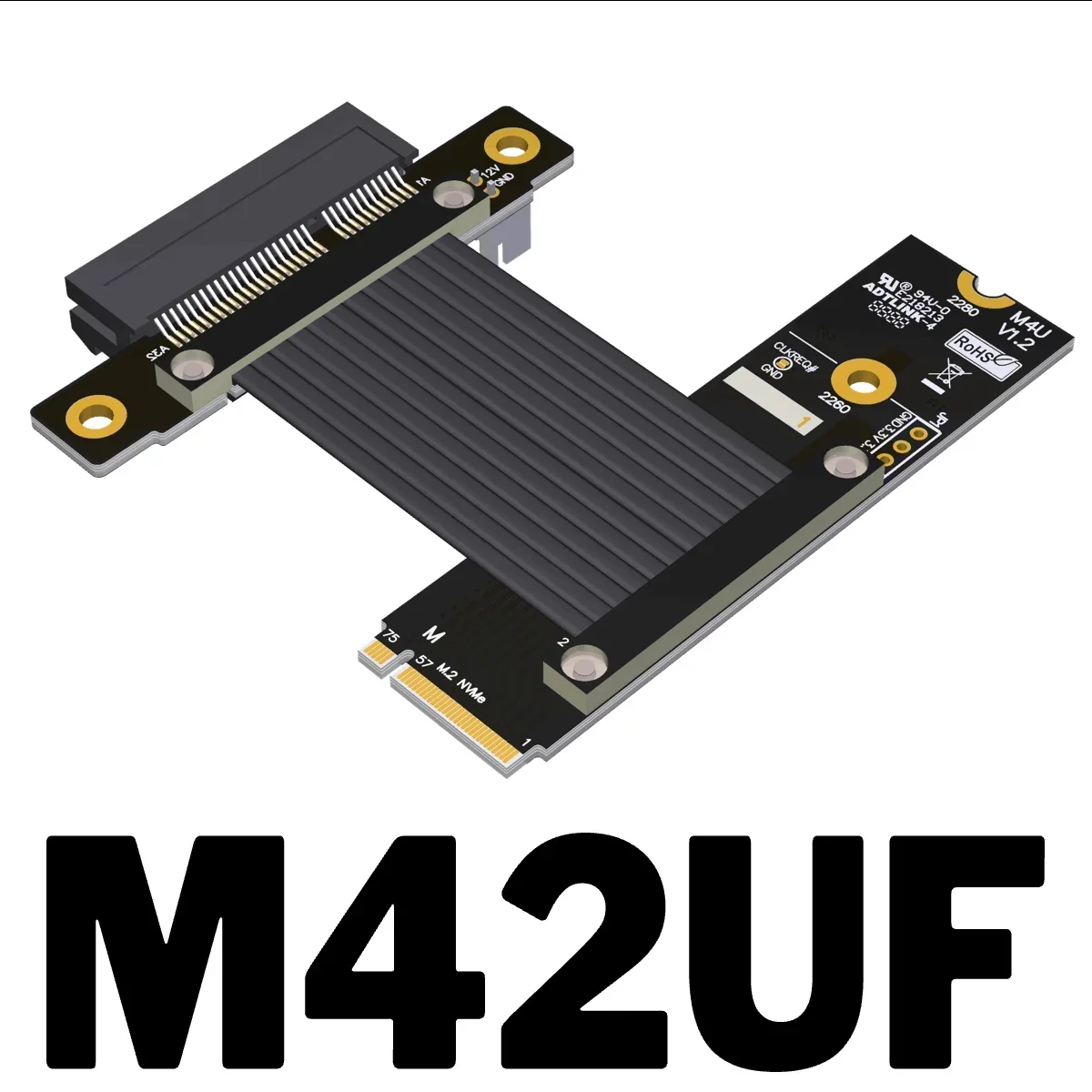

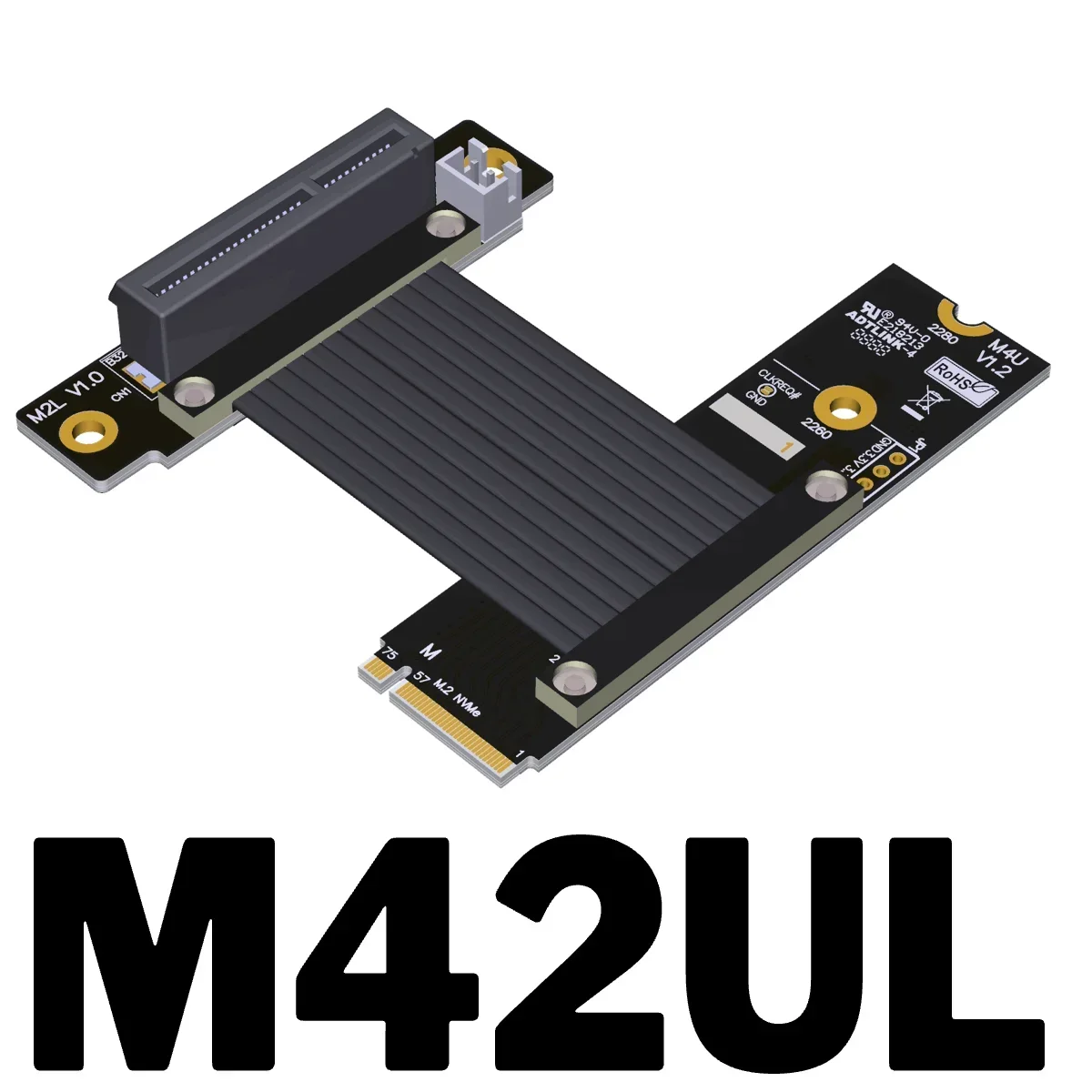

Product model:M42UF, M42UL,M42UR

Transferspeed:PCIe4.0 x4, gen4, 64G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized

Application: PCIe x4 USB, wireless LAN, SSD, Capture cards to M.2(ultra SSD, M-key)extension

Part-Number Description:

M42: M.2 NVMe to x4

UL: turn 90 degree upright right angle ; UF: turn 180 degree splint vertical

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

:
