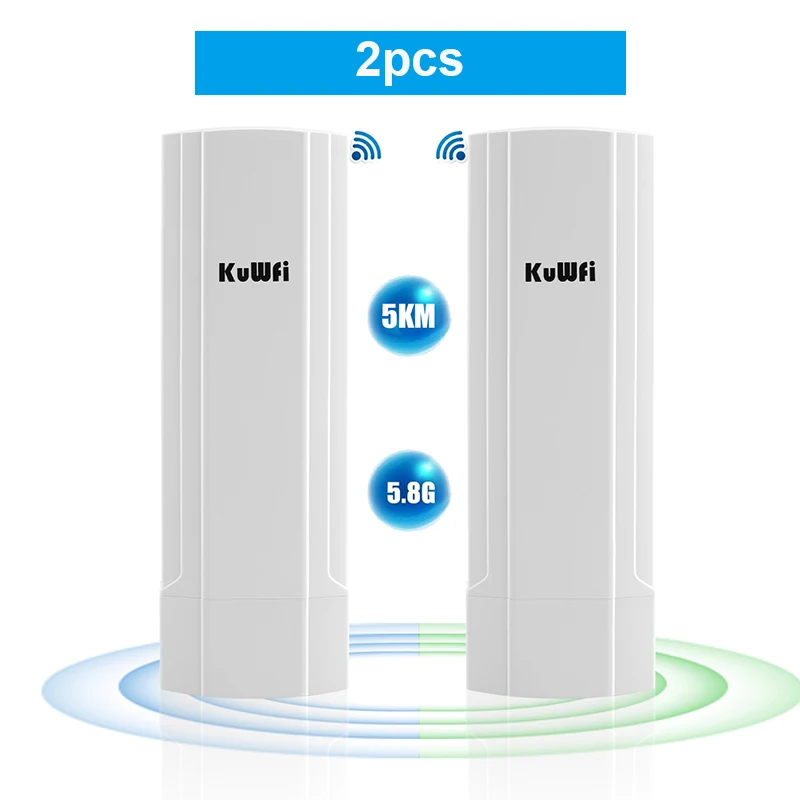

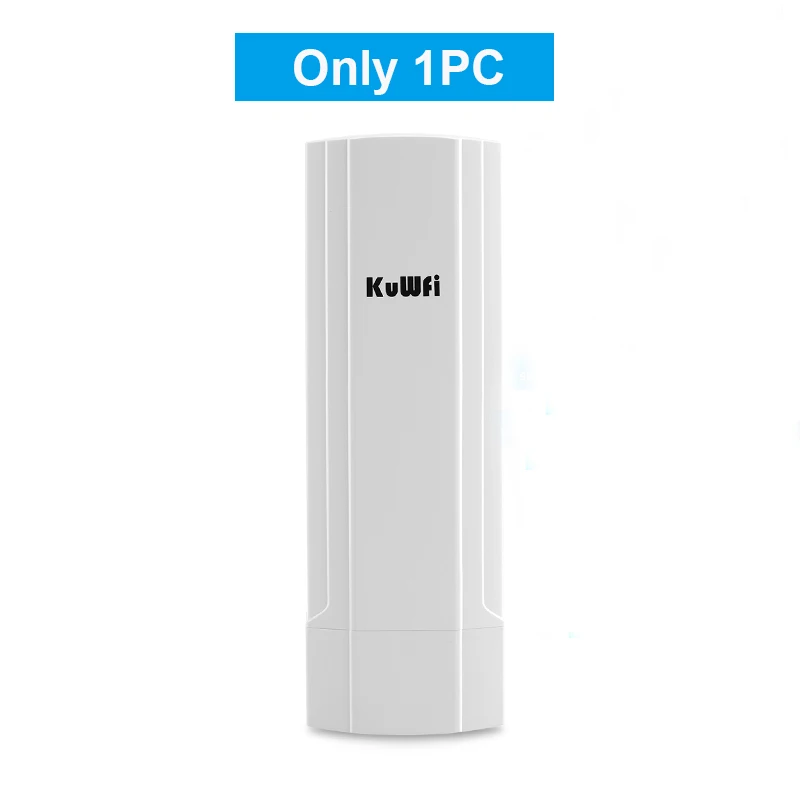

KuWFi-enrutador inalámbrico Gigabit para exteriores, repetidor WIFI Wave2 de 5,8G, puente WIFI, extensor de 3-5KM, antena de 14dBi, 48V POE

Model

CPE120

CPE200

CPE451

CPE512


Suitable for

Outdoor&Indoor

Outdoor&Indoor

Outdoor&Indoor

Outdoor&Indoor

Outdoor Protection Level

IP65

IP65

IP65

IP65

WiFi band

2.4Ghz

5.8Ghz

5.G

5.8G

Point to Point

1KM

1-3KM

1-2KM

3-5KM

Wireless Rate

300Mbps

900Mbps

450Mbps

900Mbps

Working Mode

AP Mode/Repeater Mode

AP Mode/Repeater Mode

AP Mode/Repeater Mode

AP Mode/Repeater Mode

Antenna

Built-in 8dBi Antenna

Built-in 12dBi Antenna

Built-in 8dBi Antenna

Built-in 14dBi Antenna

WAN/LAN Port

1x 10/100M WAN
1x 10/100M LAN

1x 10/100M WAN
1x 10/100M LAN

1x 10/100M WAN/LAN

1x 10/100/1000M WAN
1x 10/100/1000M LAN

Working Temperature

-30℃-55℃

-30℃-55℃

-30℃-55℃

-30~45℃

Power Supply

24V/0.5A POE
Power Adapter

24V/0.5A POE
Power Adapter

24V/0.5A POE
Power Adapter

48V/0.5A POE
Power Adapter

Product Description :

1.Outdoor wifi bridge is an 11ac Wave2.0 standard high power industrial 5.8G outdoor CPE. It comply with the next generation 802.11ac Wi-Fi standard, MU-MIMO, Qualcomm Chipset, combined 867Mbps high speed in 5.8G, equipped Gigabit RJ45 port and PoE support

2.High Power, More Wifi Coverage Range
512AC RF power up to 25dBm, equipped with 14dBi panel antenna, the point to point wireless range up to 3-5KM distance.

3.867Mbps Data Rate & Gigabit WAN/LAN Ports
512AC features 802.11ac Wi-Fi and 2*2 MIMO technology, 867Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.

4.5GHz frequency, more channels, lower latency, higher stability
512AC with 4.92GHz to 5.92GHz frequency range, avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

5.Power over Ethernet
512AC has integrated active 48V Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Product Detail:
Chipset:Qualcomm QCA9563+QCA9886+QCA8334
Standard:802.11ac/a/n, MU-MIMO technology
Memory 128MB DDR2 RAM Flash 16MB
Interface1 * 10/100/1000Mbps RJ45 LAN Port
1 * Reset button
1 * DC button
1 * AP/Repeater operation mode switch
Antenna:Build in 14dBi MIMO Panel Antenna
Power consumption 48V PoE
Frequency 5GHz: 802.11a/ac
Environment Operating Temperature: -30~45 ℃
Storage Temperature: -40~70 ℃
Humidity: 5%~95% non-condensing;

Applications Case

I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
