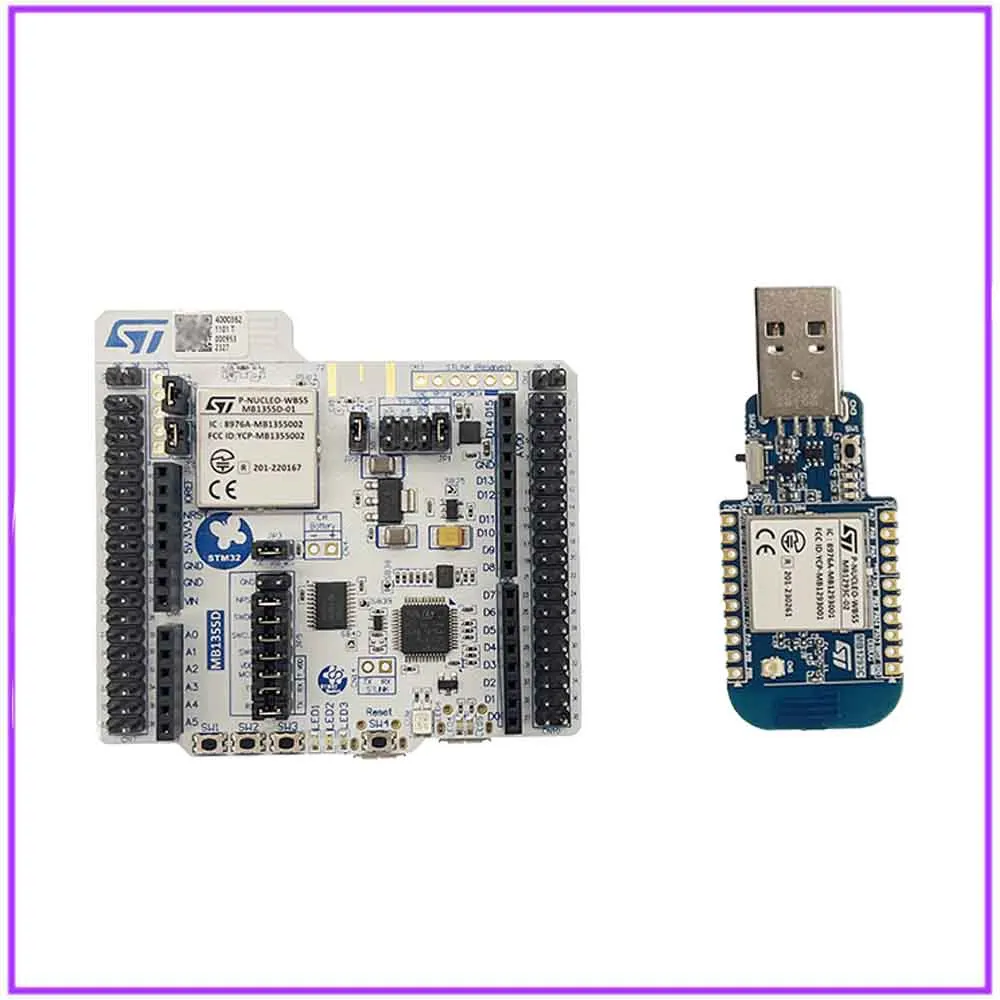

Original P-NUCLEO-WB55 Development Board Kit USB dongle and Nucleo-68 with STM32WB55 MCU
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.
The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.
The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
NUCLEO-L152RE is a Cortex-M3 development board designed for the high-performance and low-power STM32L1 series by ST, which supports Arduino.
The development board is based on the STM32L152RE design. The development board also integrates the ST-LINK/V2 emulation downloader (but only provides the SWD interface), eliminating the trouble of purchasing an emulator or downloader separately. And with Arduino interface, it is convenient for users to connect with Arduino.
ST provides a wealth of sample programs, allowing you to get started with STM32L1 microcontrollers more quickly. Let's unleash your creativity!
Features
STM32 microcontroller with LQFP64 package
STM32L152RE
Two types of extension resources
Arduino Uno Revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
USB VBUS or external source(3.3 V, 5 V, 7-12 V)
Power management access point
Three LEDs
USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB
Virtual Com port
Mass storage
Debug port
Comprehensive free software HAL library including a variety of software examples
Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs
