HealthyPi 5

Features & Specifications

HealthyPi 5 Specs

• RP2040 dual-core ARM Cortex M0 microcontroller

• ESP32-C3 RISC-V module with BLE and Wi-Fi support

• MAX30001 analog front end for ECG and respiration measurement

• AFE4400 analog front end for PPG and SpO2

• MAX30205 temperature sensor via onboard Qwiic/I²C connectors

• 40-pin Raspberry Pi HAT connector (also used to connect our Display module)

• 1x USB Type-C connector for communication with a computer and programming the RP2040

• 1x USB Type-C connector for programming and debugging the ESP32 module

• Onboard MicroSD card slot

• On-board Li-Ion battery management with charging through USB

• Built-in power-path management with automatic switching between battery and USB power

• Dimensions: 75.5 x 56 x 17 mm

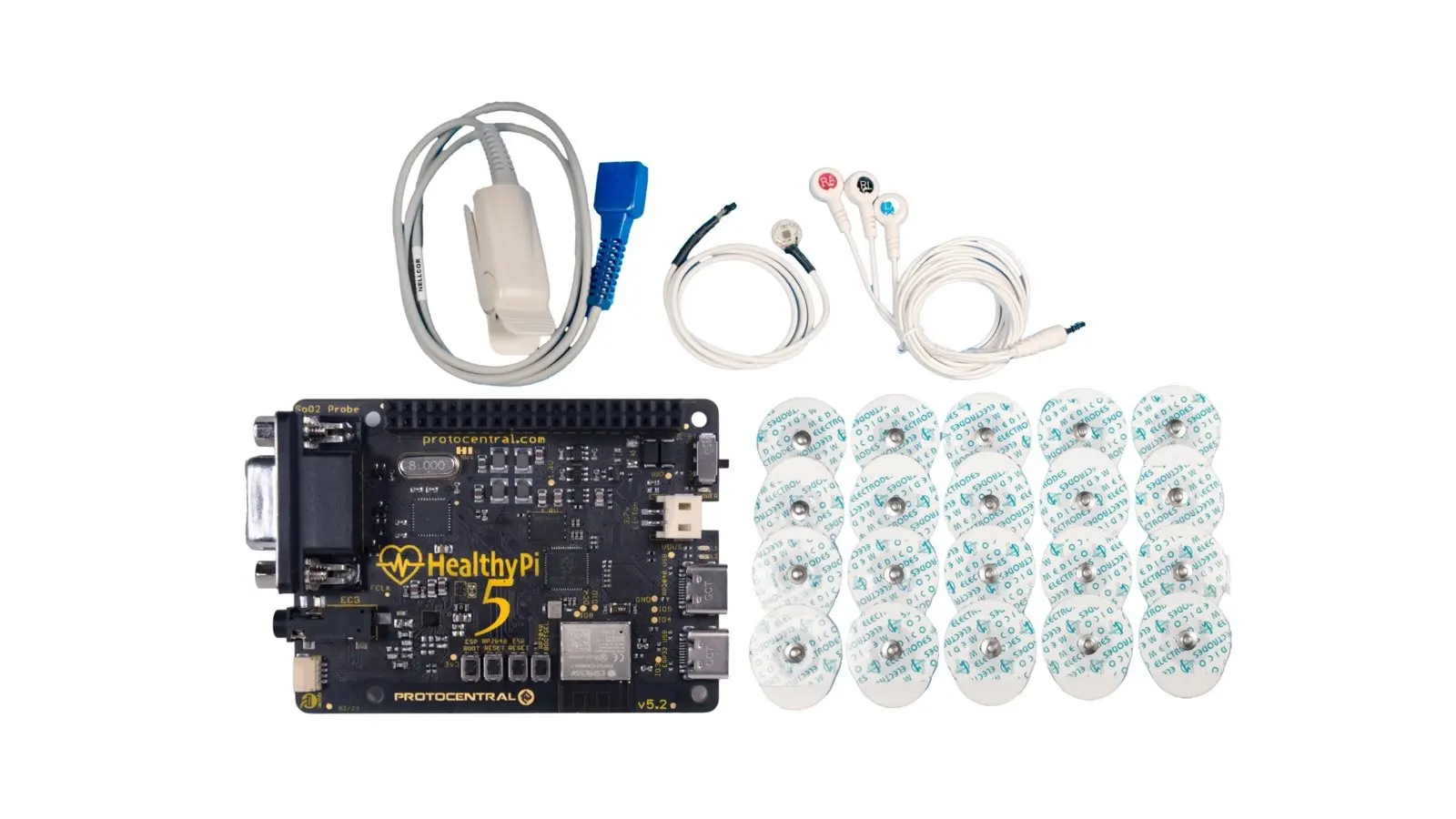

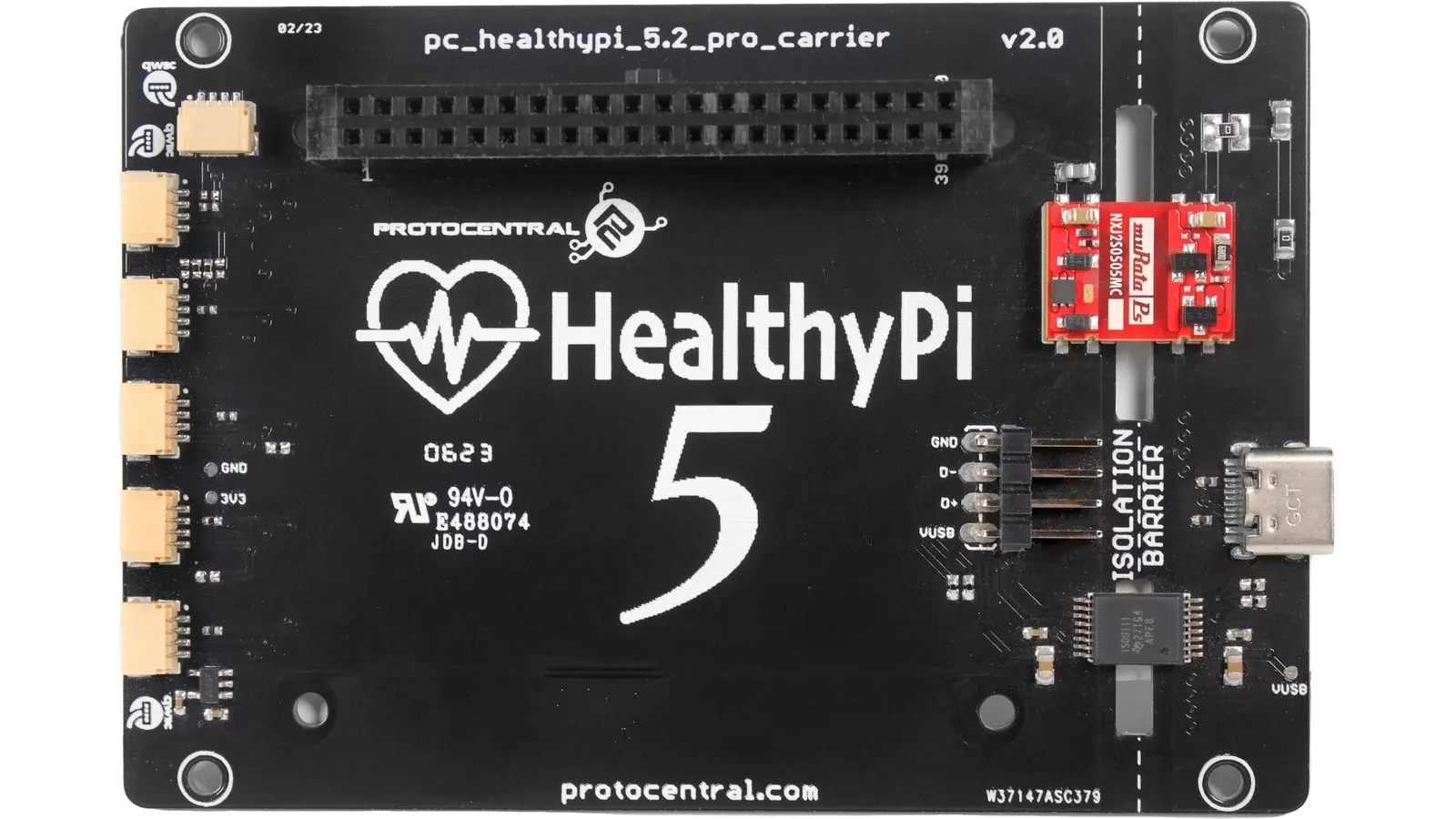

HealthyPi 5 Carrier Specs

• USB power isolation (IEC 60101-1 1kV rated)

• USB data-line isolation (IEC 60601-1 5 kV rated)

• Five ESD-protected Qwiic ports for expansion

• Interface to HealthyPi 5 through USB port and 40-pin header

• Dimensions: 100 x 68 x 12 mm

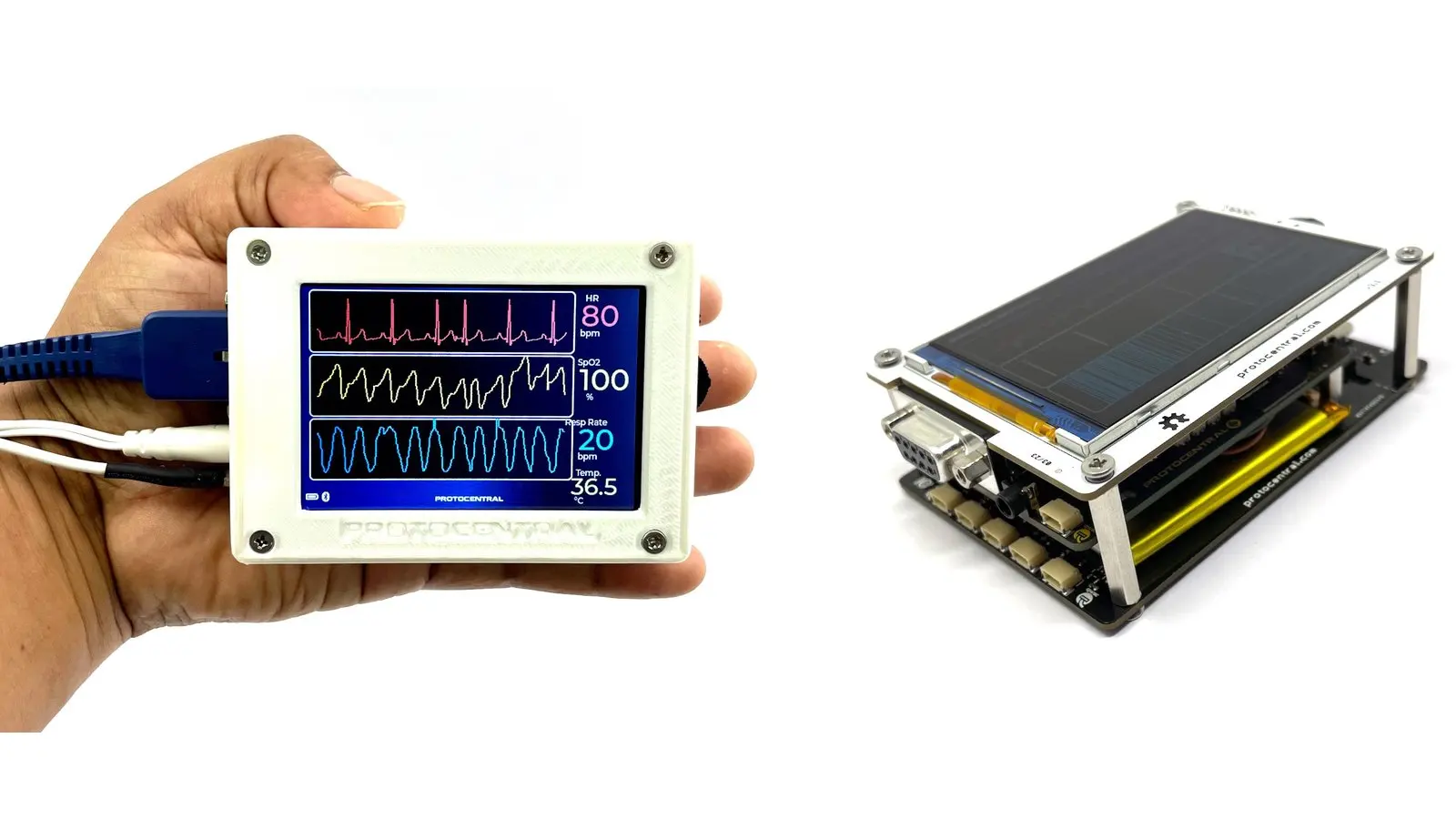

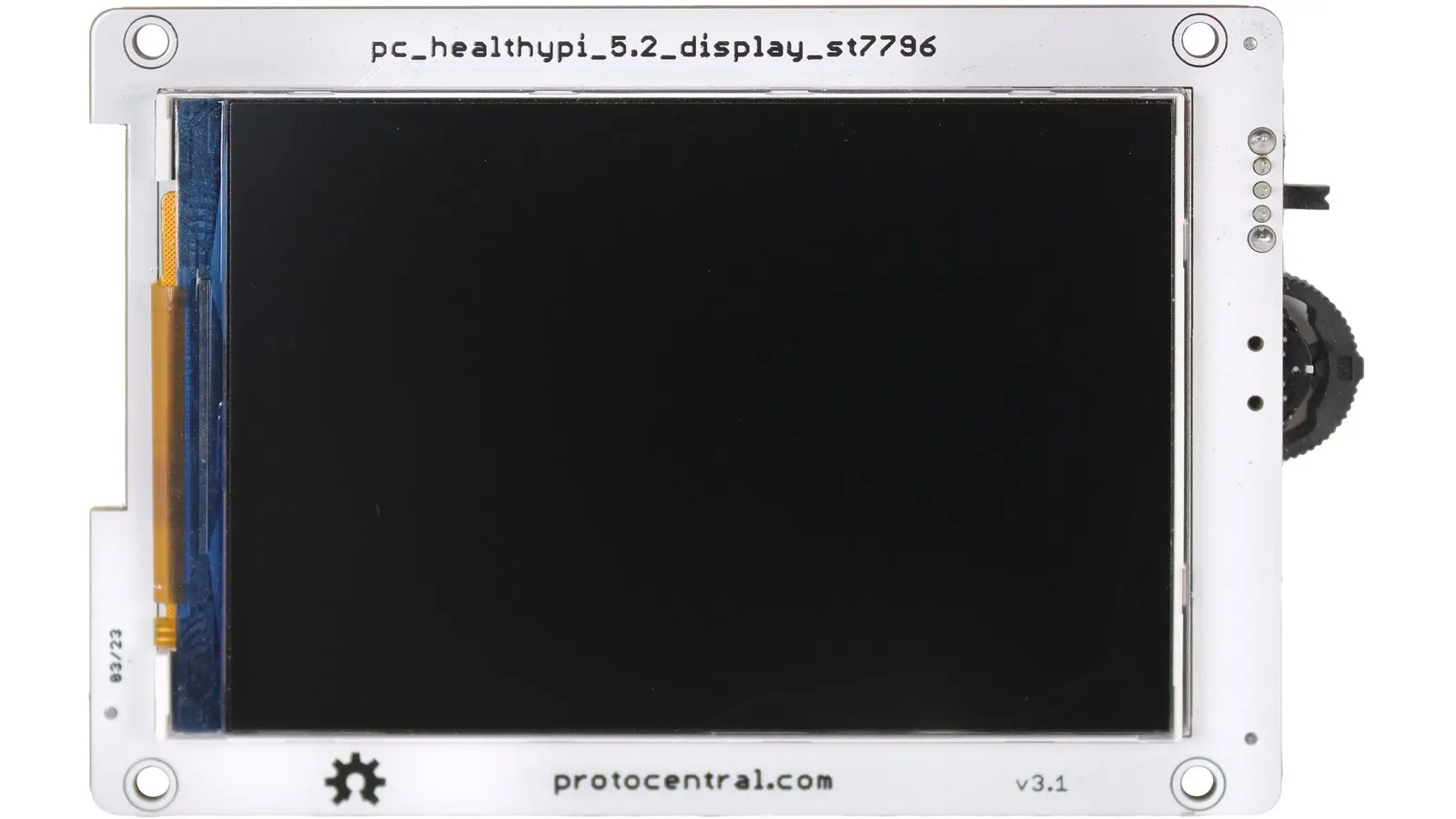

HealthyPi 5 Display Specs

• 3.5”, 480*320 full-color TFT LCD for to visualize signals and display processed data

• Tactile 3-way navigation switch for robust and simple use

• Dimensions: 98 x 68 x 13.5 mm

Room for Expansion

The HealthyPi 5 Carrier board is Qwiic compatible. Sparkfun Electronics introduced the
