FR120N LR7843 AOD4184 D4184 tubo MOSFET aislado MOS Módulo de repuesto relé 100V 9.4A 30V 161A 40V 50A placa

Module Features:

1. With optocoupler isolation, the control signal is isolated from the power of the controlled equipment, which greatly improves the rigid interference

2. Compatible with MCU and Arduino lamp control board, 3V or 5V signal

3. Start at high level, stop at low level, PWM speed regulation

4.Widely used to control motor start-stop, solenoid valve and other tributary equipment

5. There are various specifications of MOS tubes to provide options.

E.g

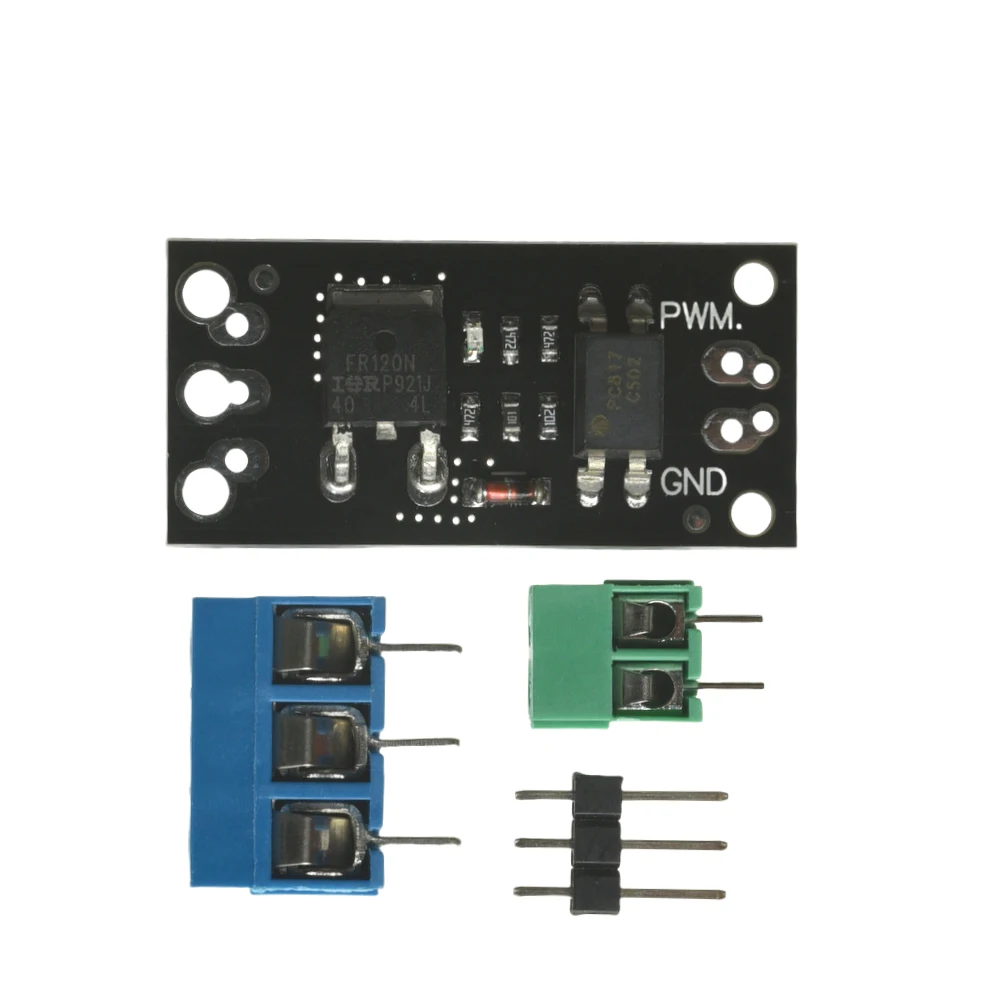

FR120N: 100V 9.4A

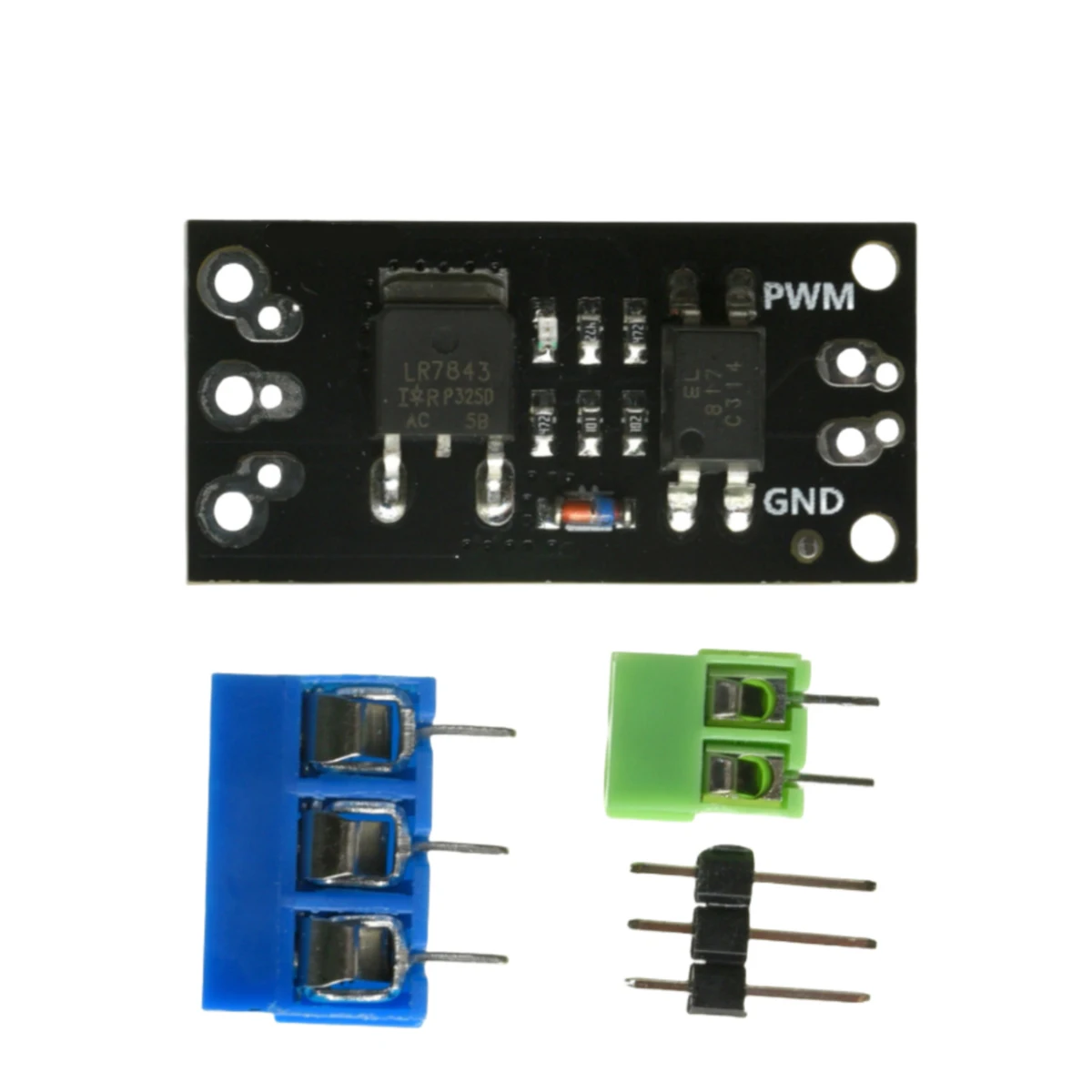

LR7843: 30V 161A

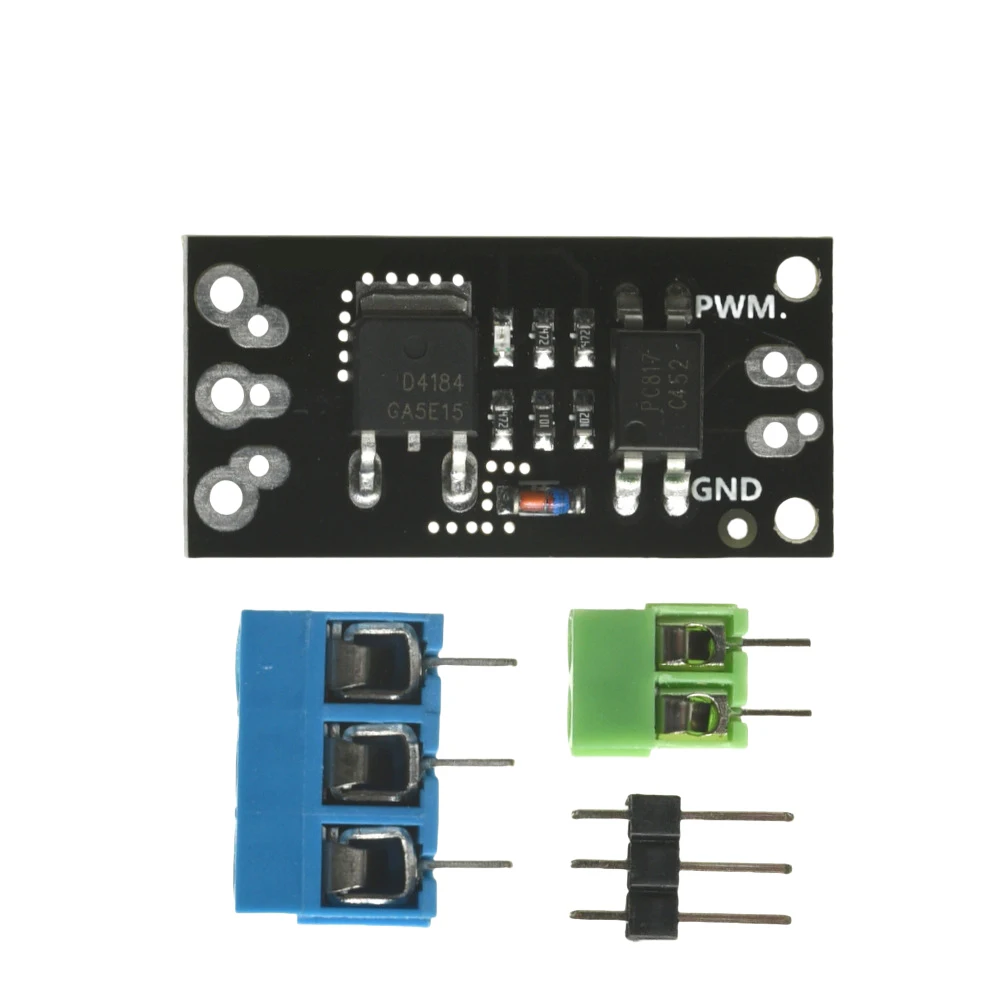

AOD4184: 40V 50A

6, the signal input side can be soldered to the terminal or pin, compatible with breadboard

7.The output can be soldered to the terminal or directly to the wire

8. Module size: 23mm X 16mm, there are two 2mm diameter screw holes, and the hole spacing is 8mm.
