Extensor óptico KVM 4K HDMI USB 20KM TCP/IP KVM extensor HDMI sobre SC FC fibra USB 2,0 para teclado ratón PC interruptor con IR

HDMI USB KVM Optical Extender 4K 20KM TCP/IP KVM Extender HDMI over SC FC Fiber USB 2.0 sharing keyboard mouse Switch With IR

Noted:the link have two version ,one is 4k@30hz,other with 1080p ,but the description for 4k@30hz,please contact us if you have any problem !!!!

Introduction

The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Transmits HD video and audio signals up to 20KM over a single Fiber

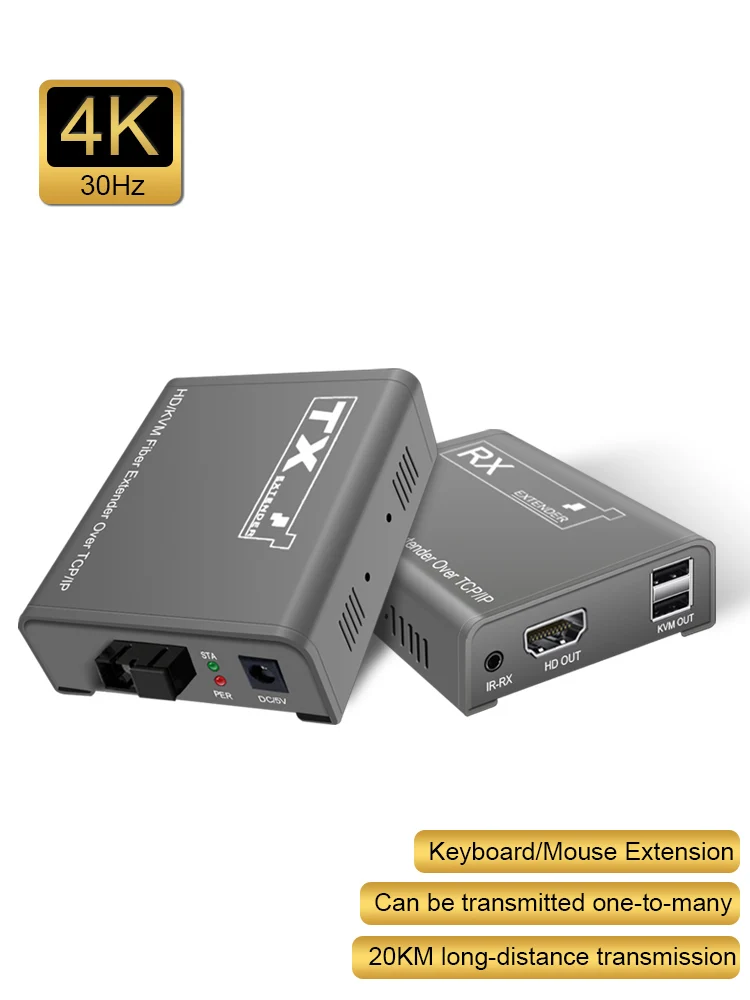

Support video resolution up to 4K@30Hz

Support video resolution up to 1920*1080P@60Hz

Support IR signal transmission(20KHz~60KHz)

Support keyboard and mouse

Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized

Compliance with HD V1.3 and For HDCP 1.2 standard

High compatibility, can auto-match source and display device

Built-in automatic adjustment system, make the image smooth, clear and stable

Built-in ESD protection system

Simple to install, plug and play

Specification

Standards:For HD V1.3; for HDCP 1.2

Maximum pixel clock:165MHz

Maximum data rate:6.75Gbps

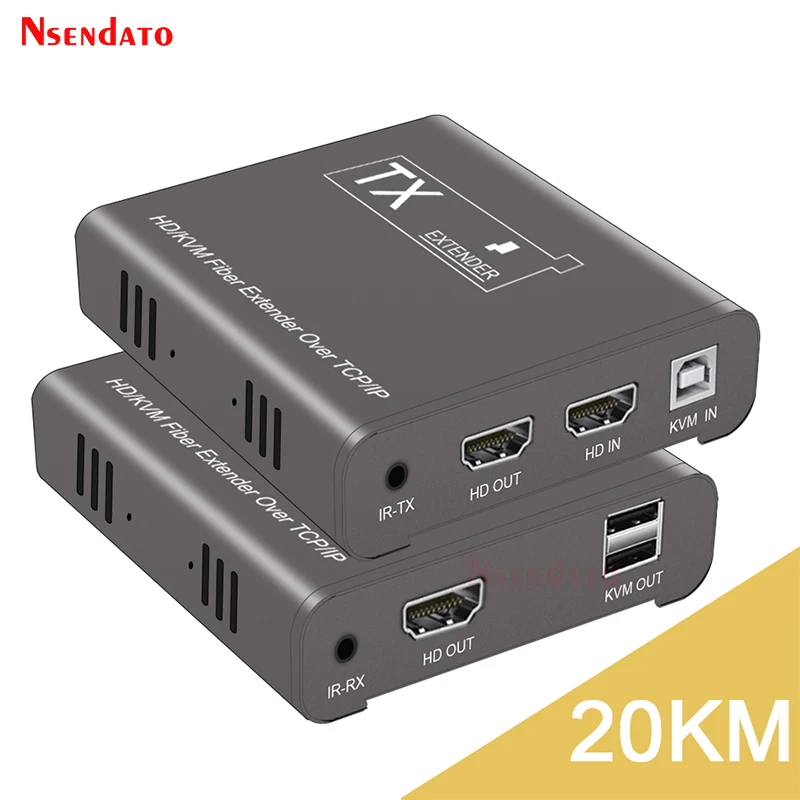

Resolution:1920X1080P@60Hz

Connector:HD-A

Impedance:100Ω

PC:Type B USB interface; connect to pc;

K/M:connect USB keyboard and mouse;

Interface:3.5mm seat

IR frequency:20-60kHz

Fiber:Interface SC/FC

Fiber Model:Single mode

wavelength:Single mode 1310nm；1550nm

bandwidth:6.25Gbps

Transmission distance:default standard 20KM, MAX up to 80KM

Installation Process:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2.Connect an HD cable between the HD input port of transmitter and the HD output port of the video source

3.Connect the HD output port of receiver to the display device with HD cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber

4.Connect transmitter PC IN port to PC using mini USB cable

5.Connect USB keyboard and mouse to Receiver K/M port

6.Power on Transmitter and Receiver

Package

HD transmitter

HD receiver

USB Cable

Power adapter

User manual
