Description
High Quality 150M VS 200M HDMI IP Extender - Optional
Introduction:
Brand new and high quality,buy with confidence!
This Qkens 150M / 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with
the high resolution up to 150 / 200 meters away from your DVD or computer source by using one CAT6 cable.
Features:
* Support HDCP1.4
* Decoding Mode MJPEG
* Support point-to-point mode
* 802.3 Ethernet standard;
* The design of pure hardware, plug and play, no need for additional software.
Specifications:
Resolutions ...................................................................................... 480P/720P/1080P
Audio .............................................................. Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format .............. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ............................................... TX 500mA,RX 500mA
Size(L-W-H) .....................................................................................approx. 93*79*21mm
Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity .................. -10℃-70℃/5%-90%RH(no condensation)
Connection and operation:
1) Connect the HDMI video source (such as DVD, PS3, PC) to the "HDMI IN" of transmitter by HDMI cable.
2) Connect the "HDMI out" of Receiver to HDTV display by HDMI cable.
3) Connect the Transmitter and Receiver with one cat6 cable.the furthest distance is 150M / 200M.
4) Connect two pieces of 5V power supply to the transmitter and receiver, and power on
the HDTV display and HDMI source.

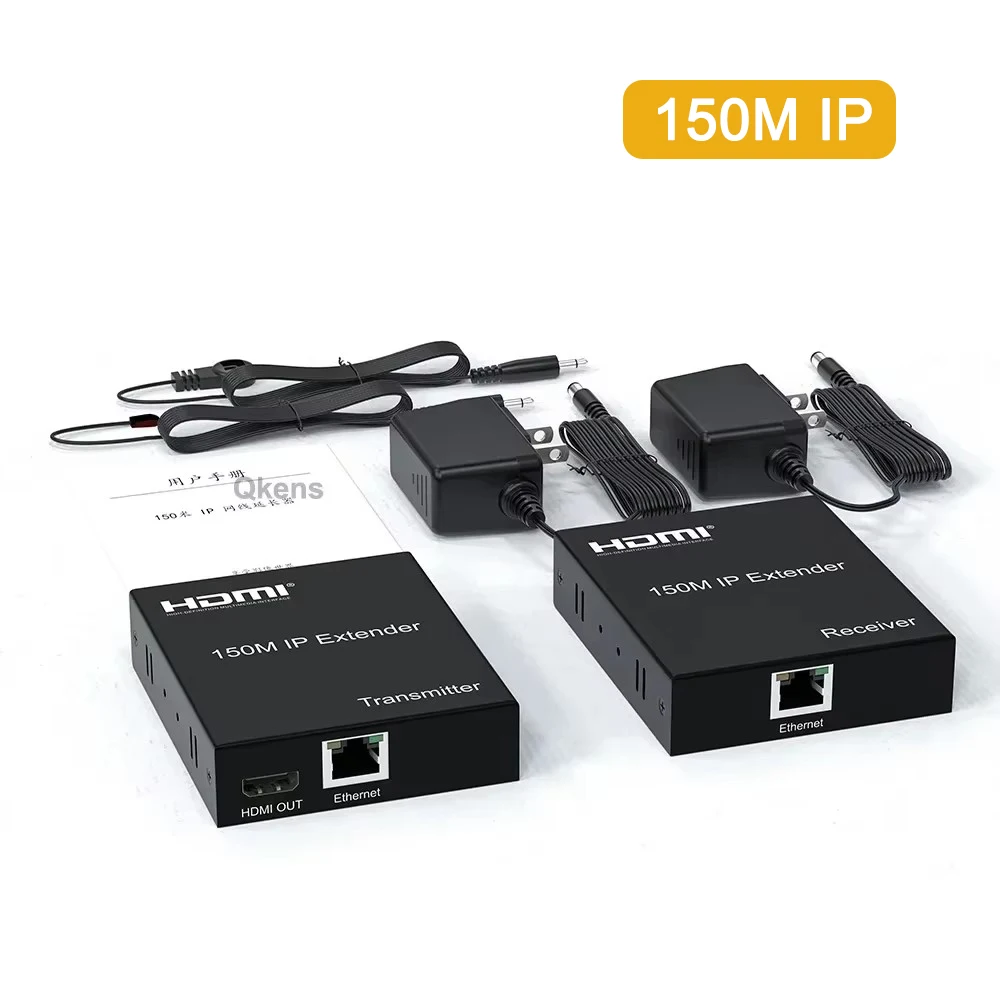

Package Content :
1. Transmitter 1PCS
2. Receiver 1PCS
3. 5V Power adapter 2PCS
4. User's Manual 1PCS
5. IR cable 2PCS
Without retail box and other accessories,if any need,pls contact us before purchase.
