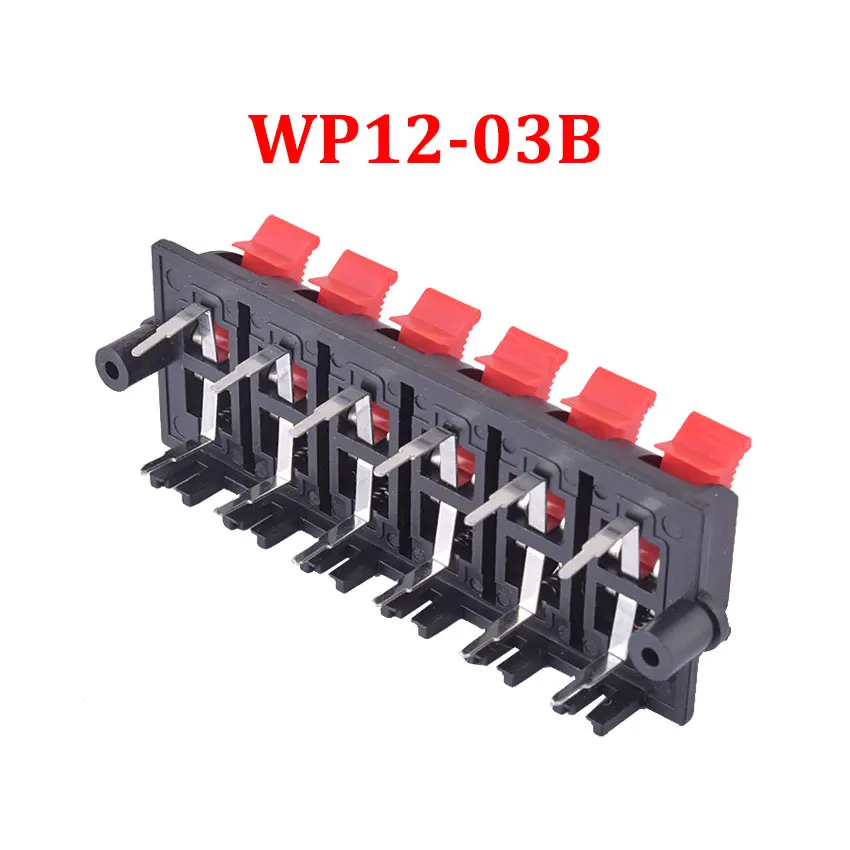

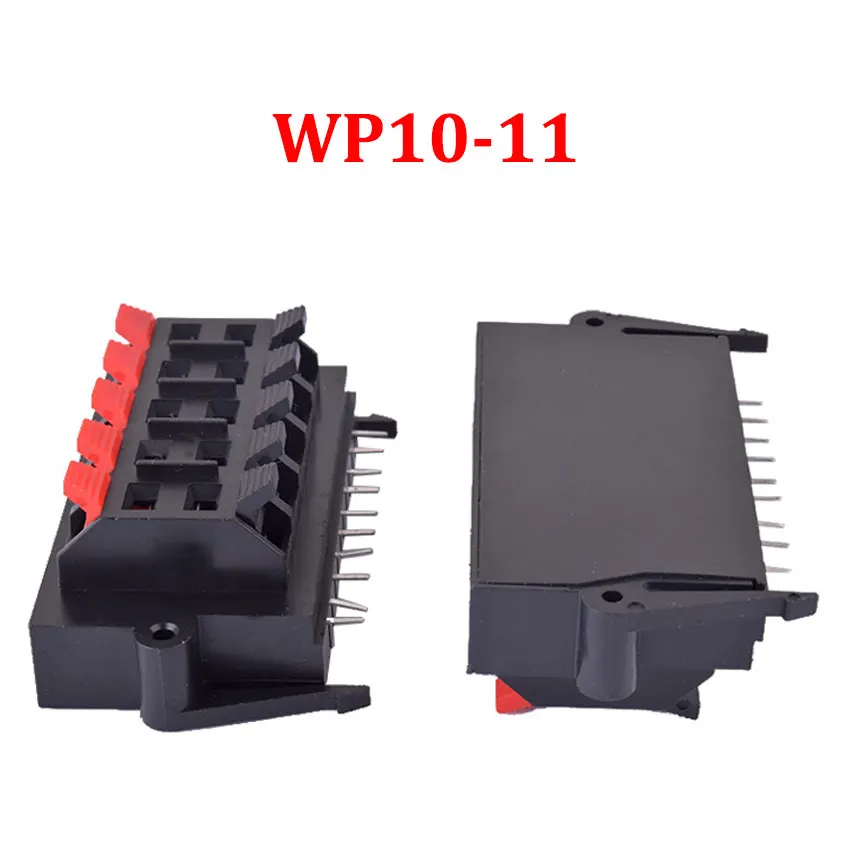

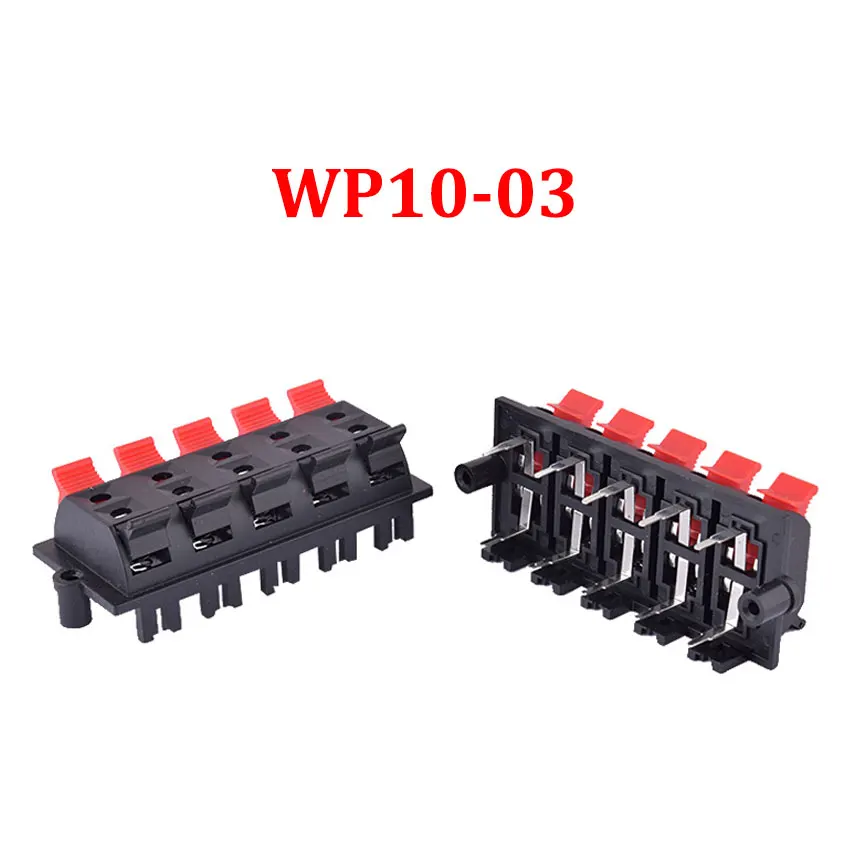

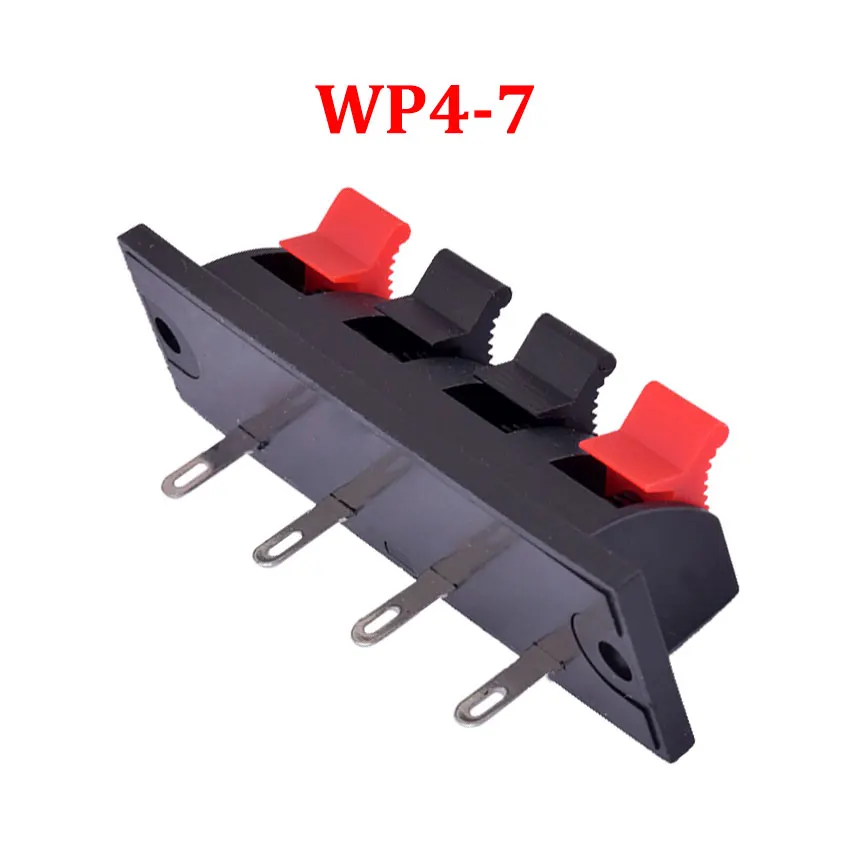

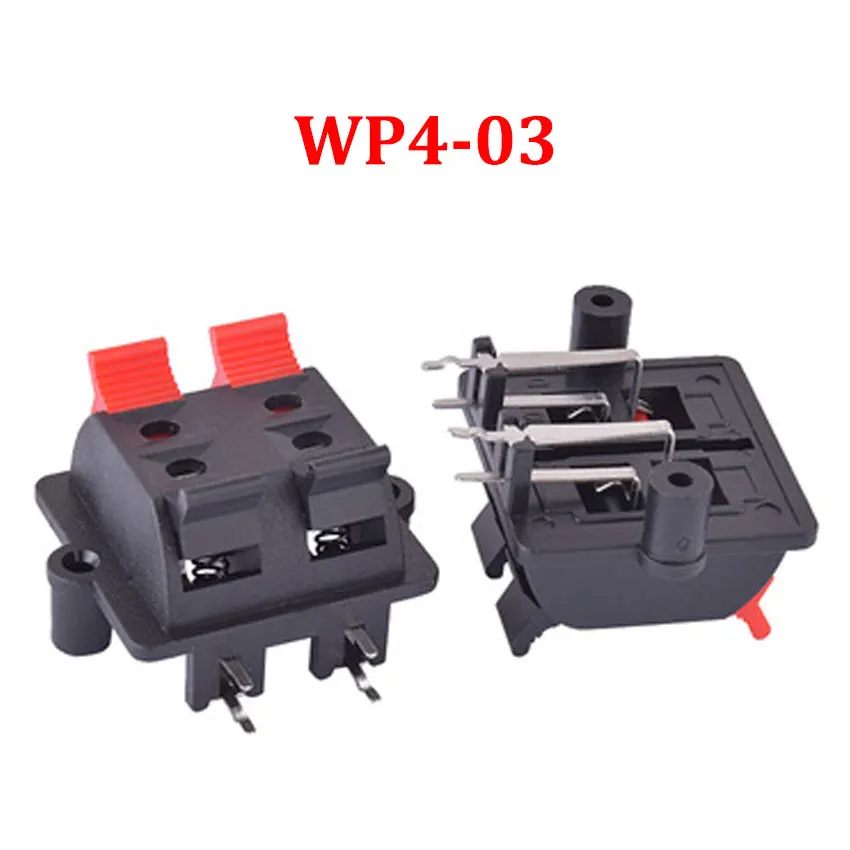

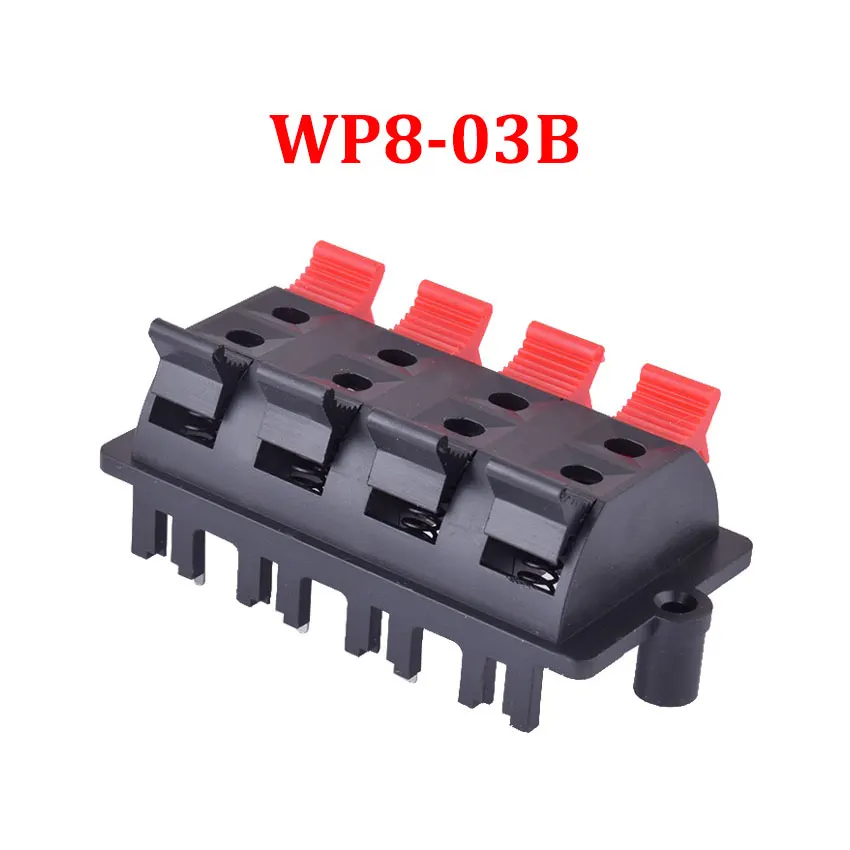

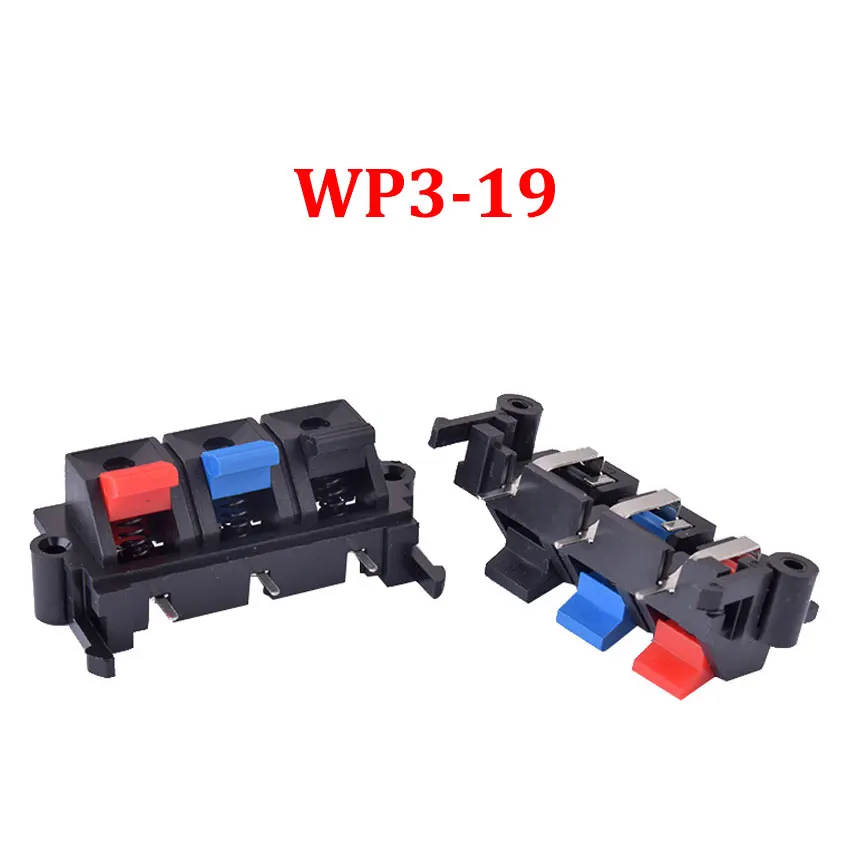

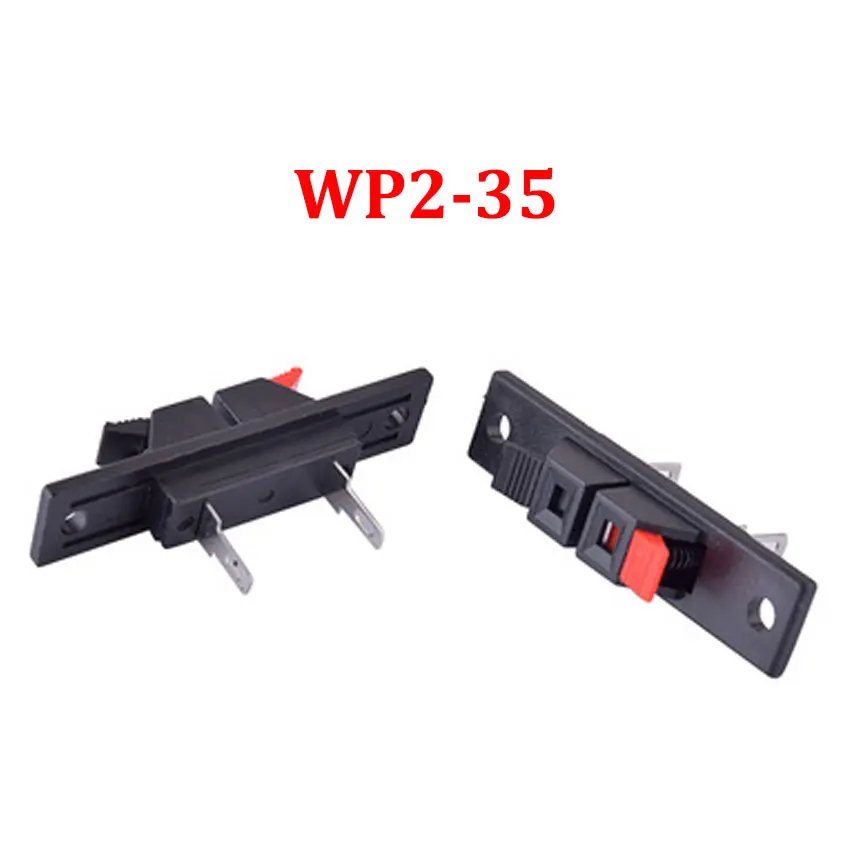

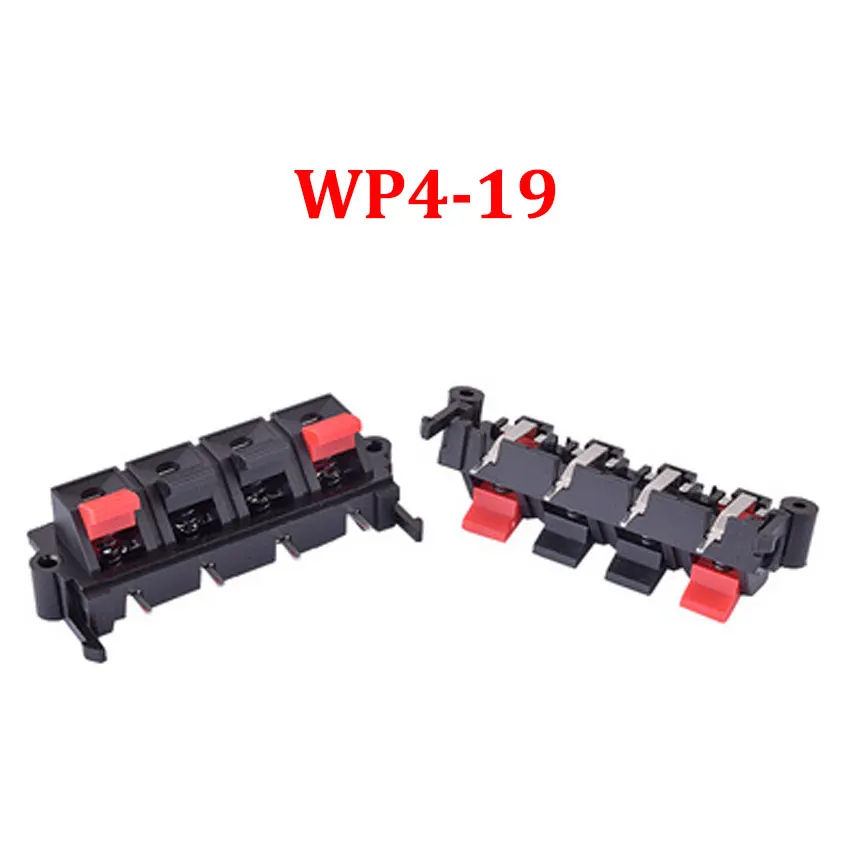

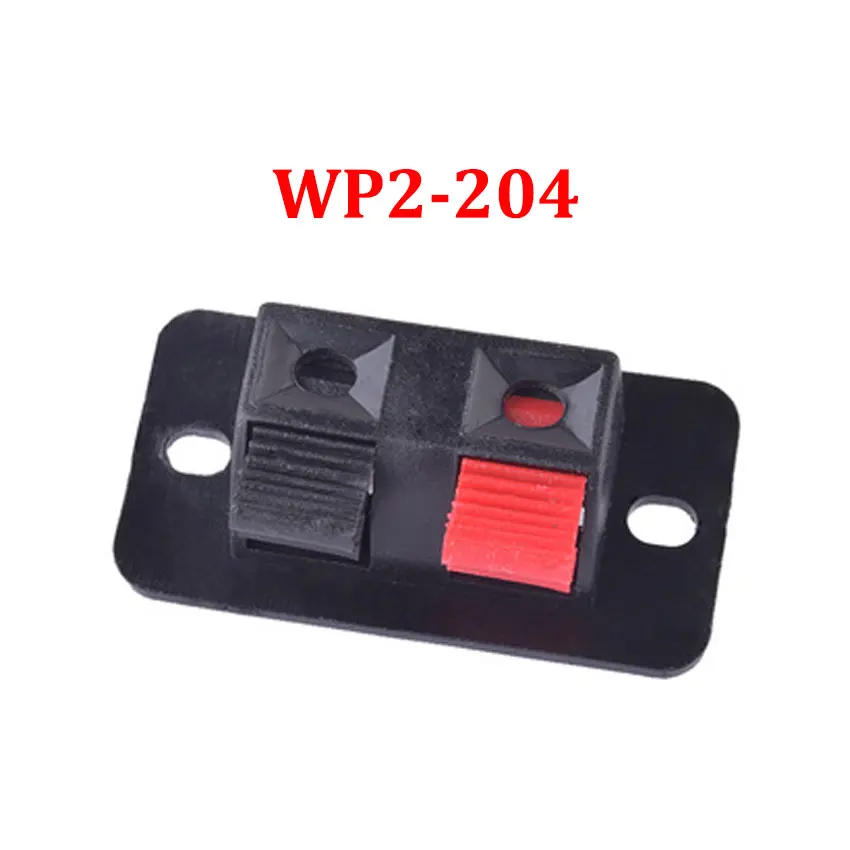

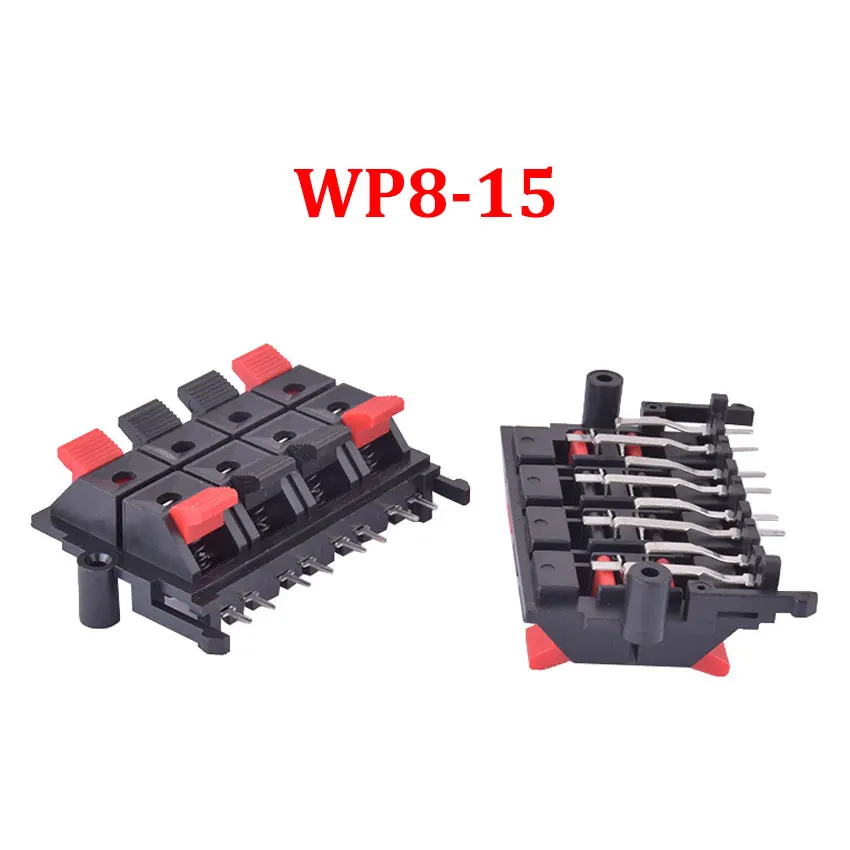

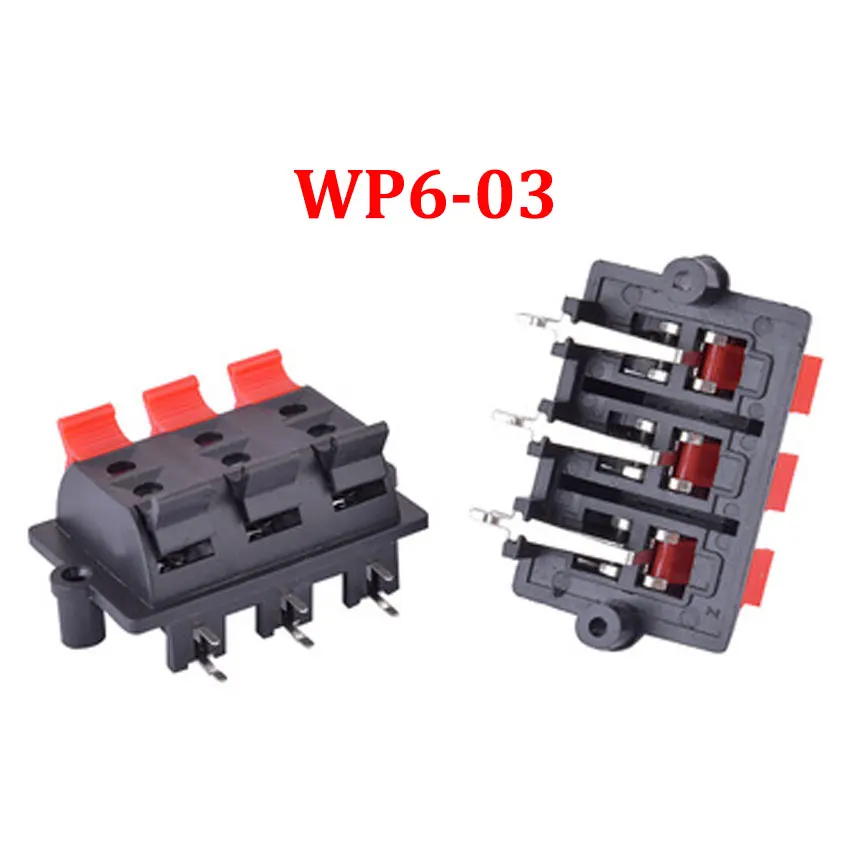

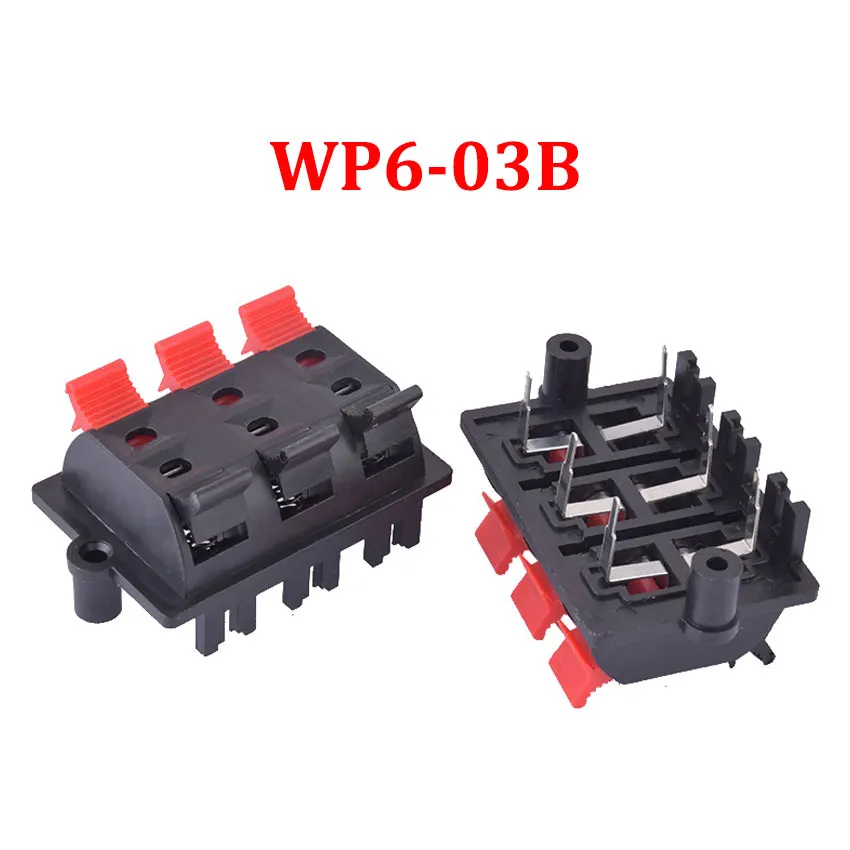

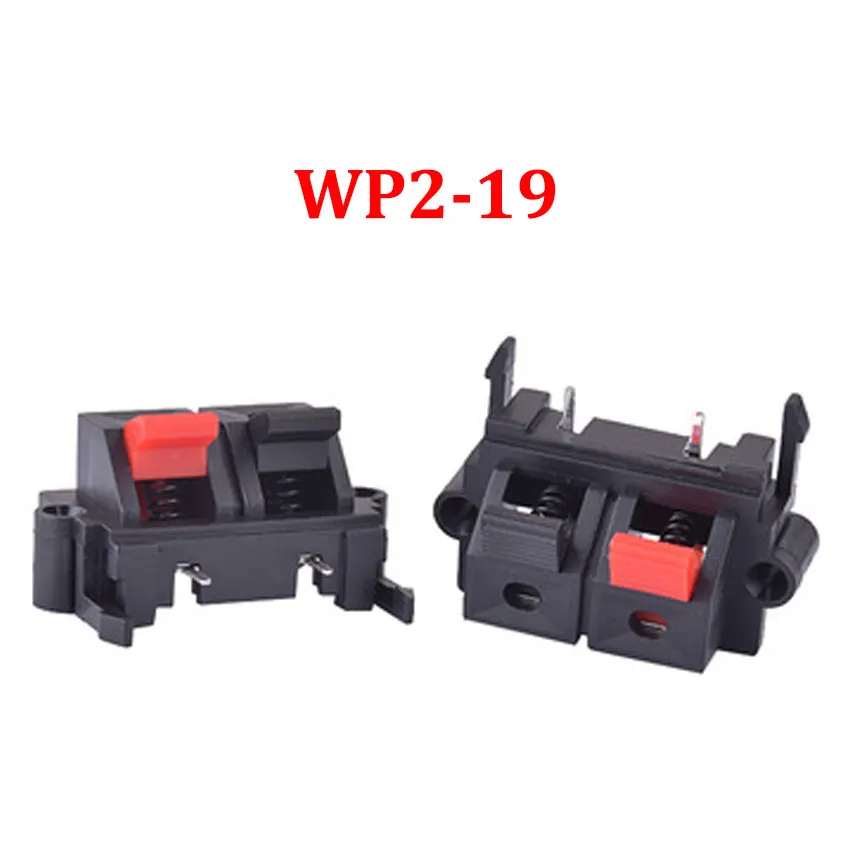

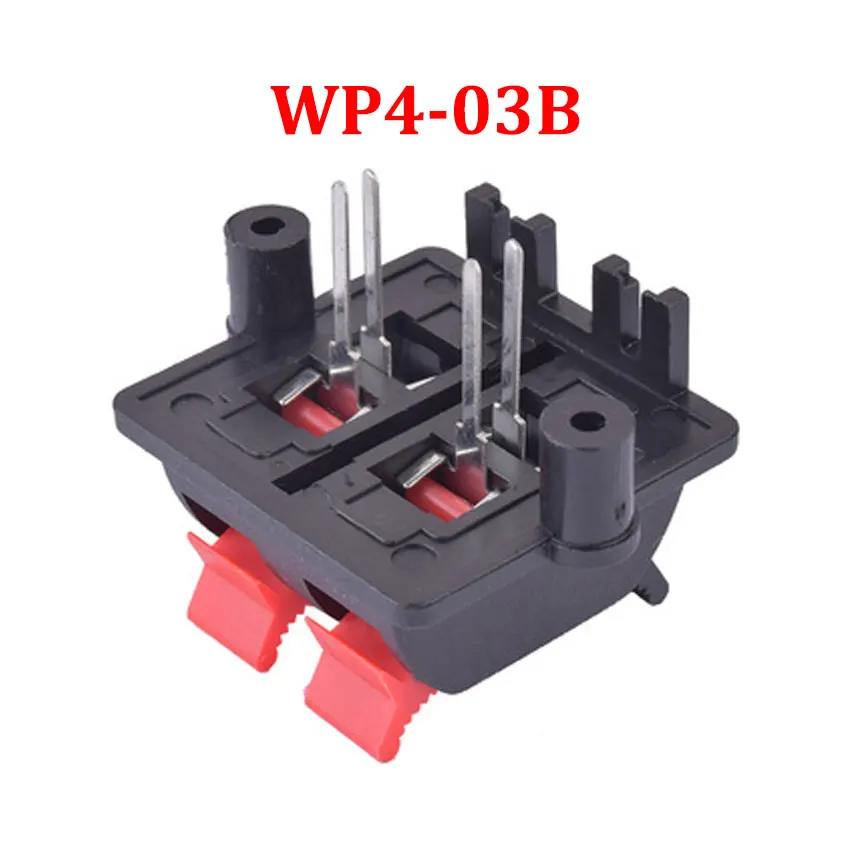

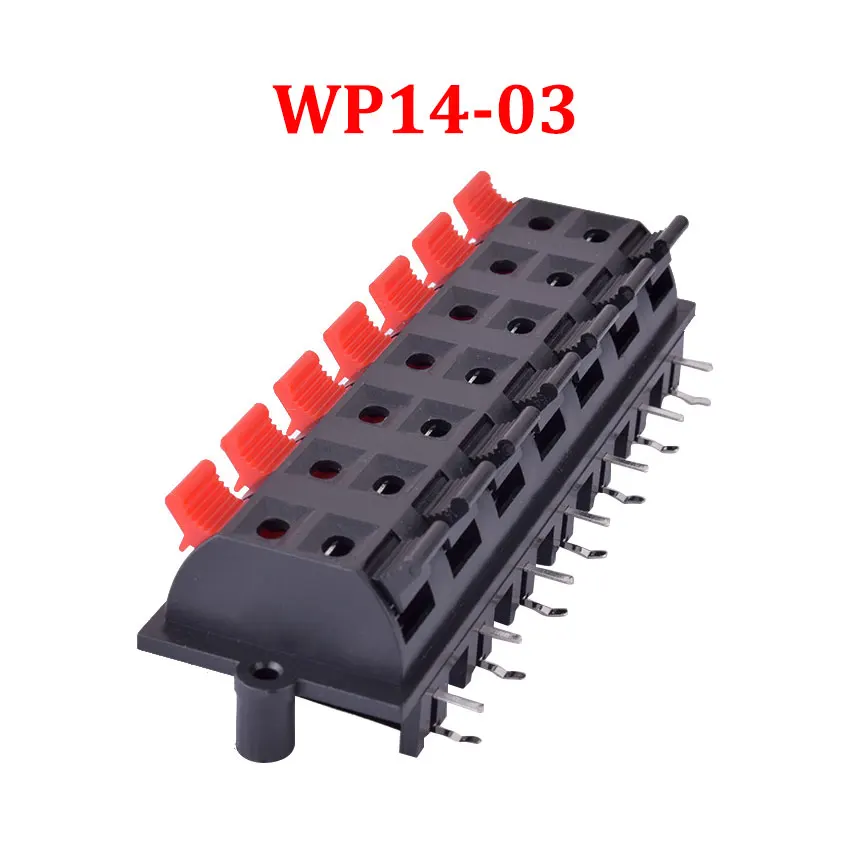

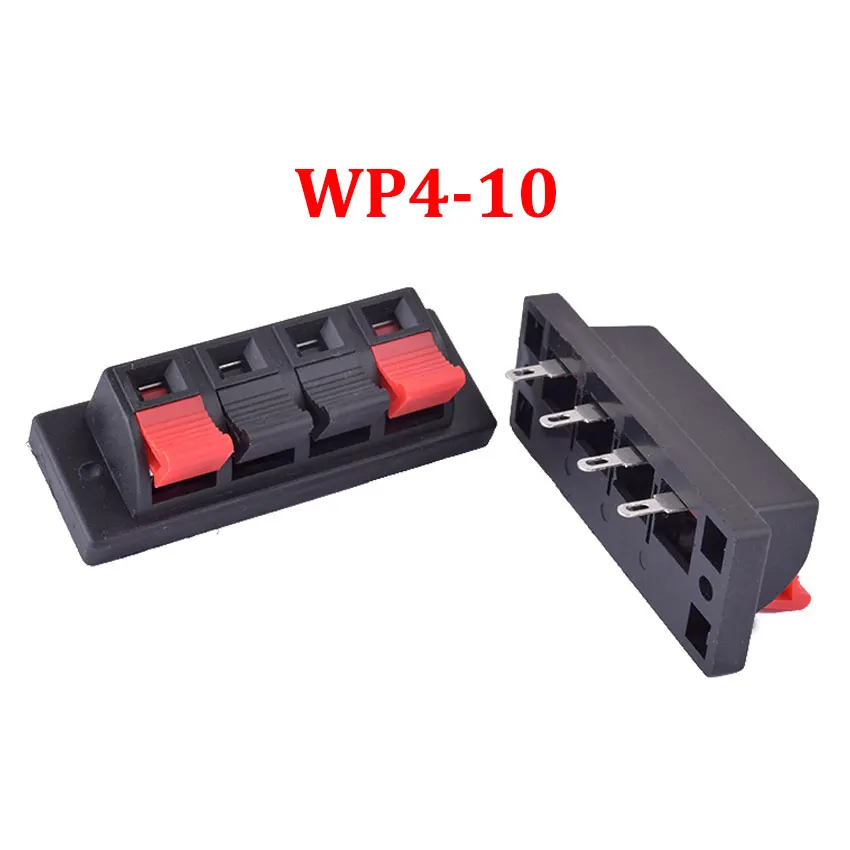

Cltgxdd 1 Uds 2 3 4 6 8 10 12 14 posiciones conector Terminal Push In Jack carga resorte Audio altavoz terminales enchufe Clip

Features

Good heat resistance, small temperature coefficient, low noise, high load power, high insulation, non-combustibility, operating temperature -55℃~+275

1, shock resistance, moisture resistance, heat resistance and good heat dissipation, low price and other characteristics.

2. Complete insulation, suitable for printed circuit boards.

3. Winding the wire on the porcelain rod and then welding the joint to produce accurate resistance value and prolong life.

4. The high resistance value is made of metal oxide film body (MO) instead of winding.

5. Excellent heat resistance, small temperature coefficient of resistance, and linear change.

6. Resistant to short-time overload, low noise, and the resistance value has not changed over the years

Introduction to parameter specifications

Temperature: (-40~55)℃

Rated voltage/current: DC 100V 1.5A/DC 100V 3A

Contact resistance: ≤0.03Ω

Insulation resistance: ≥100MΩ DC500V

Withstand voltage: AC 500V (50Hz)/min

Line holding force: 1Kgf

Applicable wire: AWG#24-#16

Life: 5000 times
