factory direct sales, excellent product performance, super good reputation, 100% full inspection, power-on test before delivery

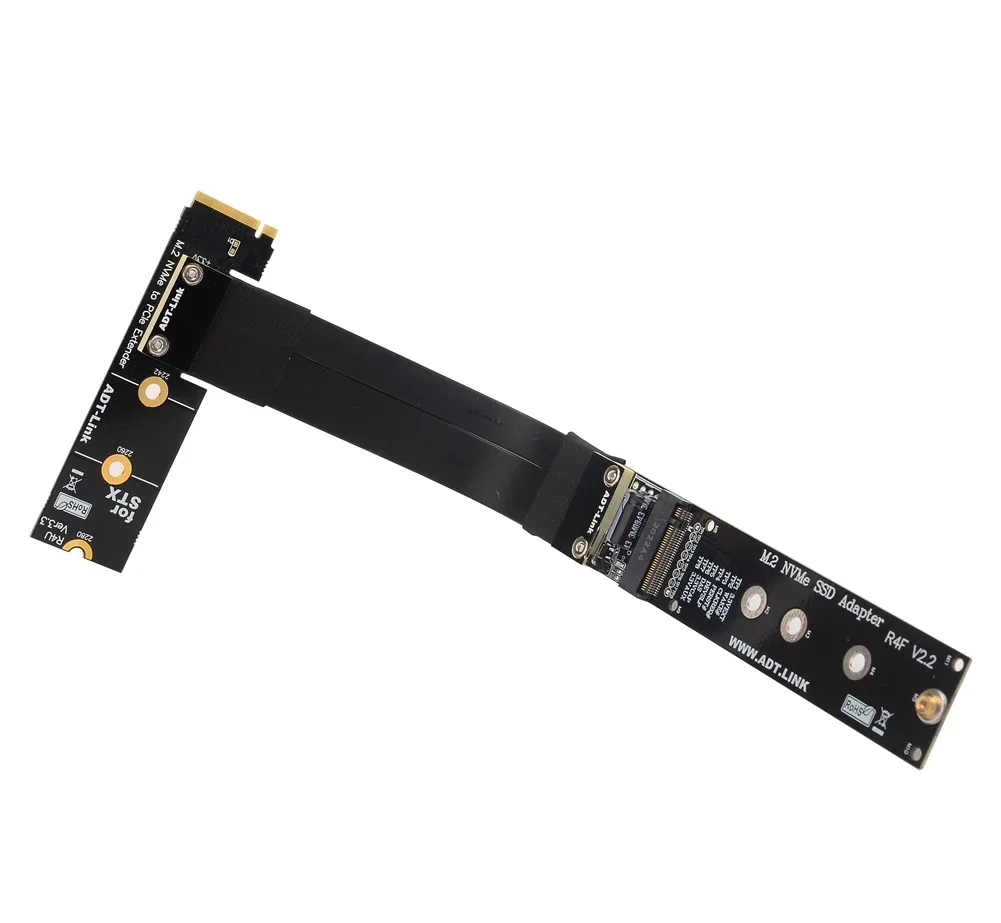

M.2 NVMe SSD Extension Cable
Product name:M.2 NVMe Key M extension cable
Product model:R44UF
Transfer speed:PCIe 3.0 x4 full speed, 32G/bps (Max.)
Wire length:10 ~ 100 cm, the length can be customized
Application: M.2 NVMe Ultra SSD cards extension
Note: This product supports NVMe SSD, but please note that both of your motherboard and system must also support NVMe SSD. Otherwise, the hard disk cannot be recognized. The Win7 native operating system or older operating systems do not support NVMe. The early Z97 motherboard BIOS or older motherboards than Z97 do not support NVMe
Note: Galaxy W1 case, please choose R44UF-Left Bend 23cm
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.
Is there any EMI shielding for Cable?
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
Product advantage
1.Advantages of wire, imported wire with German patent, Lotes connector imported from Taiwan, high frequency support PCIe 3.0 8G/ BPS stable transmission
2.Line length advantage, from 3 cm to 1 m can be customized, the shop sales of the transfer wiring, wire impedance is low, less than 60 cm line length can be stable support PCIe3.0 full speed.
3.The differential signal has no hole design, and there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and no CAF micro-short circuit phenomenon. The product is durable.
4.PCB USES high frequency and low resistance high quality materials, PCB works precision, PCB USES high TG plate, copper thickness thickened to 1oz, gold finger gold-plated content, gold-plated foot conductive performance is good, can reduce the oxidation rust impedance caused by the rise of the problem of crash.
5.The wire selected by the product itself is very durable, the use of the thickness of 3mm PCB gasket protection in the metal welding point, and lock the screw and hexagon nut fastening, the product is solid and reliable tensile resistance, anti-interference, there will not be broken wire nail problem.
6.PCB dwarfing and fatten design, dwarfing will not be stuck to the graphics card, fatten and lengthening design makes the board card easier to install, reduce the probability of damage
Note: This product does not support notebook external !!!
Summary of technical problems
Can NVMe SSD be supported?Why can't NVMe SSDS be recognized?This product supports NVMe SSDS, but please note that both your motherboard and your system must also support NVMe SSDS.Otherwise the hard disk cannot be identified.Windows 7 native operating systems or older operating systems do not support NVMe, and the early Z97 motherboard BIOS or older motherboards do not support NVMe.What is the thickness of the wire?Soft?The wire thickness of this product is only 1.4mm, so the wire of this product is relatively hard.PCB length is too long, can it be shortened?Can follow the white line cut short.
Precautions for purchase:
1. When inserting the cable, it is necessary to have a clear understanding of the direction, do not insert the socket in reverse or out of alignment, to avoid burning the device. First hold the socket of the device before inserting the cable, to avoid cutting the socket pin too hard.2. All kinds of motherboards and equipment signal driving ability and other conditions are not the same, the test results of our store do not guarantee the same with your test results, as long as it is connected to the extension cord, the signal will be lost, please do not buy3. The graphics card or motherboard is an electronic product that will age and oxidize with the increase of time. It does not support the old equipment.Equipment more than 3 years.Do not buy.4. Only engineering personnel can designate to buy, no DIY ability, can not install, do not buy5. If your SSD is two notched SATA SSD, do not buy itSupport a gap m-key NVMe SSD;Two notched bm-key SATA SSDS are not supported
