ADT-Link SD to SD UHS-II card Extender
Brand name: ADT-LINK
Product name: SD to SD UHS-II card extension Cable

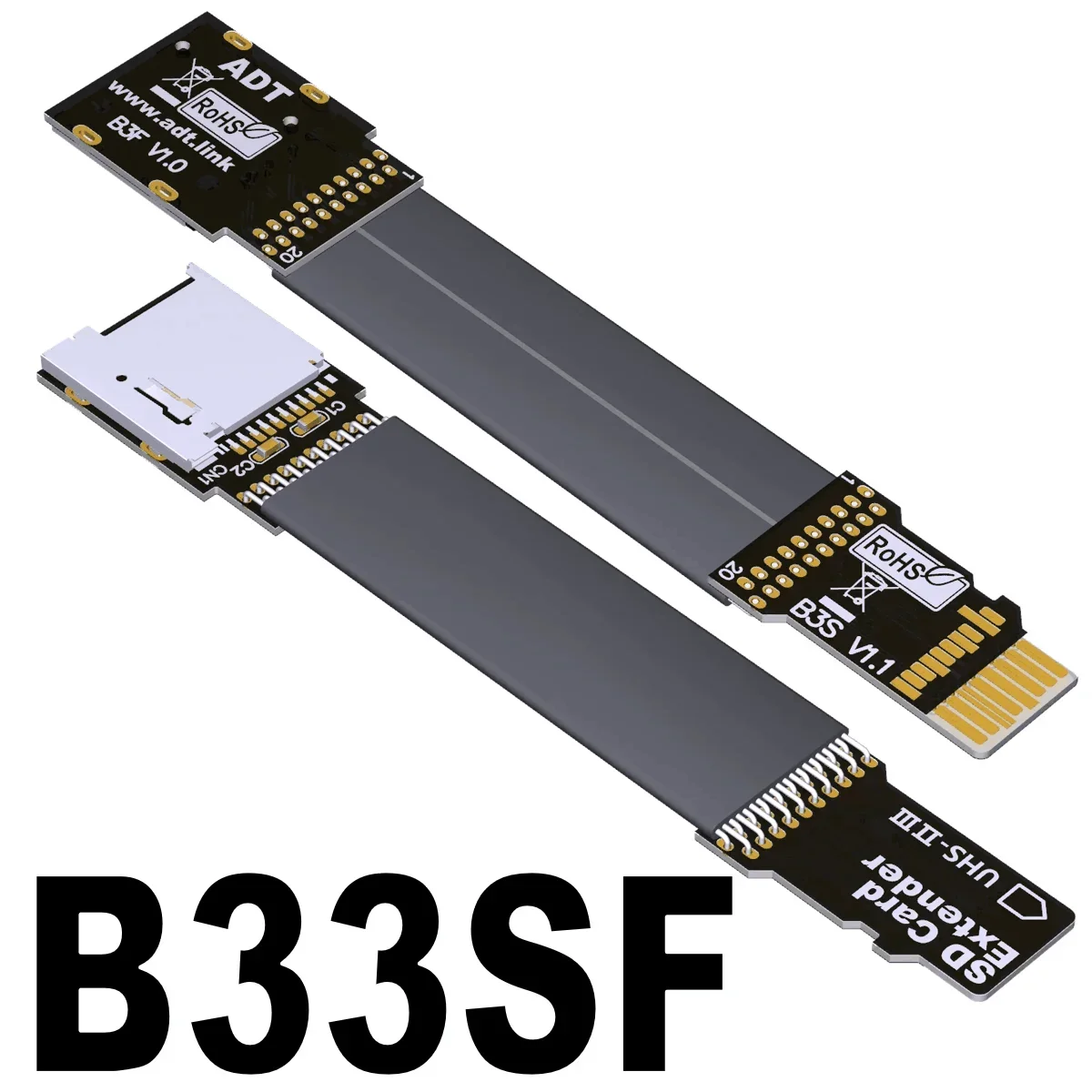

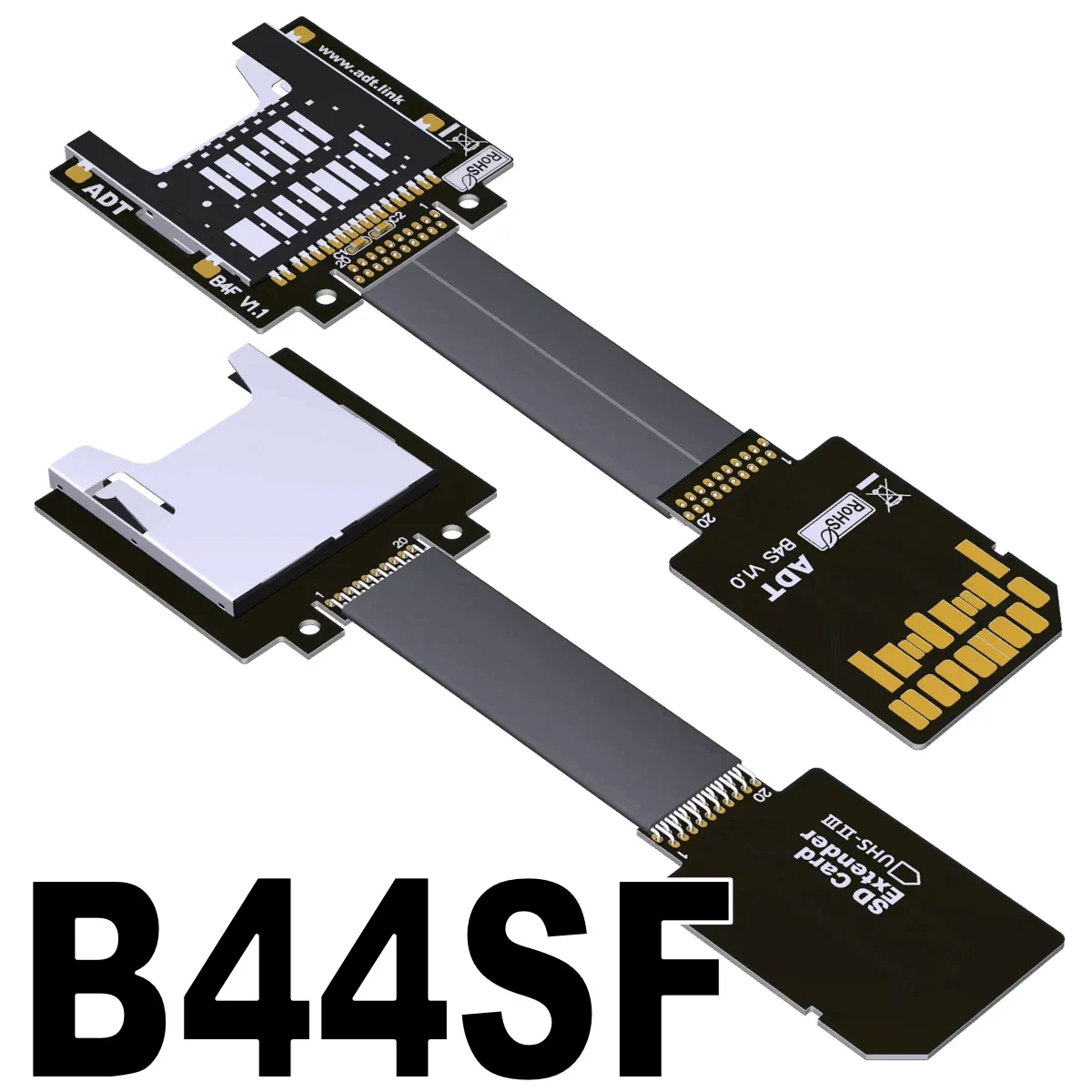

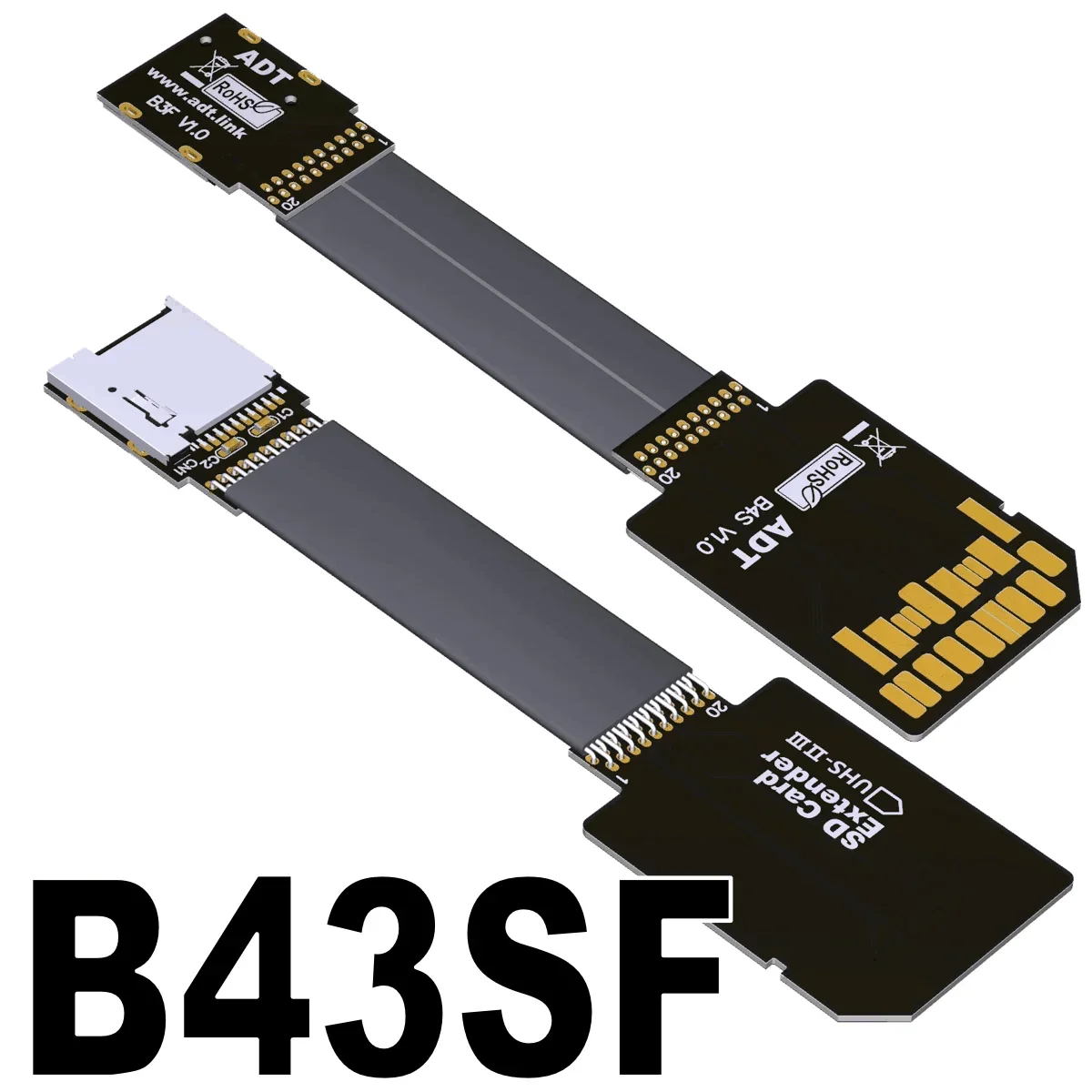

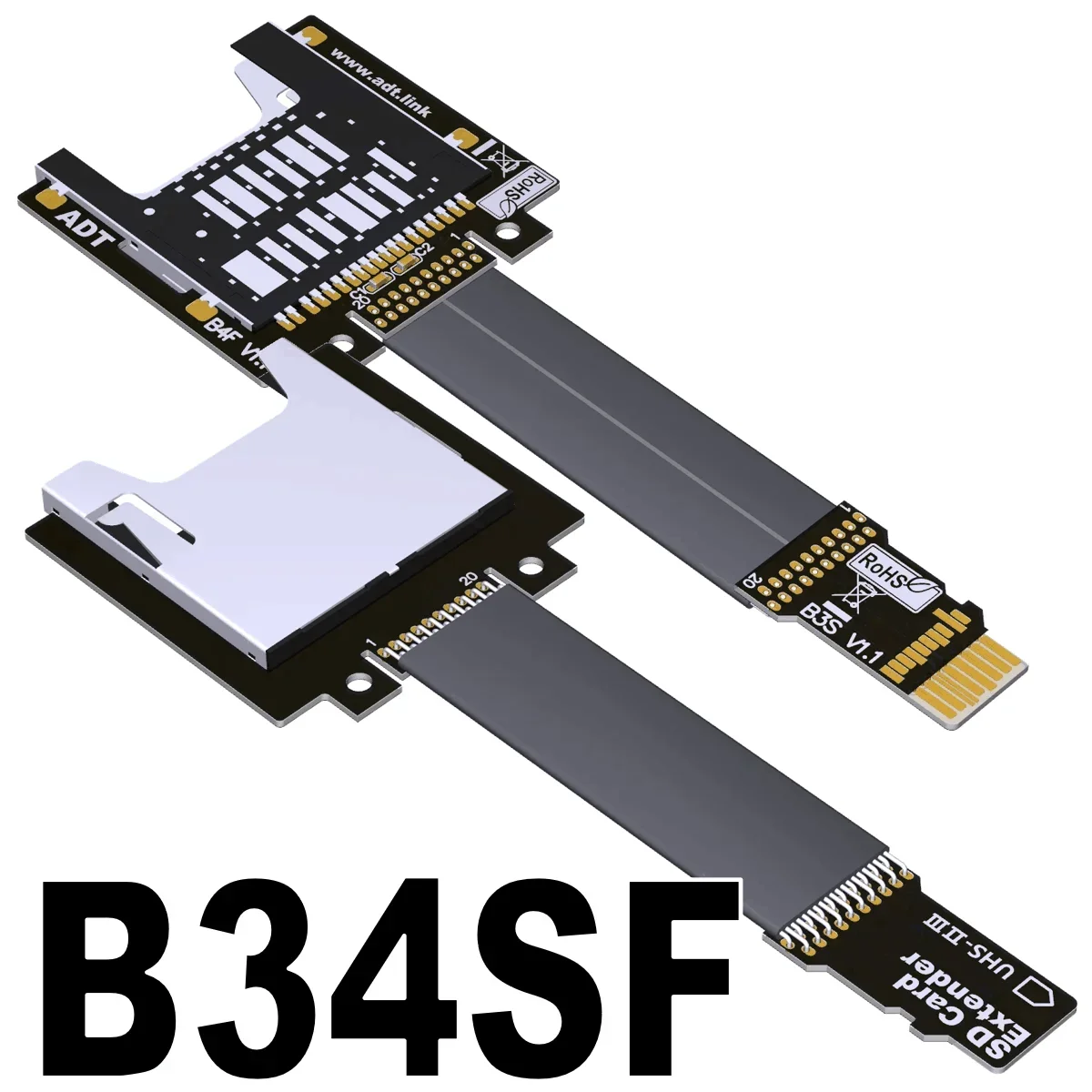

Product model: B33SF, B34SF, B43SF, B44SF
Transfer speed: 5-150cm UHS-II , 312MB/Sec(Max.)
5-30cm UHS-I 104MB/Sec(Max.)
5-80cm High_Speed Card 25MB/Sec(Max.)
Function: SDHC SDXC SDUC UHS-II SD Express PCIe Gen3 & NVMe SD Card extender Cable TF memory card extension card high-speed transmission extension cable. reader male to female extend
Wire length: 5 ~ 80 cm, the length can be customized.
Application: GPS , ROCK Pi 4 raspberry Pi SCM development board, machine equipment and other needs to extend the SD card to the use.
Purchase restriction: This product is designed to be connected to the built-in SD device and is limited to the product engineer's designated purchase. Individual buyers are not allowed to place an order for purchase. It is not easy to use for ordinary purposes, and returns and exchanges are not supported. Please consider carefully before placing an order for purchaseProcurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

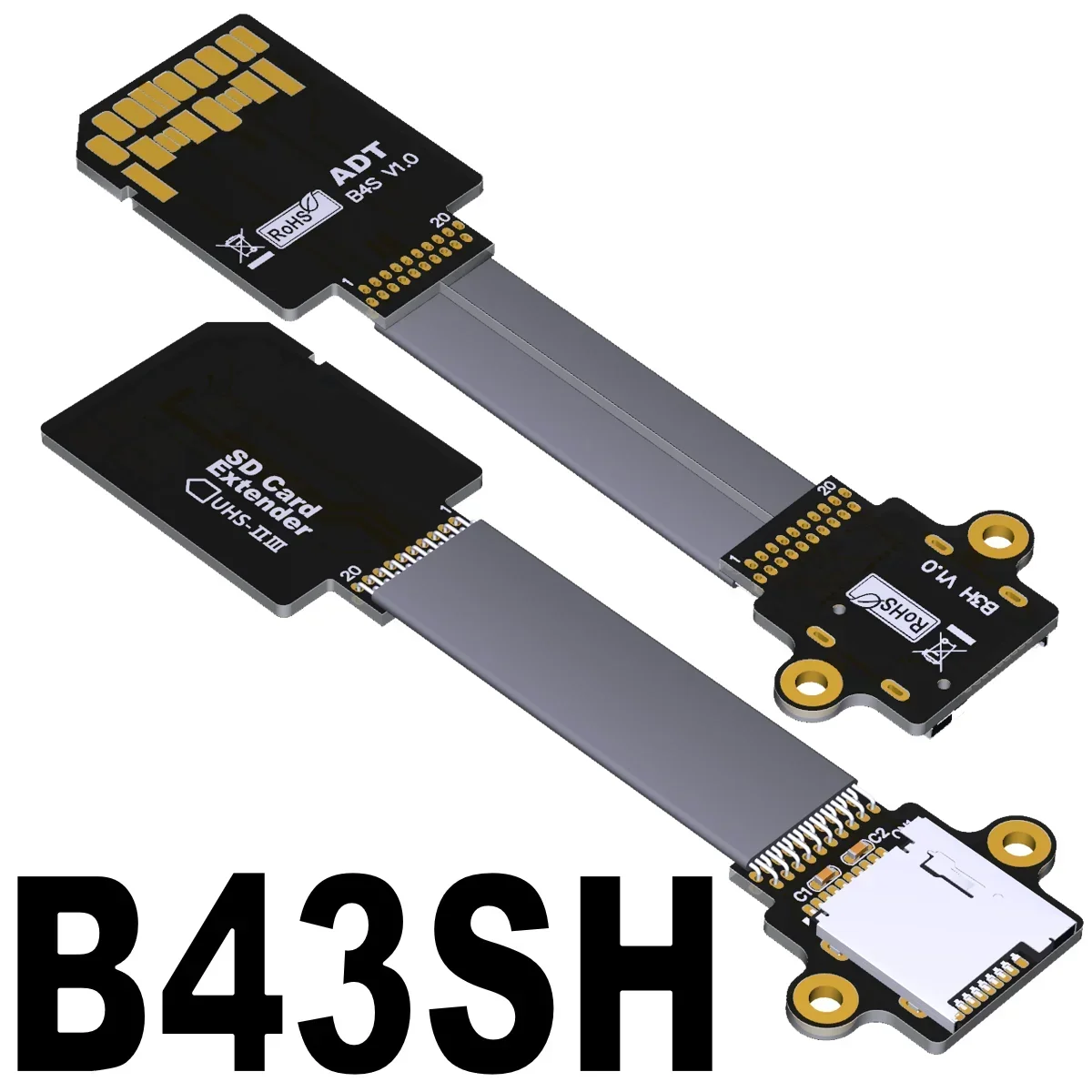

ADT Bxx series Part-Number Description:

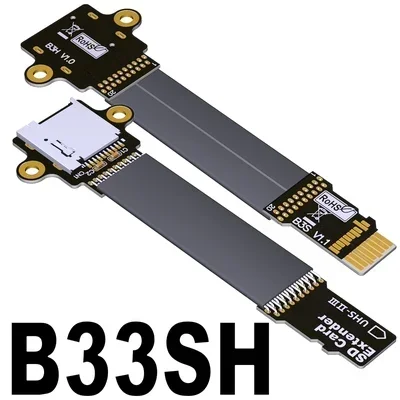

BrandPart-NumberDescriptionBandwidth (Max.)ADTLINKB11SFUHS-I micro SD to micro SD Card adapter104MB/Sec *1ADTLINKB12SFUHS-I micro SD to SD adapter104MB/Sec *1ADTLINKB21SFUHS-I SD to micro SDadapter104MB/Sec *1ADTLINKB22SFUHS-I SD to SD adapter104MB/Sec *1ADTLINKB33SFUHS-II,III micro SD to micro SD Card adapter312MB/Sec *2ADTLINKB34SFUHS-II,III micro SD to SD Card adapter312MB/Sec *2ADTLINKB43SFUHS-II,III SD to micro SD Card adapter312MB/Sec *2ADTLINKB44SFUHS-II,III SD to SD Card adapter312MB/Sec *2ADTLINKB33SHUHS-II,III micro SD to micro SD Card adapter312MB/Sec *2note *1: High-Speed_Card 5~80cm 25MB/Sec; UHS-I_Card 5~30cm 104MB/Sec;
note *2: High-Speed_Card 5~80cm 25MB/Sec; UHS-I_Card 4~30cm 104MB/Sec; UHS-II_Card 5~150cm 312MB/Sec;
How compatible is the SD extension cord?
Support full speed for ordinary cards without I characters within a cable length of 80cm
UHS-I full speed can be supported within a cable length of 30cm, and UHS-I half speed can be supported within 80cm
Cables within 80cm can support UHS-II, UHS-III full speed, and the SD card will have a speed indicator. As shown below
SD extension cables use SD UHS-II high-speed cards for speed measurement, and they will be shipped after 100% PASS testing. As shown below
UHS-II Extender cable Test:
UHS-II SD card 300MB/s , test speed 250MB/s
