1,24 € ~~1,35 €~~

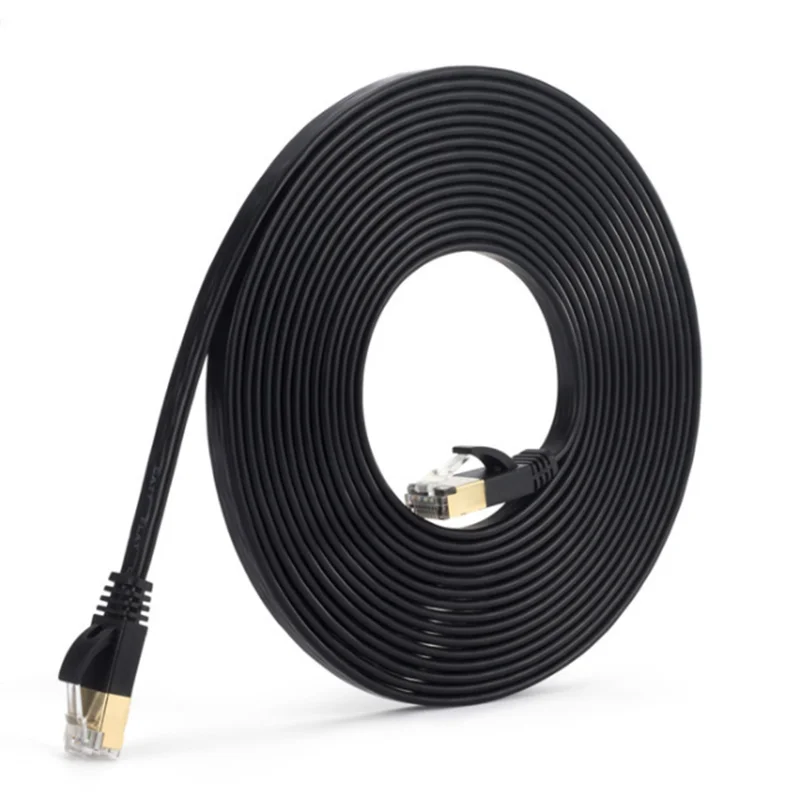

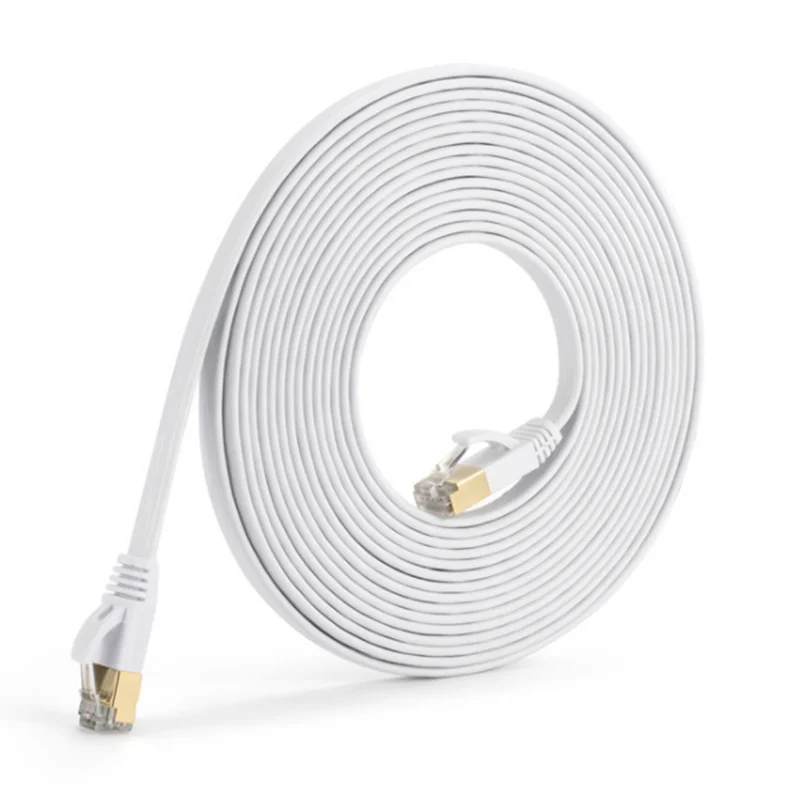

Cable Ethernet Cat7 de la mejor calidad, alta velocidad, 10Gbps, 600MHz, LAN, UTP, puente Ethernet, módem RJ45, enrutador, red con cable de ordenador

0

Color:

Descripción

Product name: Product Chinese name: Category 7 Gigabit 10000MPBS network cable, flat network jumper

product description:

1. Mainly used for 10BASE-T\100BASE-T and 1000BASE-T networks;

2. Use RJ45 8P8C plug connection;

3. Strong anti-interference ability;

4. The crystal head adopts forming protection, the product is more durable;

5. Small diameter, saving the occupied space;

6. Light weight, easy to bend and easy to install;

7. With independence and flexibility, it is suitable for structured integrated wiring.

Transmission performance exceeds TIA/EIA-568B.2-1 Category 6 Standard/Super Category 6 Standard

Impedance: 100ohms±15﹪, IMHzto 600MHz

Transmission delay: 536ns/100mmax.@250MHz

Delay offset: 45ns max

Conductor resistance: 66.58 ohms max/km

Capacitance: 5.6NF max/100m

DC resistance: ≤7.55Ω

Withstand voltage: 300 vots AC DC

Bending radius: 5MM

U/NEC grade: CMR, CM

Working environment temperature: -20℃ to 60℃ range

Storage and transportation environment temperature: -20℃ to 80℃

Conductor: 32AWG bare copper

Outer: FR PVC

Network cable application range:

Suitable for EIA/TIA 568A/B general line sequence

Widely used in network communication media communication, etc.

The network cable supports high-speed transmission of voice, data and most media

Con la garantía de:

1,24 € ~~1,35 €~~
