Cable de conexión de fibra E2000/APC-E2000/APC dúplex monomodo 1m 3m 5m 7m 10m 9/125um puente de fibra óptica E2000-E2000 E2K elink

Email:sales@ever-elink.com

Skype:e_link60

Wechat/whatapp:13065838003

NOTICE:

1 Pls contact us freely for other length;

fiber patch cord E2000/APC-E2000/APC duplex Singlemode 1m 3m 5m 7m 10m 9/125um optical fibre jumper E2000-E2000 E2K elink

Buy E2000/APC-E2000/APC-FC-LCA-SCA-LC-SC Simplex Jumper:

Buy E2000/UPC-E2000/APC-FC-LC-SC-ST Simplex Jumper:

Feature:

1. E2000 and E2000 APC optic connectors with metal shutter
2. Available in different fiber types including OS1/OS2 - G.652D or G657A1, G.657A2, OM1, OM2, OM3 or OM4
3. Low smoke zero halogen (LSZH) jacket color coded to identify the optical fiber type
4. Available as hybrid patch cords with different connector types including FC, LC, SC or ST
5. Available in standard and custom lengths
6. REACH, RoHS & SvHC materials compliant.

Application:

1. Telecommunication networks
2. CATV
3. LAN and WAN
4. FTTX
5. Broadband network
6. Data Centre

CHARACTERISTICS

UNITS

SIMPLEX

DUPLEX

Cable Material

PVC LSZH

PVC LSZH

Strength Member

Aramid

Aramid

Crush

N

1000

1000

Operating Temperature

°C

-20 to +60

-20 to +60

Secondary Buffer Diameter(2.0mm and 3.0mm)

µm

900 ± 50

900 ± 50

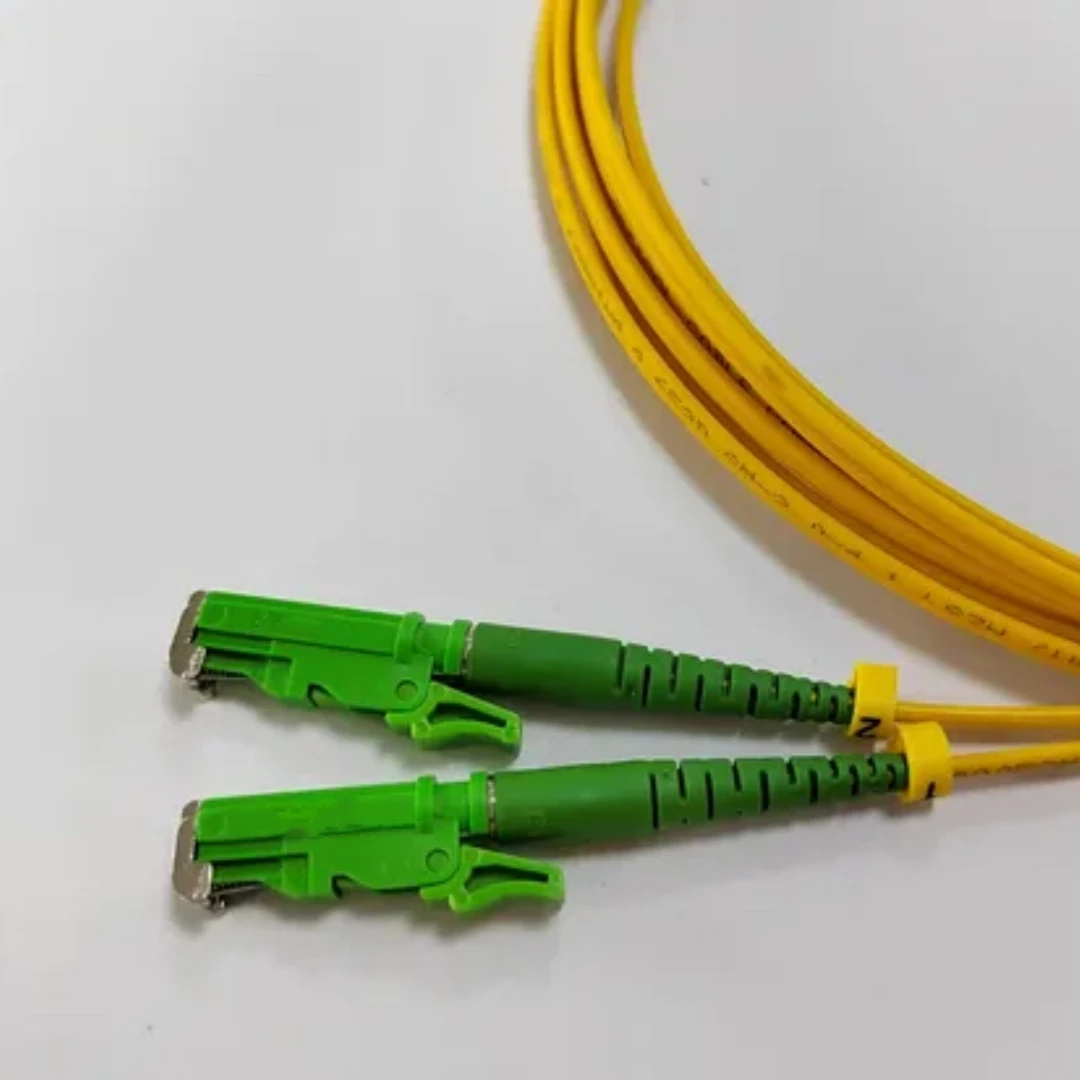

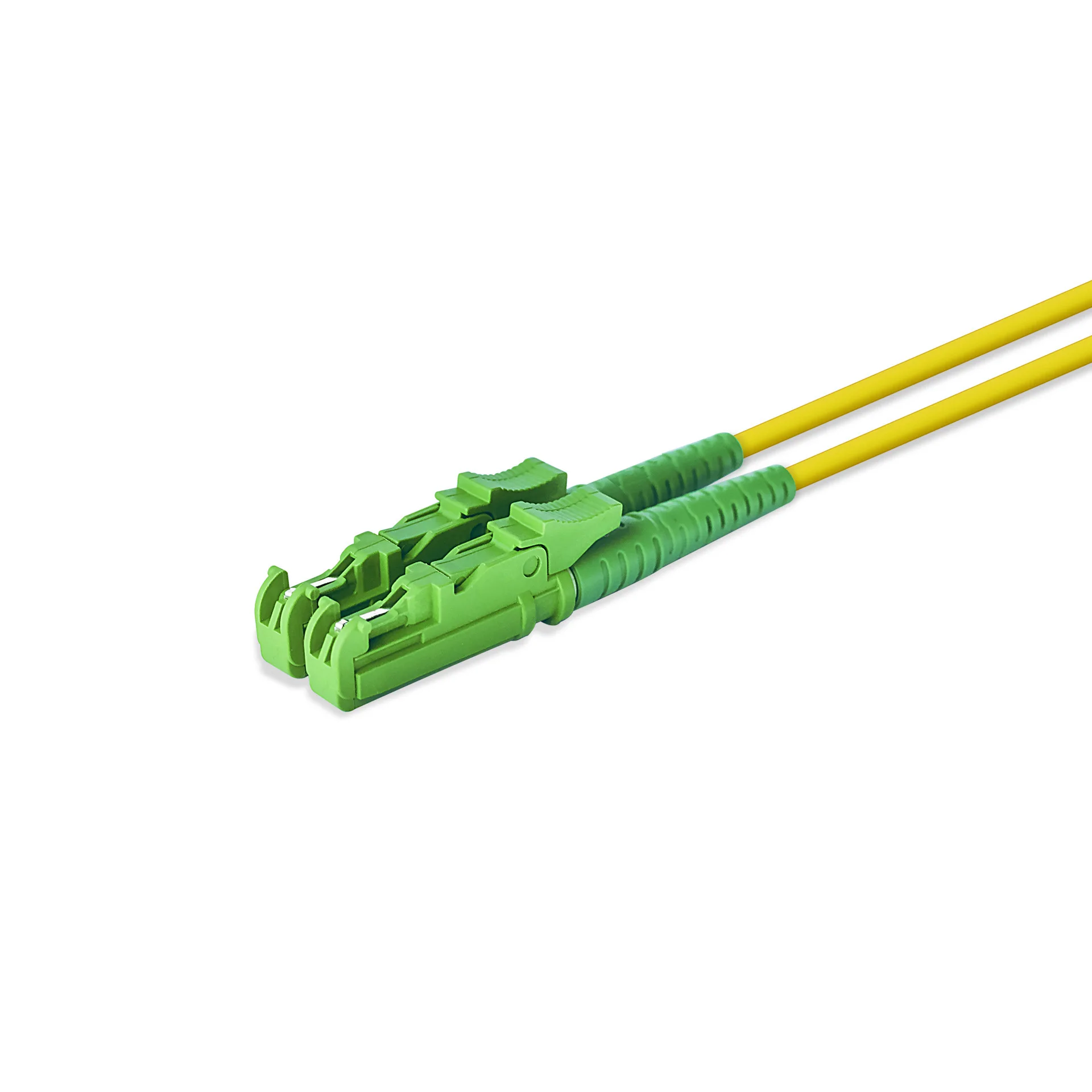

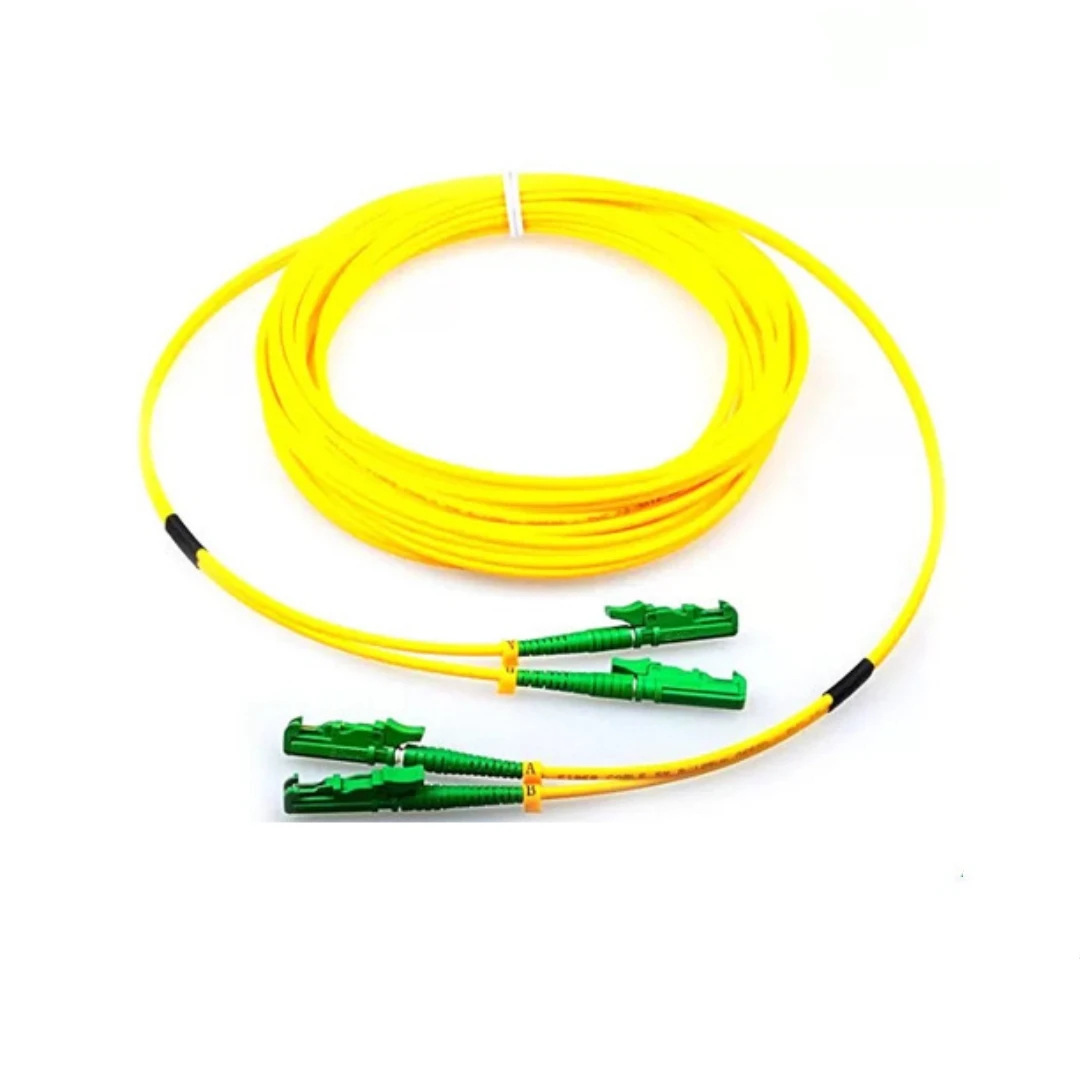

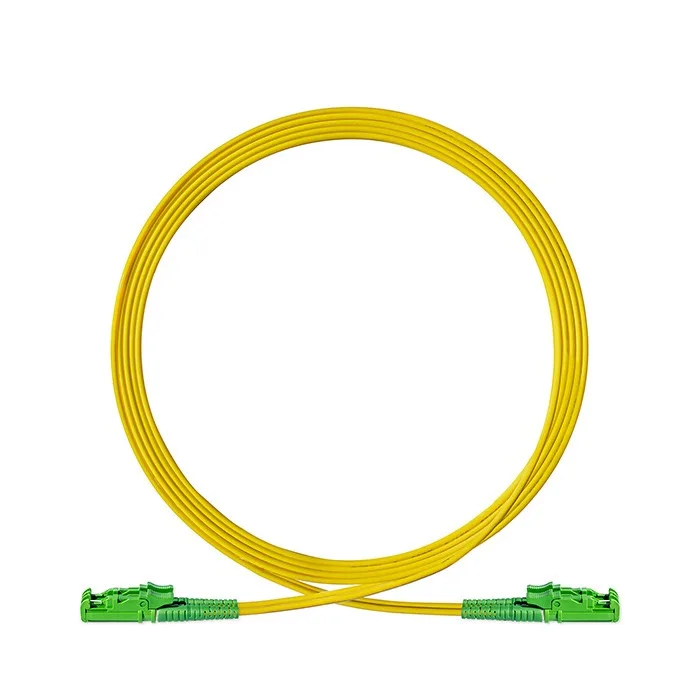

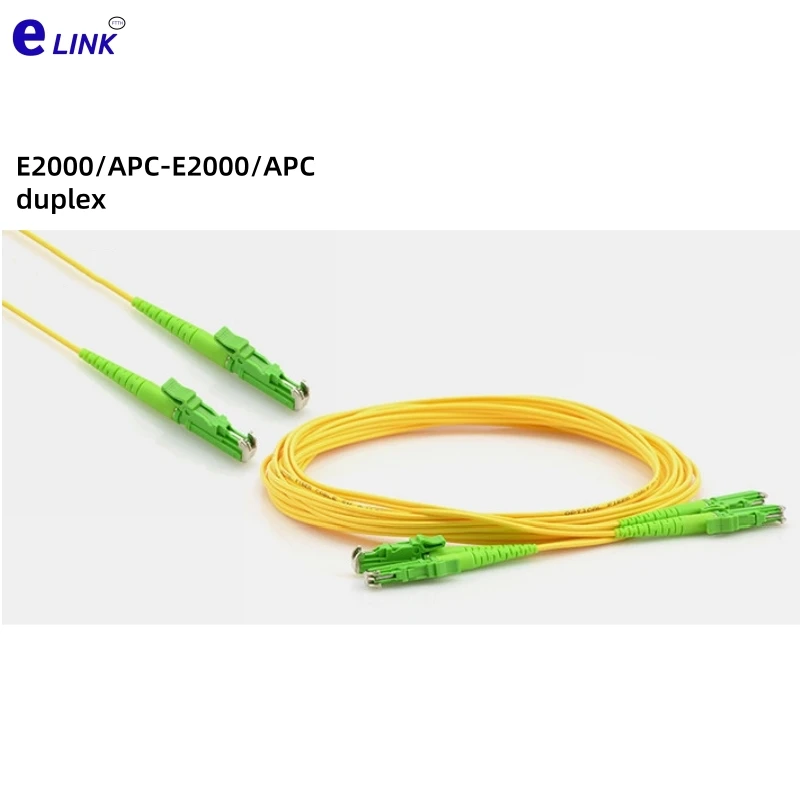

Photo Show:
