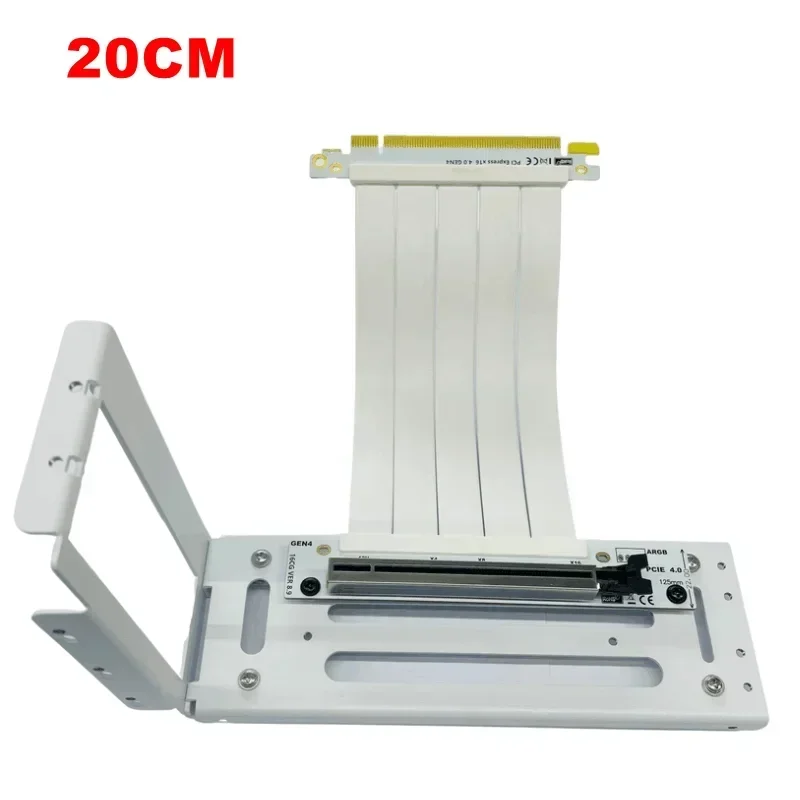

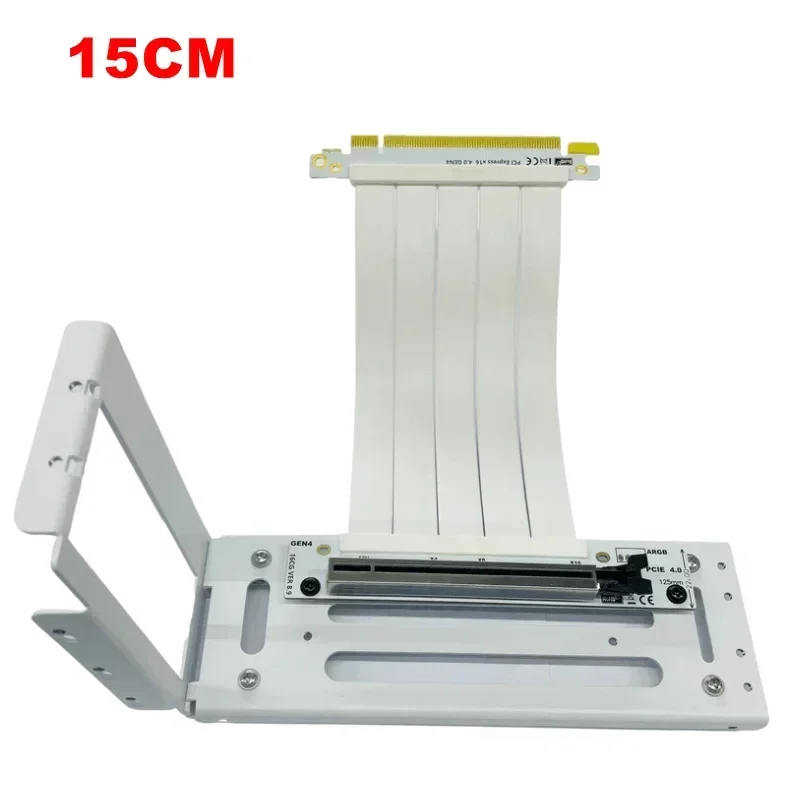

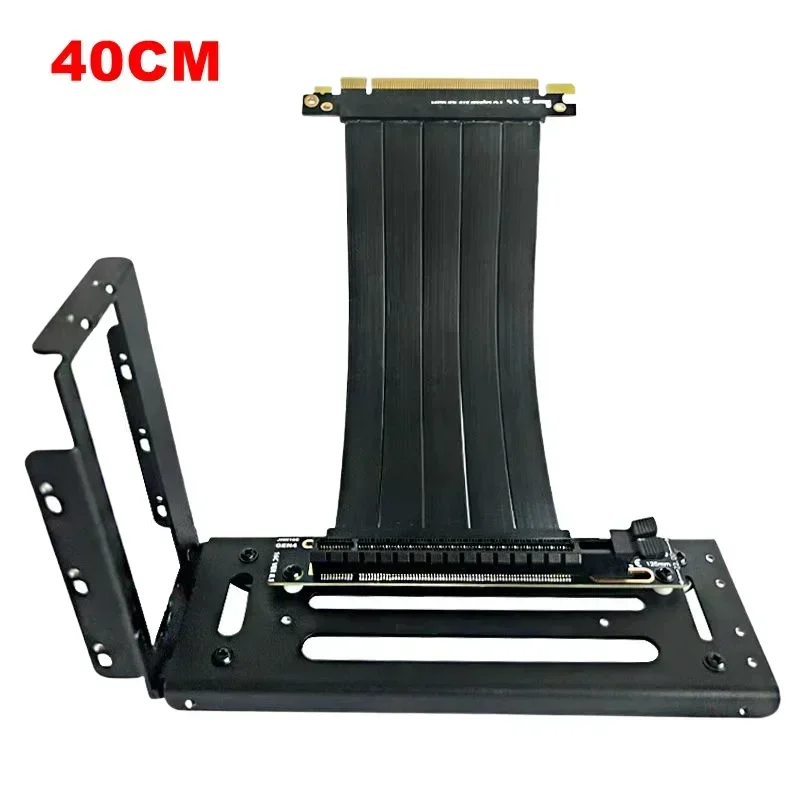

Brand New Riser White&Black PCIe x16 ATX PC Graphics Card Vertical Bracket GPU Holder+GEN4 PCIE 4.0/3.0 16X Riser Extender Cable

Ultra PCIe 4.0 Riser Cable Vertical GPU Upright Display Card Kit PCI Express X16 GEN4 Extender Video Card For GTX RTX Series GPU

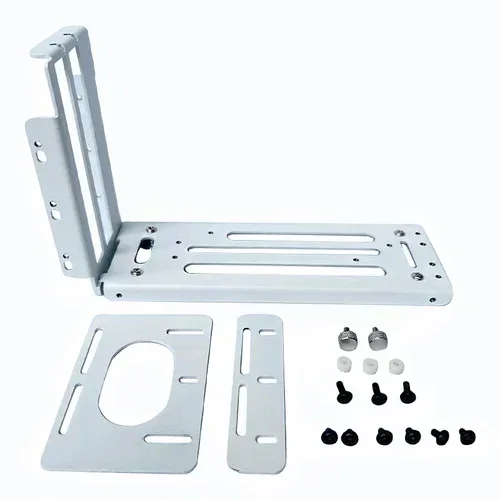

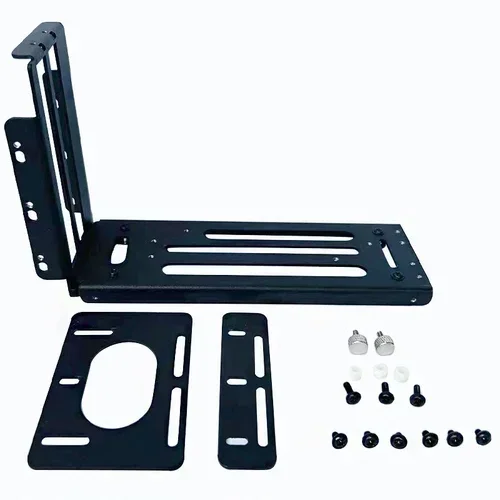

Bracket Instructions
Application: The mid-tower chassis modified graphics card is erected, used to fix the graphics card, it needs to be used with the graphics card extension cable, the graphics card is external
Scope; a chassis that supports more than 6 side panels, or the chassis has enough space for the graphics card to stand upright
Features: With magnetic suction, it can be attached to the chassis. The side baffles are adjustable from left to right, enough space for the installation of HDMI DP VGA cables. Chassis that supports fully removable graphics card blanks

Installation steps
1. Place the two white washers of the accessory package on the 12.5CM holes of the base respectively
2. Place the right-angle graphics card extension cable on the white washer and lock it on the base with screws
3. Lock the side cover, place it in the chassis, and fix the bracket side cover to the side cover of the chassis
4. Plug in the graphics card, plug in the video cable, and adjust the position

ATX-90° Right Angle Video Card Extension Cable ( PCIE 4.0 X16 )

Product Description:

1.PCIE 4.0X16 graphics card extension, 64GB\S two-way bandwidth.
2.silver plated shielded cable, soft silicone sheath sheath. It adopts all-plated silver wire core, aluminum foil independent shielding, and TPE sheath outer covering
3.PCIE 4.0 devices are supported and downwardly compatible with PCIE 3.0.
4. gold finger sinking process, thickness 5U, using high density and low impedance circuit board.
5. the use of Lotes(German-Italian) connector.
6. the cable can be bent and folded, suitable for vertical installation of the graphics card in the ATX large chassis.
7.support graphics card, network card, solid state drive, acquisition card, whole column card, etc.
8.the whole machine processing, UV glue + injection molding integrated protection welding.
9. circuit board dwarfing design, does not take up more space.
10. Automatic production, patch process, pulse process, dispensing process, injection process
11. 100% channel instrument test, 100% on-machine measurement
