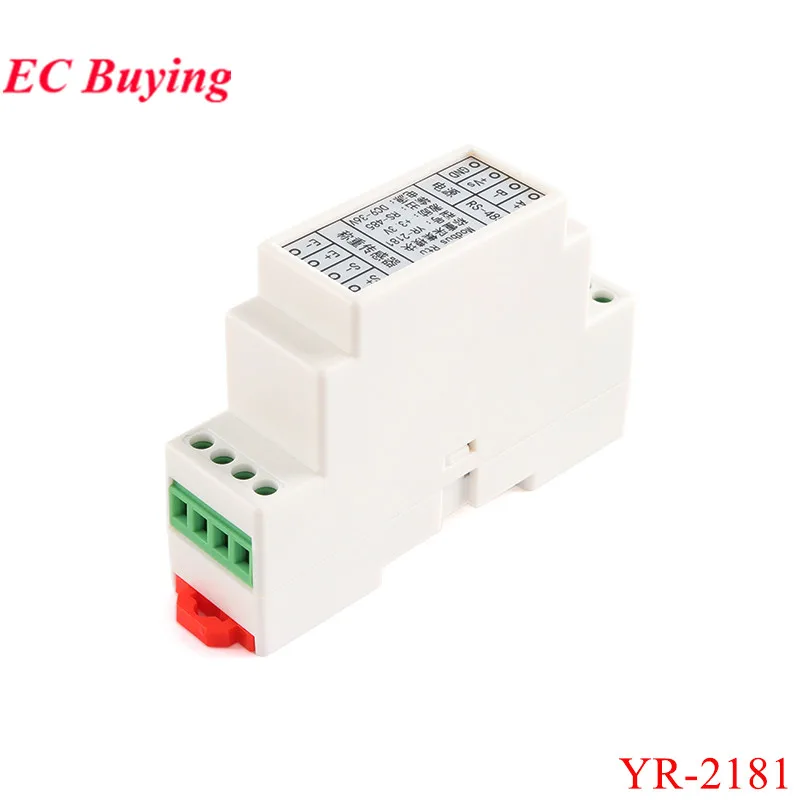

Báscula electrónica de riel guía YR-2181 2180, Sensor de presión de señal de pesaje, adquisición de conversión, interfaz RS485, protocolo Modbus Rtu

1.1 Overview

YR-2180 weighing A/D module, an independently developed industrial grade digital weighing A/D conversion module. Digital calibration, peeling, zeroing, zero point tracking, serial communication, etc.)

Improved hardware design and enhanced dynamic digital filtering function make the product more comprehensive and reliable, especially suitable for various industrial dynamic weighing occasions.

1.2 Performance indicators

A/D resolution

24 bit (AD chip HX710B)

A/D acquisition rate

10 times/second, or 40 times/second, (default to 10)

digital filter

Flexible setting, fast convergence and stability of weighing data, calibration, peeling, zeroing, zero tracking, etc

Static weighing accuracy

Sensor range 0-20kg, Max set to 3 decimal points, MAX display 20.000Kg

Sensor range 11-200kg Sensor, set to 2 decimal points for Most, MAX displays 200.00kg

Sensor range 201-2000kg Sensor, set to 1 decimal point for Most, MAX displays 2000.0kg

The sensor has a range of over 2000kg and cannot set a decimal point,

If four 200kg sensors are used, the total range is calculated at 800kg, and the decimal point is set to 1)

communication interface

New original (TI Texas Instruments Industrial Grade) 485 chip, model: SN65HVD3082EDR

Support TTL interface or RS485 interface, standard Modbus RTU communication protocol, measured value support long shaping data/floating point

Baud rate

1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 optional (default 9600, no verification)

Number of sensors

When powered by 5V TTL serial port: MAX can connect 1-4 350Q weighing sensors

When powered by 9V, the MAX can be connected to one 350Q weighing sensor (when powered by 9V, the temperature of the 78L05 power chip is about 25 "C)

When powered by 12V, the MAX can be connected to one 350Q weighing sensor (when powered by 12V, the temperature of the 78L05 power chip is about 30'C)

When powered by 24V: MAX can connect 1 to 1 350Q weighing sensor (when powered by 24V, the temperature of the 78L05 power chip is about 50 ° C)

Kind reminder: It is recommended to use 9V or 12V power supply, with optimal results

Power heating issue: Considering that this module is sensitive to the power supply, LDO is chosen as the power circuit to ensure the purity of the power supply.

External power supply

Support 5V-TL power supply or DC9-24V power supply. It is recommended to use DC9V or DC12V power supply.

Number of sensors

When powered by TTL-5V, 2-4 sensors can be connected. When powered by 12V, only one sensor can be connected.

Wiring instructions

Reference series: XH spacing: 2.5mm Pin structure: 1x4P Contact material: Phosphor bronze horizontal plug

Product size

45mm * 22mm in length and width, bare board without shell

work environment

Temperature -20~60C, relative humidity 10%~85%, non condensing
