Adaptador de fibra de SMA-FC híbrido hembra a hembra acoplador óptico ftth SM MM conector de fibra óptica envío gratis fábrica ELINK 5 uds

Email:sales@ever-elink.com

Skype:e_link60

Notice:

If you need other qty,such as 6,7,8...pcs,pls contact us to change.;

Pls choose DHL UPS Fedex TNT...if urgent.

5PCS SMA-FC fiber adapter female to female optical ftth coupler SM MM connector

Female to Male

flange

round

round

Female to Female

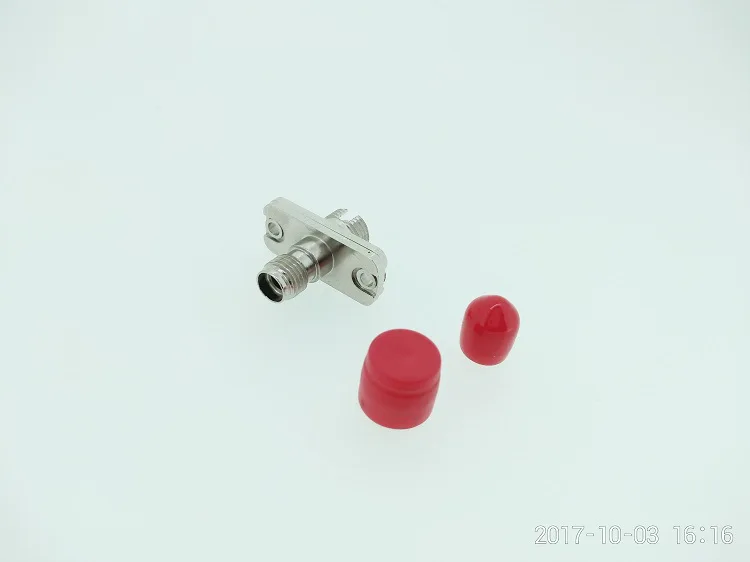

Pic Show:

Fiber Optical Adapter Series(Female-Female)

Fiber optical adapter uses a sleeve to precisely connect two side optical fiber connectors to allow optical signals to be transmitted at sufficiently low insertion loss. fiber optical adapter include: SC, LC, FC, ST, MU, D4, DIN, E2000, SMA and other series.

特点Features:

采用套管精密连接Precision connection with sleeve

单模与多模连接头均可互换使用SM and MM connector can be used interchangeably

低插入损耗，高回波损耗Low insertion loss，High return loss

良好的互换性与可靠性High interchangeability,High reliability,

符合IEC及ROHS标准要求Compliance with IEC and ROHS standards

机械尺寸精度高High precision of mechanical dimensions

技术参数Parameter

项目ITEM

单模(SM-9/125)

多模(MM-50/125)

多模(MM-62.5/125)

插入损耗Insertion Loss

≤0.5dB

≤0.5dB

回波损耗Retun Loss

PC≥45dB UPC≥50dB APC≥60dB

--

一致性Repeatability

0.1dB Max.

工作温度Temperature Range

-40℃~+75℃

使用次数Opertation Times

≥1000
