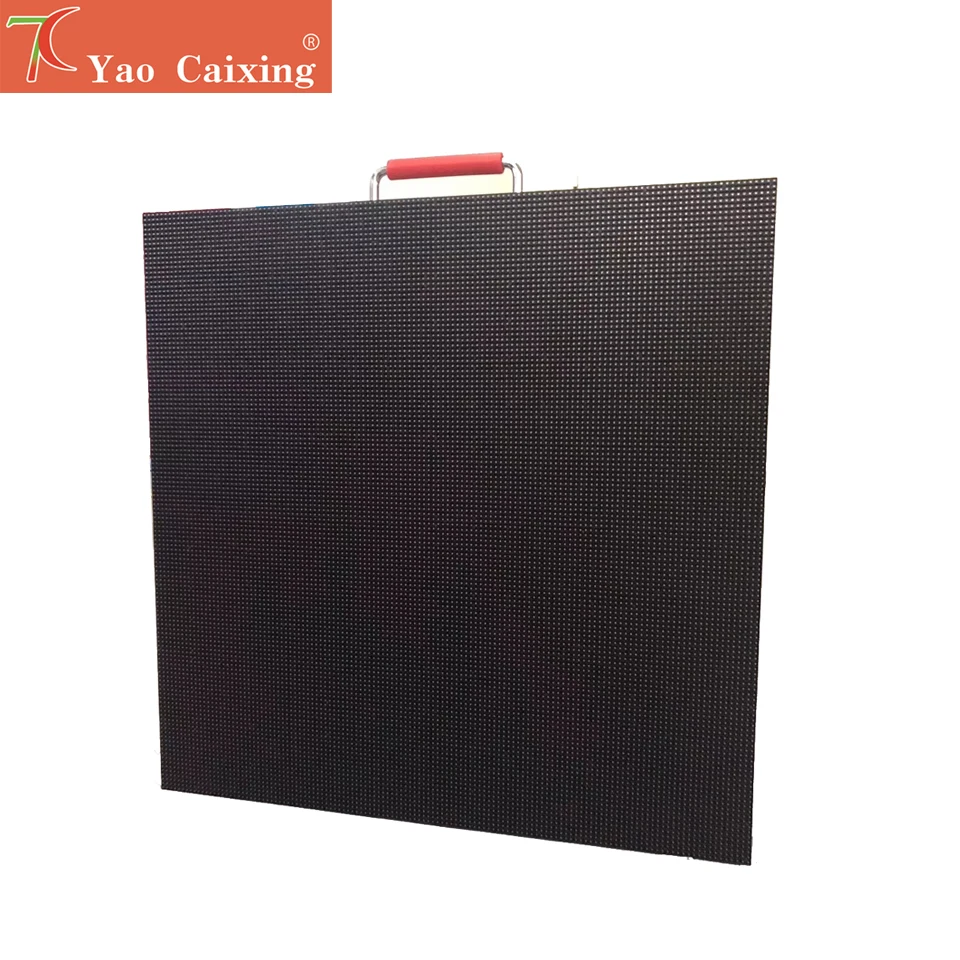

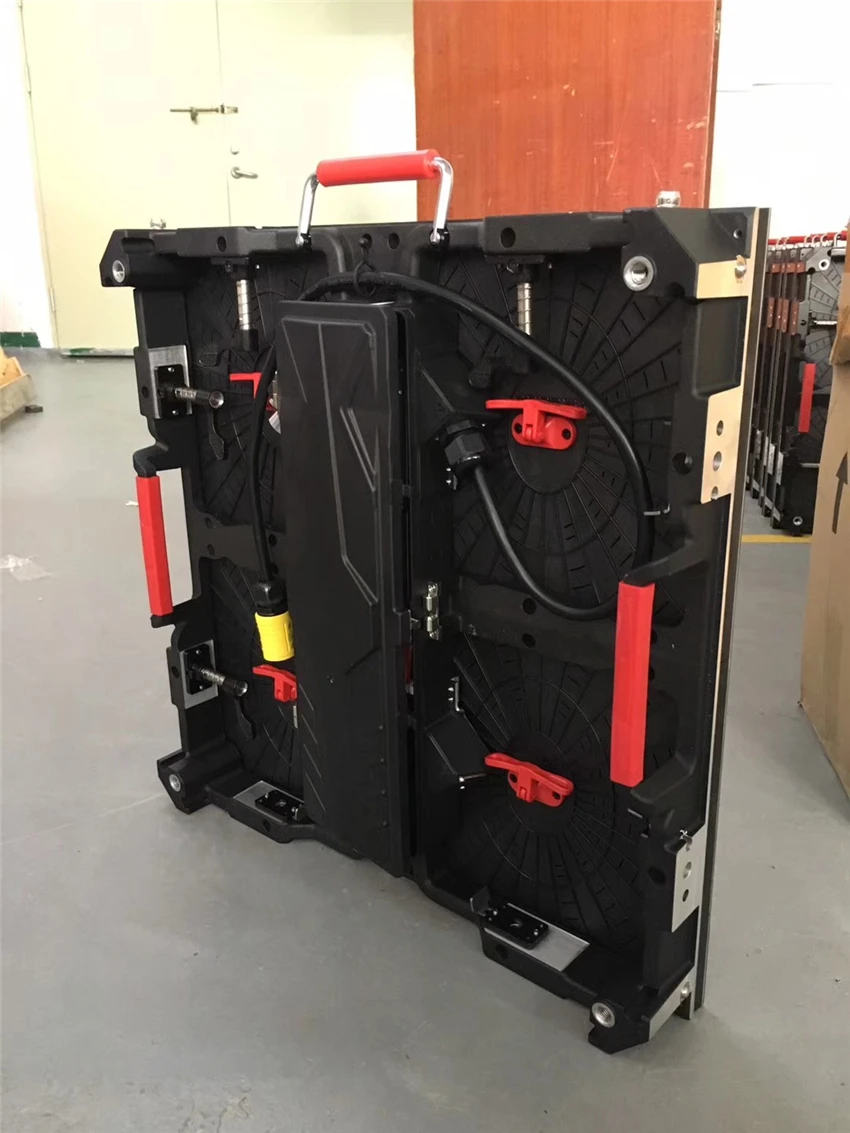

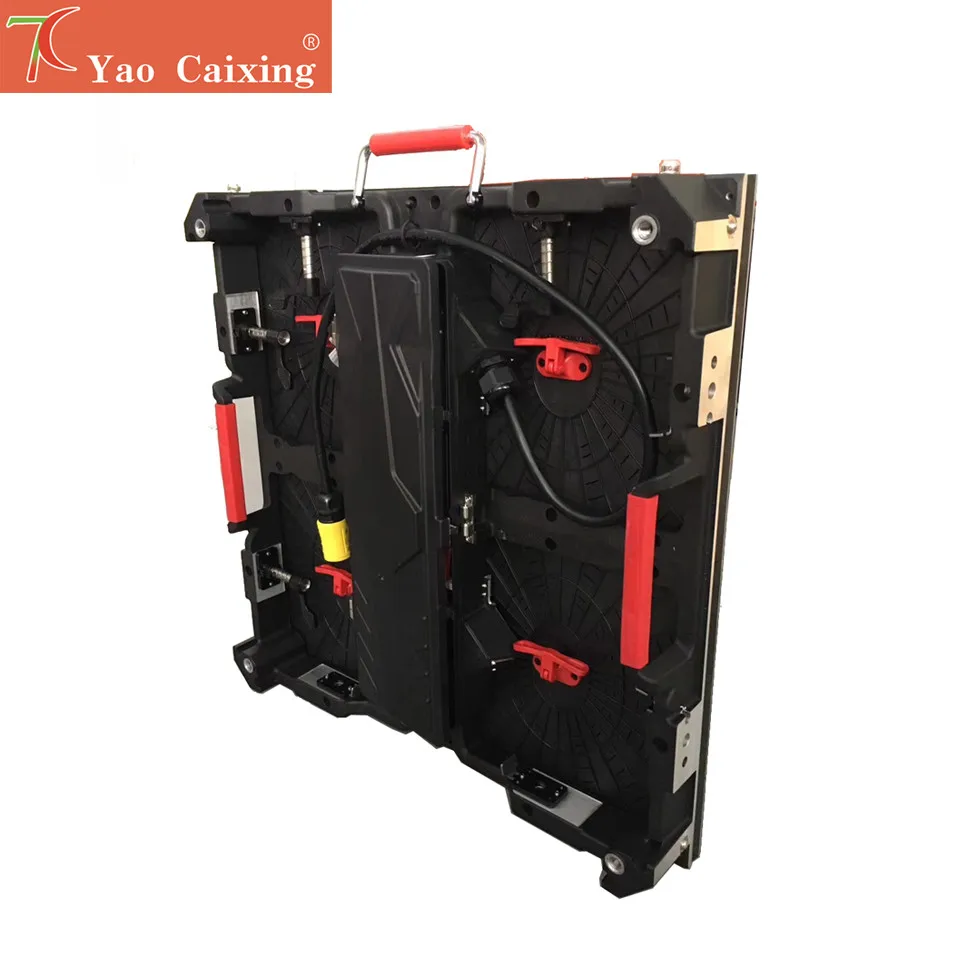

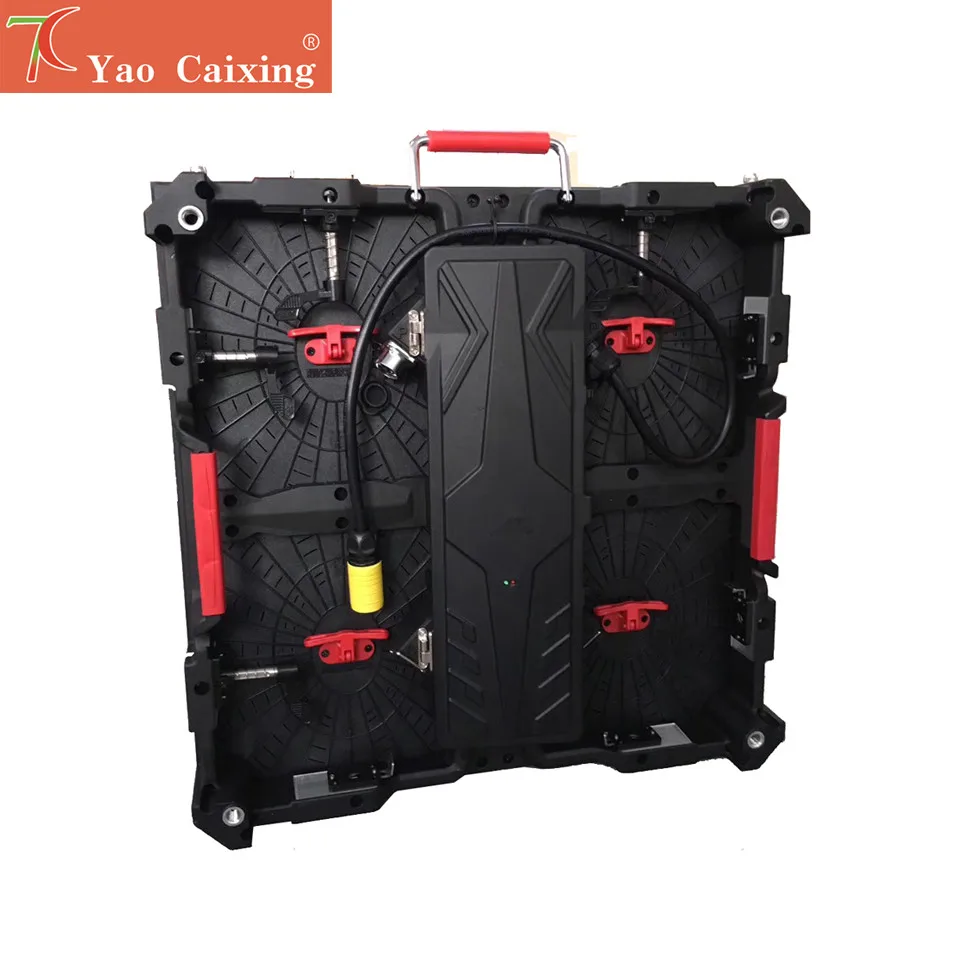

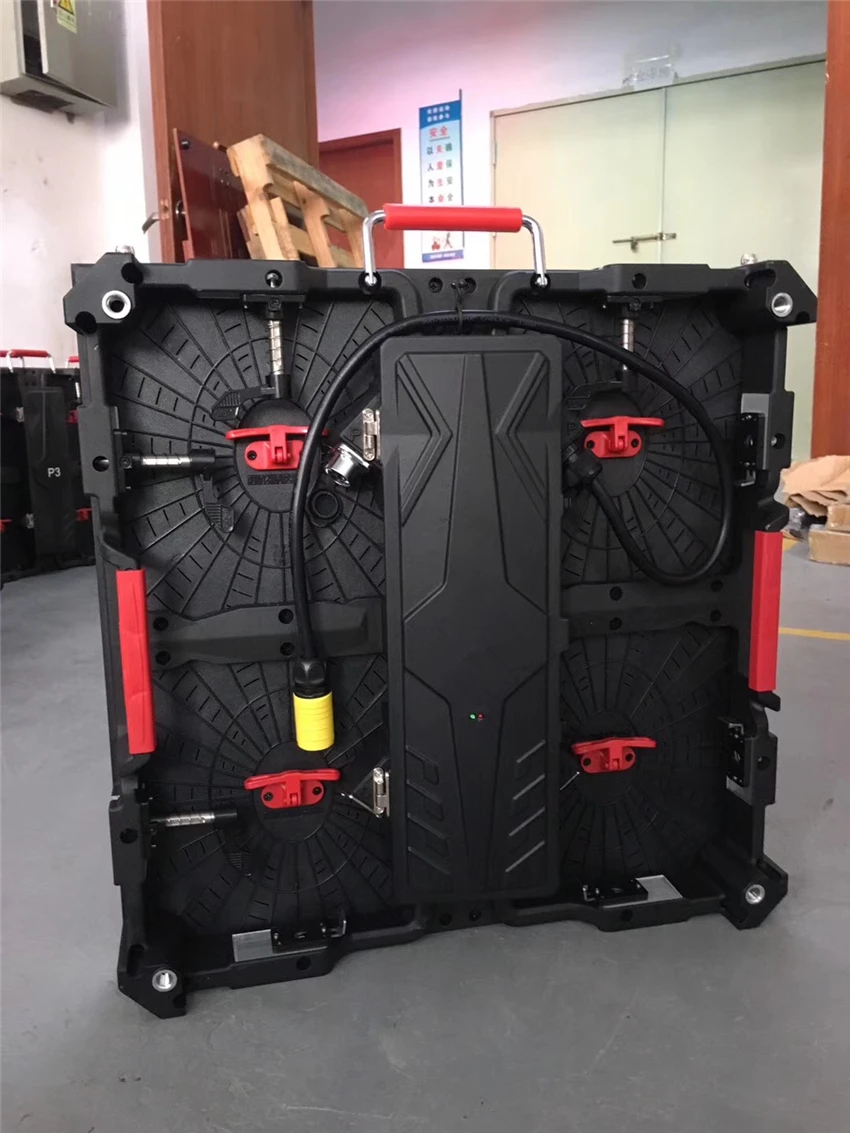

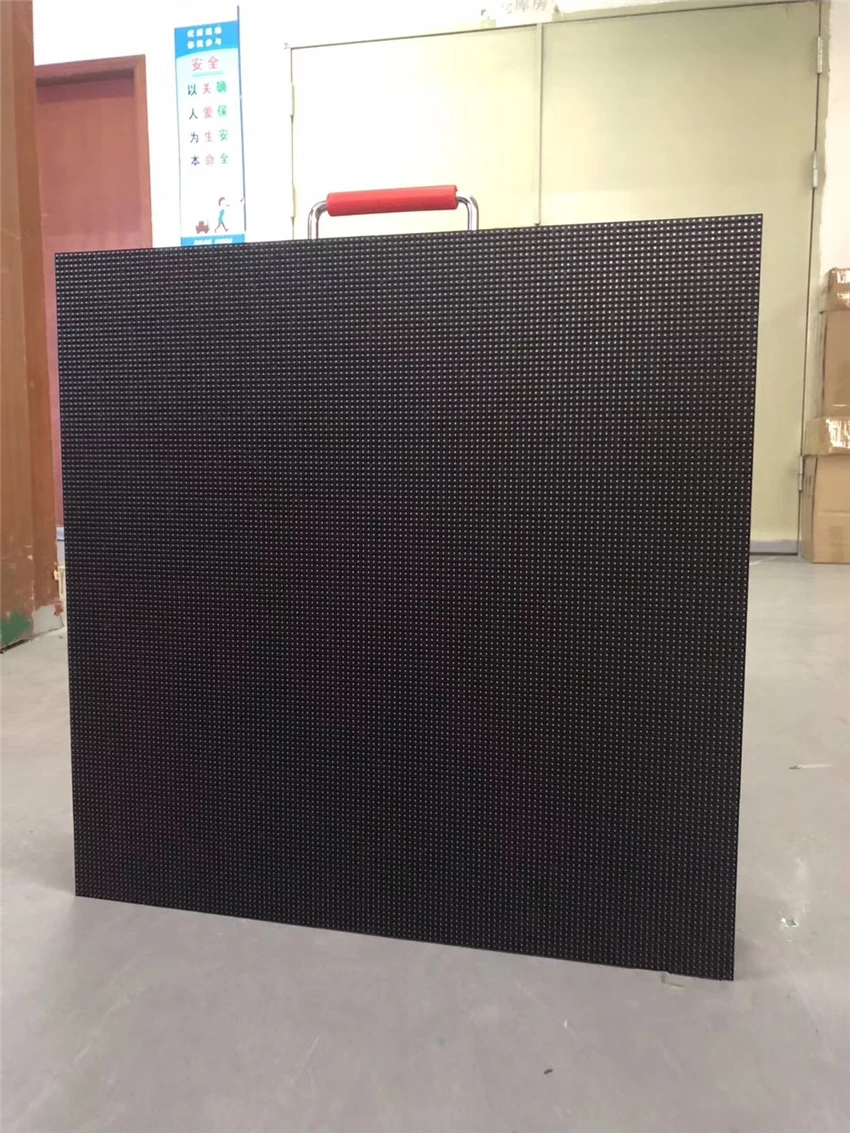

Mainterancia frontal P4.81 interior 500*500mm gabinete de equipo de aluminio fundido a presión pantalla de alquiler de pantalla led

Specification

Module Parameter

Size

250mm(H)×250mm(H)

Module Resolution

52(H)×52(V)

Pitch

4.81mm

Density

43.264 pixels/m²

LED Lamps

SMD2121

Driver IC

Normal Chips

Module Refresh

2560Hz

Mask

Pure Black mask-high contrast screen

Cabinet Parameter

Cabinet Resolution

104(H)×104(W)

Cabinet Size

500mm(H)×500mm(W)

Cabinet Weight

9.88kg

Driver Mode

Dynamic 1/16 scan , constant current driving

Cabinet Power

≤300w

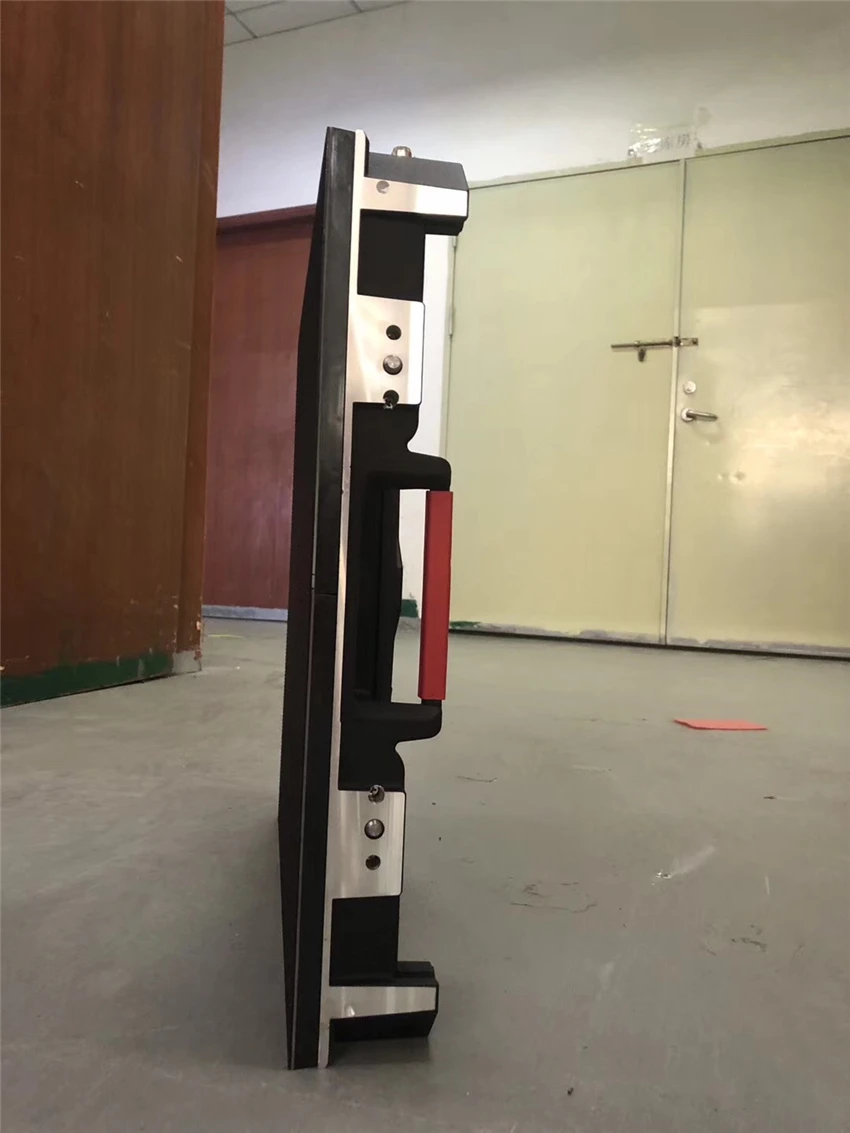

Cabinet Thickness

≤73mm+5mm

Electricity Parameter

Optical Ratings

Brightness Of White Balance

≥700cd/m²

View Angle

140 degree ( horizontal) 140degree(vertical)

View Distance

4m-220m

Gray Scale

65536

Display Color

3-in-1 RGB

Brightness Adjustment

100 levels

Power Supply

Operation Power

AC100-240V 50-60HZ Switch-able

Maxim Power Consumption

1200 w/m²

Average Power Consumption

600 w/m²

Control System

Correction Scale Level

16bits

Screen Refresh Frequency

1920Hz

Gamma Correction

-5.0—5.0

Support Input

HDMI,DVI,VGA,RJ45,USB,Serial Port

Control Distance

Ethernet cable 100m, optical fiber 5km

Support VGA Mode

800×600,1024×768,1280×1024,1600×1200,1920×1080

Color Temperature

5000-9300 adjustable

Brightness Correction

dot by dot, module by module, cabinet by cabinet

Reliability

Temperature

Storage:-35℃-+80℃ ; Operation :-25℃-+45℃

Humidity

Storage:10-70% RH ; Operation:10--60% RH

Operating Life

≥100,000 hours

MTBF

≥5000 hours

Continuous Working Time

≥48 hours

Protection Level

IP25

Out of Control Pixel Rate

0.03%

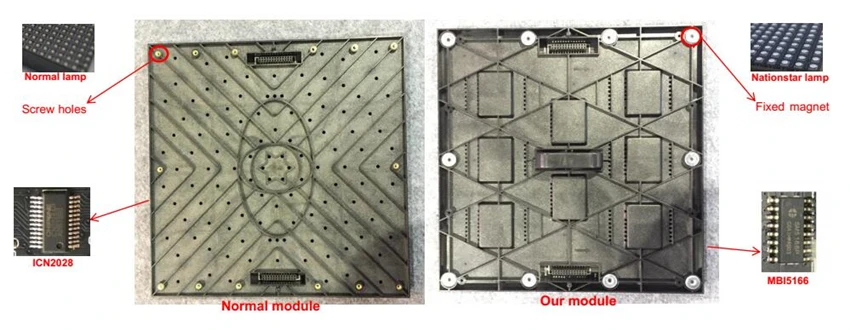

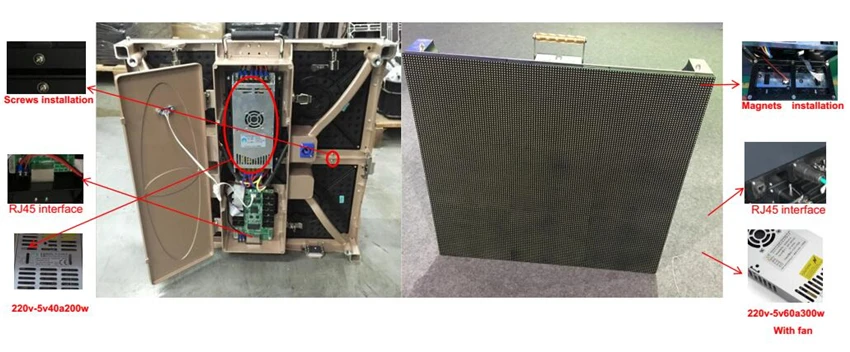

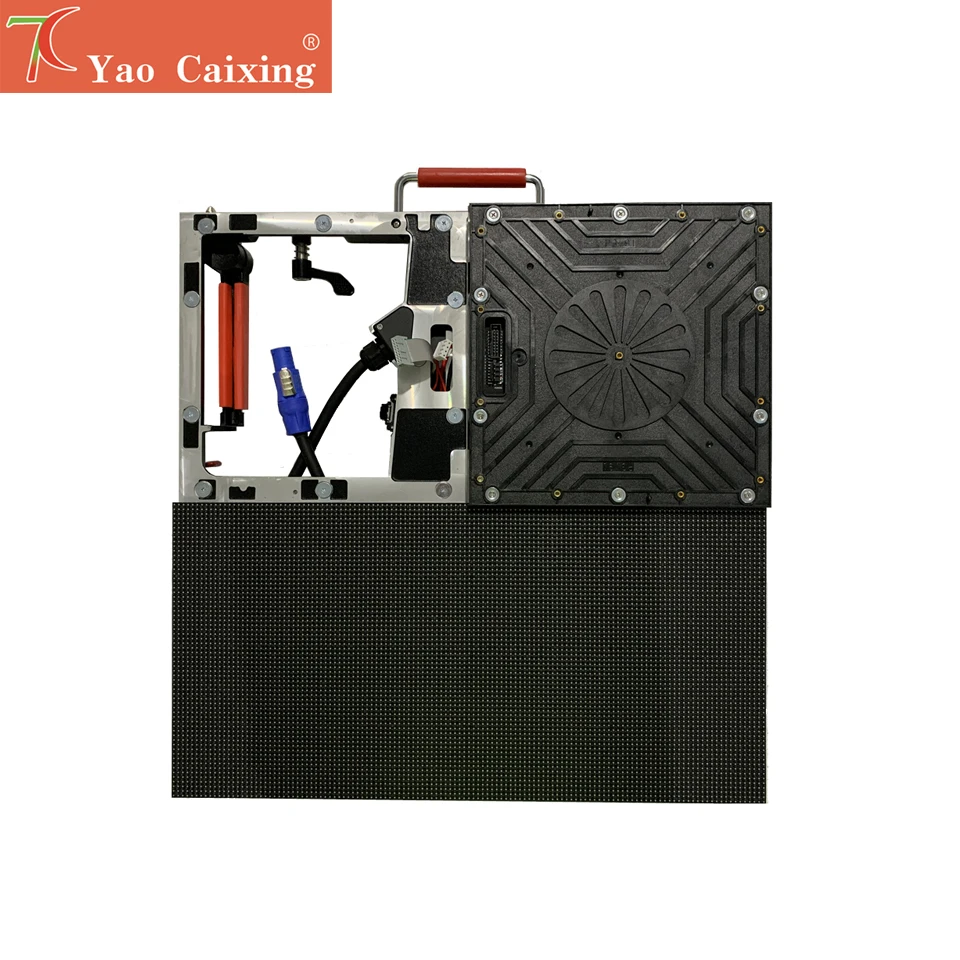

- Screw installation change from magnets installation to easy repair

- 200W power supply change 300w with fan keep the power enough

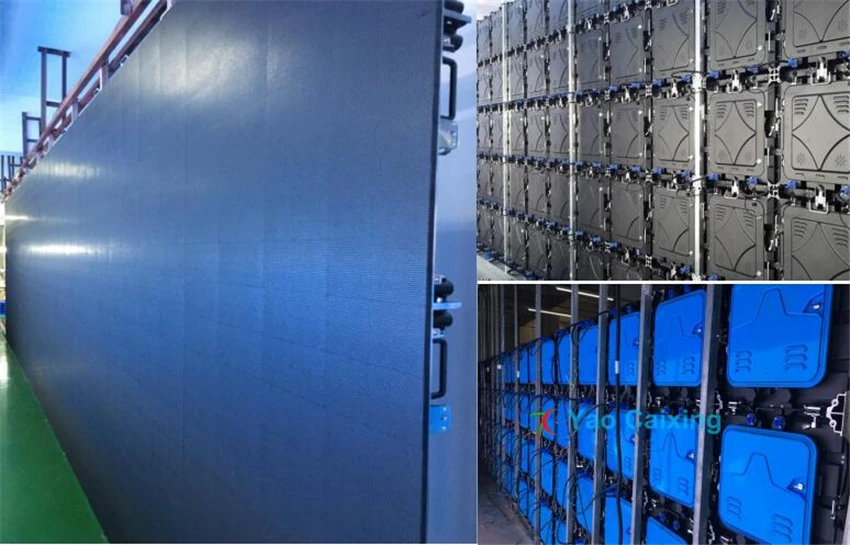

- Hang beams also be needed if you want hang the screen

- Besides P3.91,we also can use front maintenance cheaper for P4/4.81
