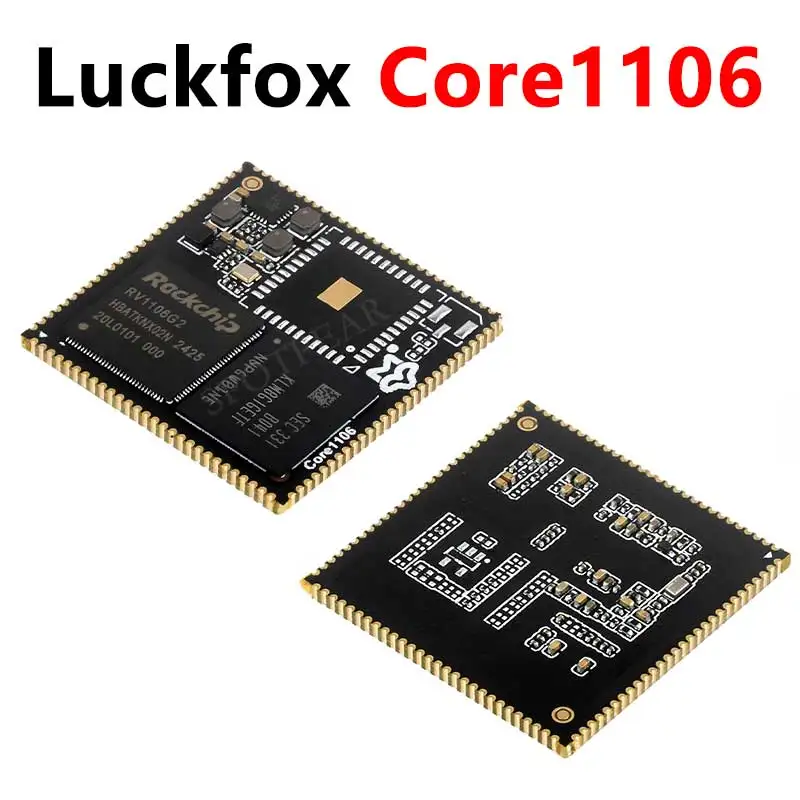

Luckfox Pico Core1106 RV1106 Linux Rockchip Pico Core Board

【Overview】

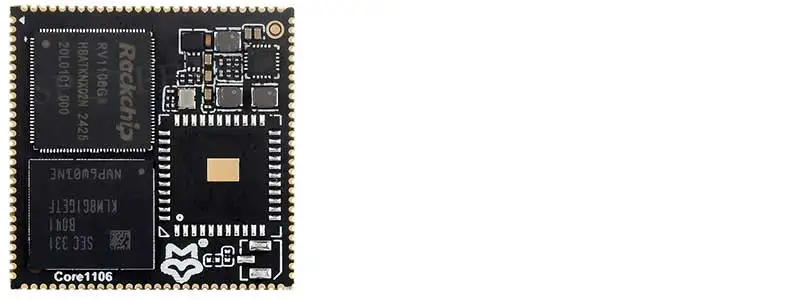

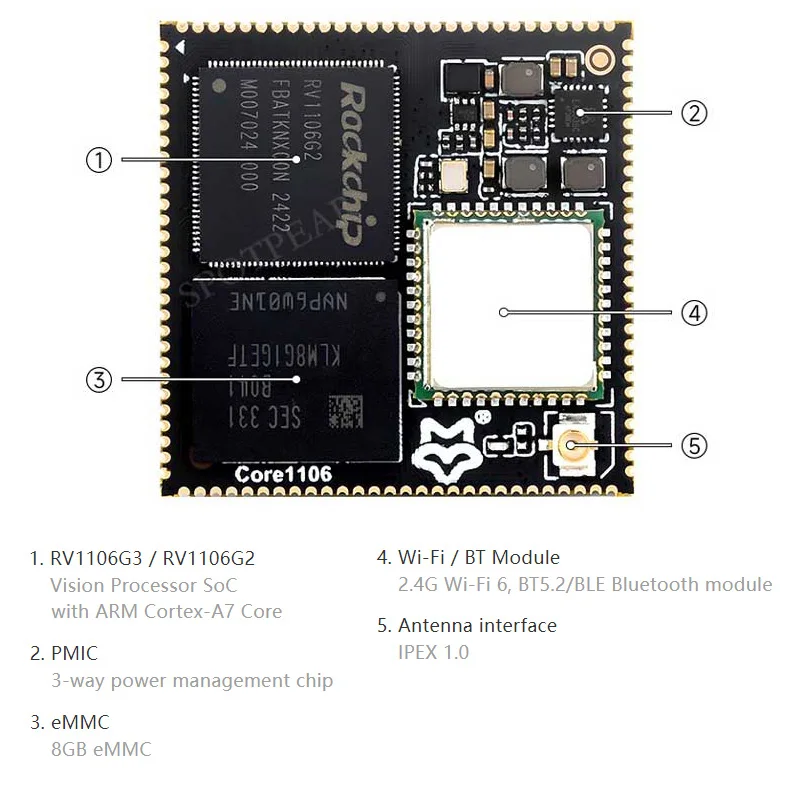

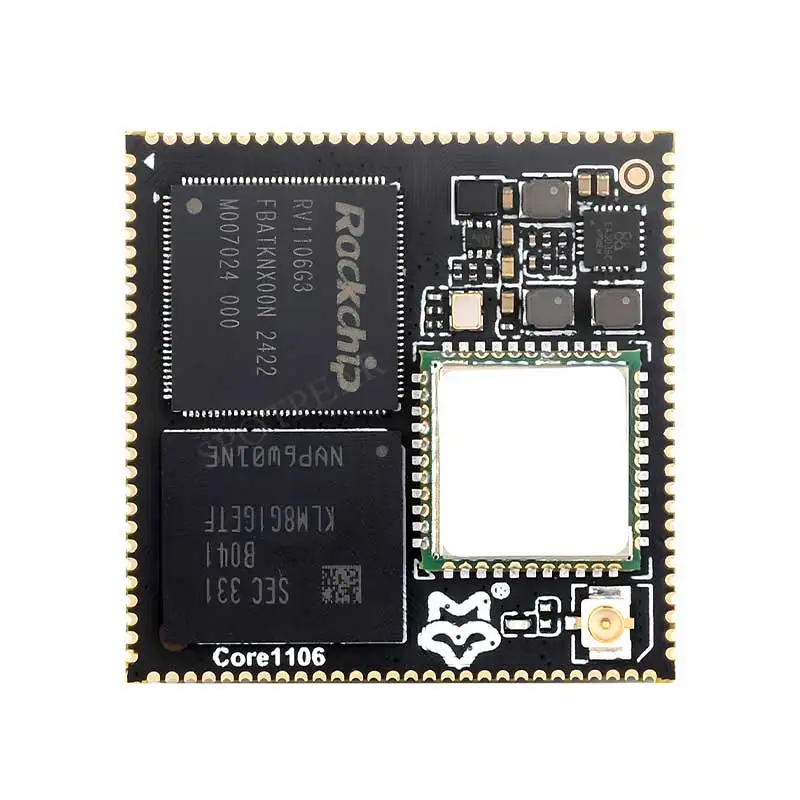

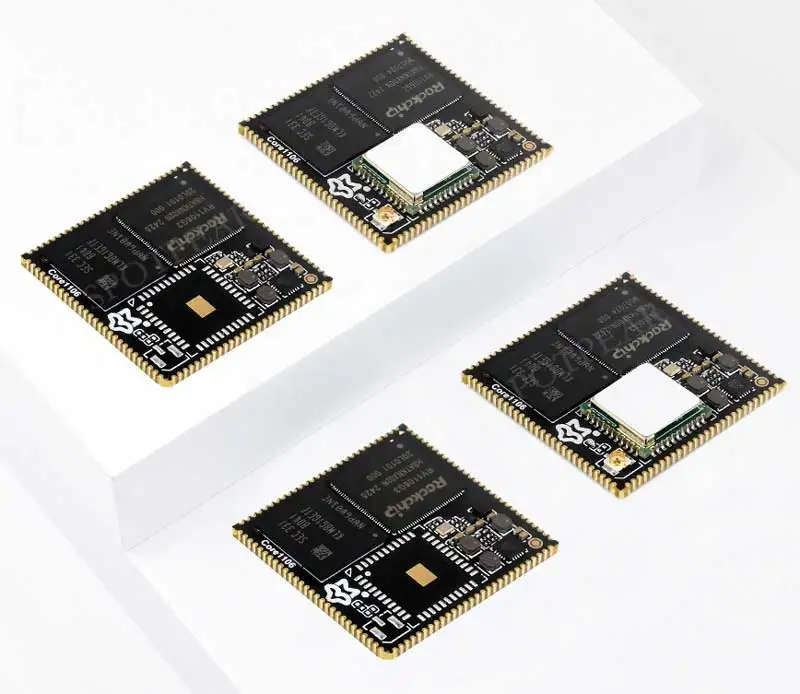

[] Core1106

[] Based on Rockchip RV1106 chip

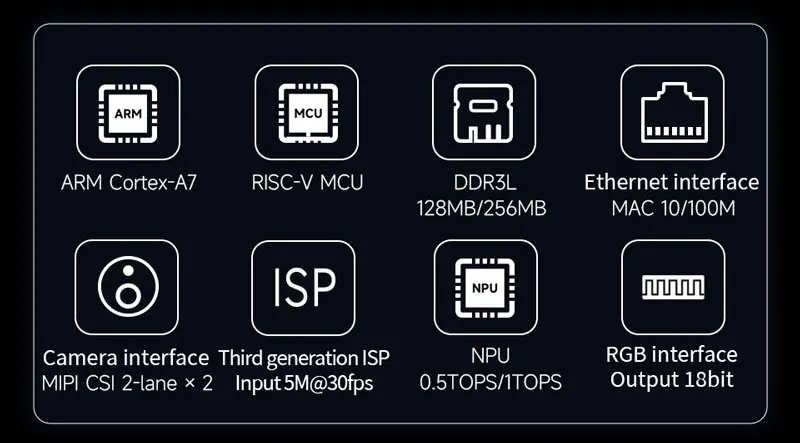

【Highly integrated, powerful performance】

[] Single-core ARM Cortex-A7 32-bit core, integrated with NEON and FPU

[] Built-in Rockchip's self-developed 4th generation NPU, high computing precision, supports int4, int8, int16 mixed quantization, RV1106G3 int8 computing power is 1TOPS, RV1106G2 int8 computing power is 0.5TOPS

[] Built-in Rockchip's self-developed 3rd generation ISP3.2, supports 5 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms

[] With powerful encoding performance, supports intelligent encoding, adaptively saves bitstream according to the scene, saves more than 50% bitrate compared to conventional CBR mode, and efficiently utilizes storage space while achieving high-definition image quality

【Wi-Fi 6 and Bluetooth modules】

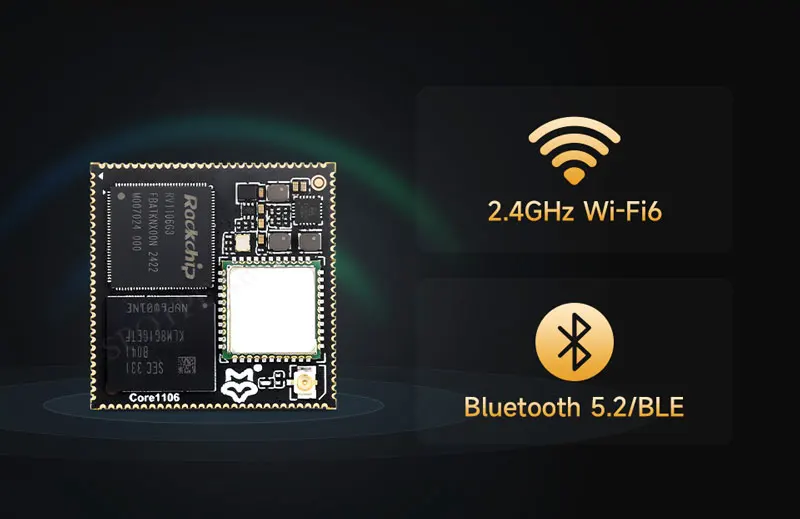

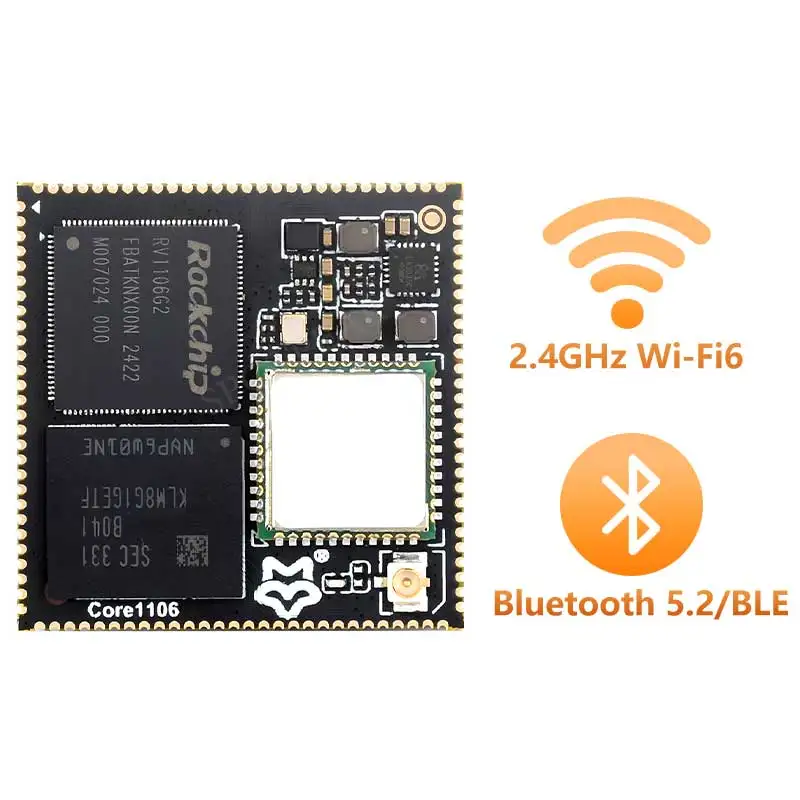

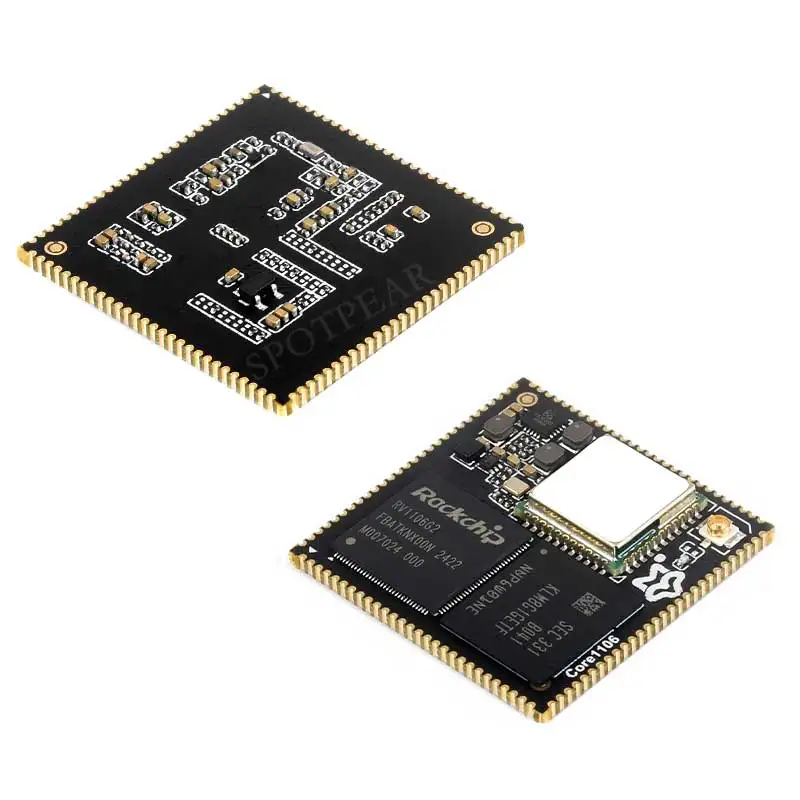

[] Onboard 2.4 GHz Wi-Fi 6 and Bluetooth 5.2/BLE modules

【Typical application areas】

【Development information provided】

Hardware Resource Table

Model

Core11060208

Core11061208

Core11060408

Core11061408

CPU

RV1106G2

RV1106G3

Processor

Cortex A7 @1.2GHz

NPU

0.5TOPS, supports int4, int8, int16

1TOPS, support int4, int8, int16

ISP

Support input 5M @30fps

Video Encoding

Hardware encoding, support MJPEG, H264, H265

RAM

128MB DDR3L

256MB DDR3L

Display Interface

Parallel RGB 18-bit × 1

Camera interface

MIPI CSI 2-lane × 2 Or MIPI CSI 4-lane × 1

Microphone interface

Analog differential MIC interface × 2

Audio output interface

LINEOUT × 1

USB interface

USB 2.0 Host/Device

Wi-Fi/Bluetooth

/

2.4 GHz Wi-Fi 6/ Bluetooth 5.2/BLE

/

2.4 GHz Wi-Fi 6/ Bluetooth 5.2/BLE

Ethernet interface

10/100M Ethernet controller and embedded PHY

Default storage medium

eMMC5.1 (8GB)

Additional Resources

I2S × 3，I2C × 5，SPI × 2，SDIO × 2， ADC × 2， UART × 6， PWM × 12

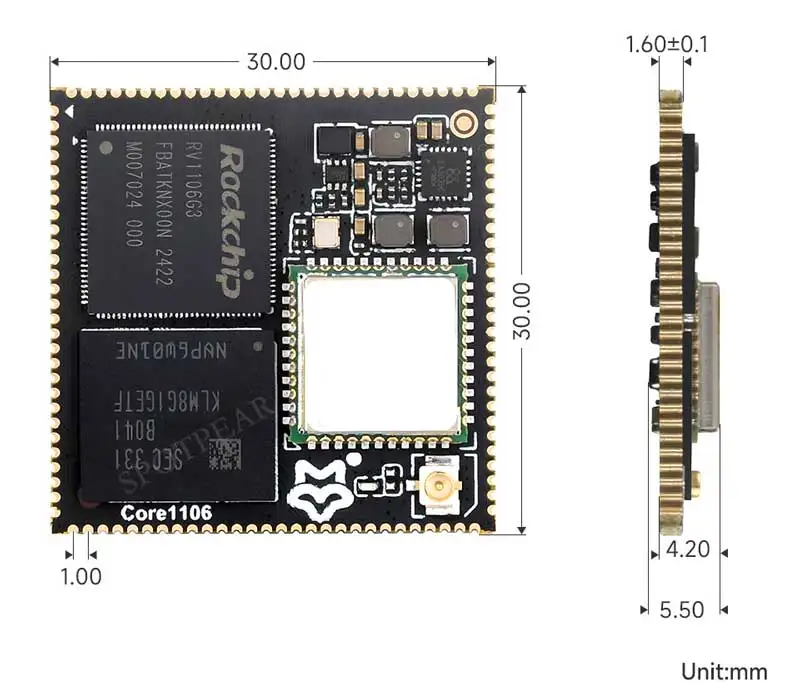

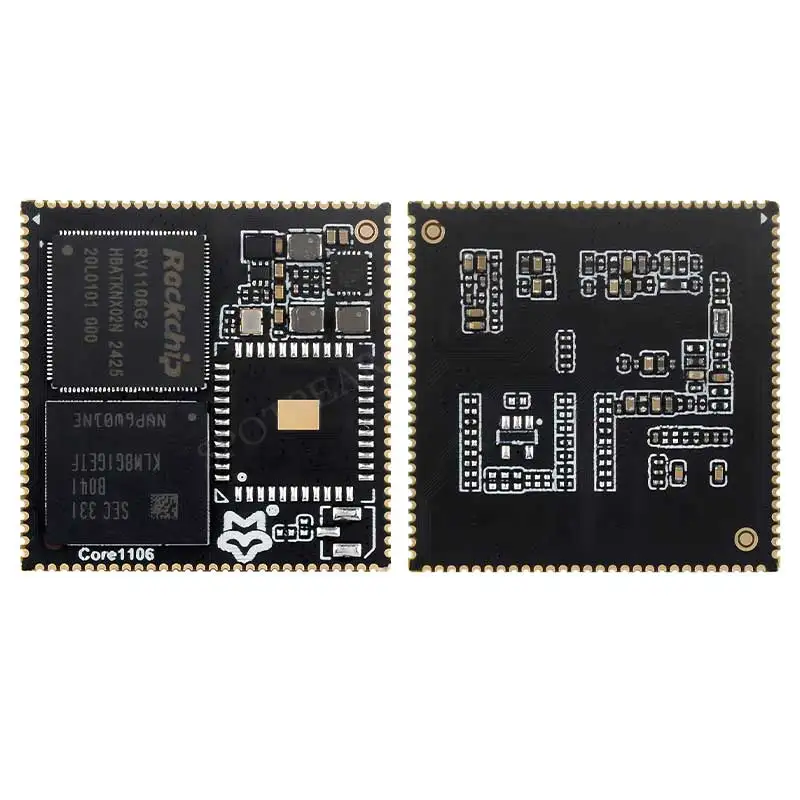

Core board size

30 × 30 (mm)

Stamp Holes

112 Pin

Some pin resources are reused. For pin definitions, see wiki

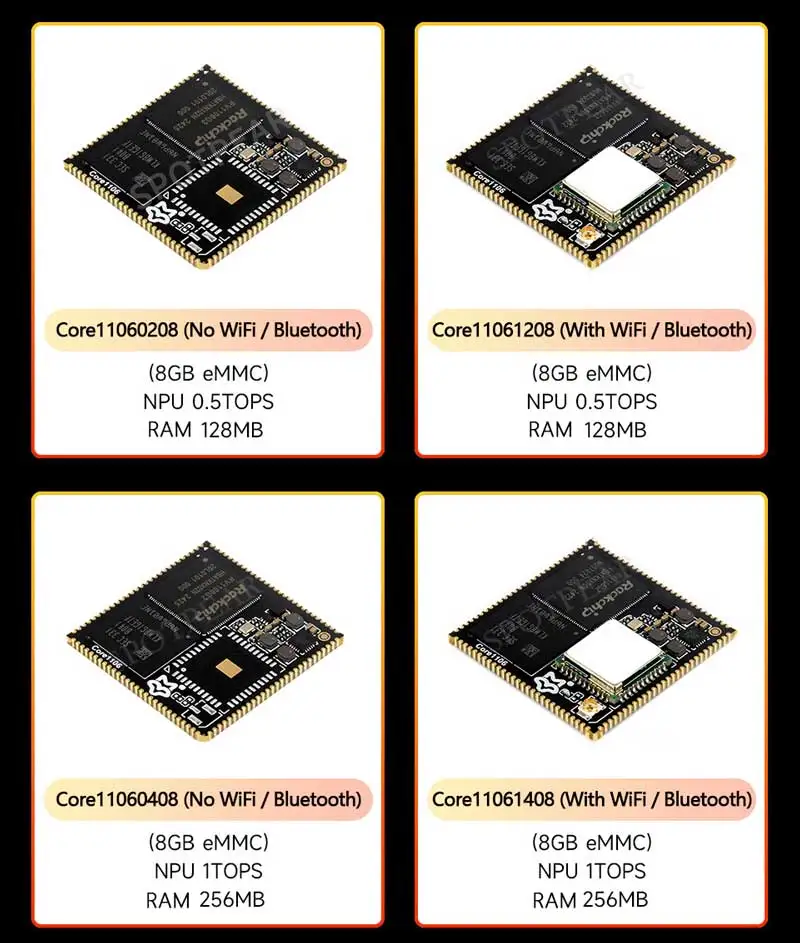

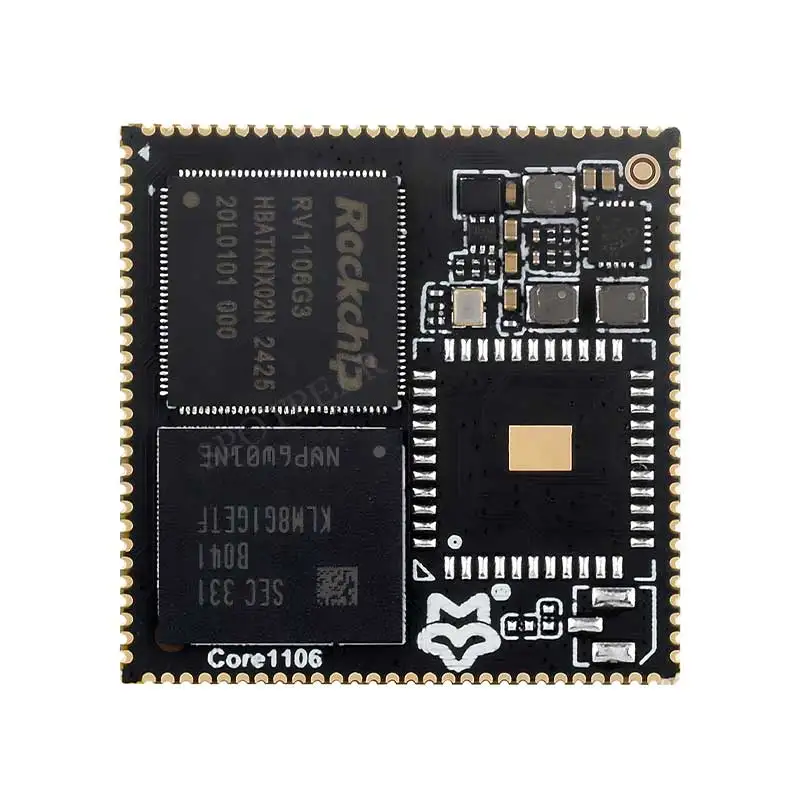

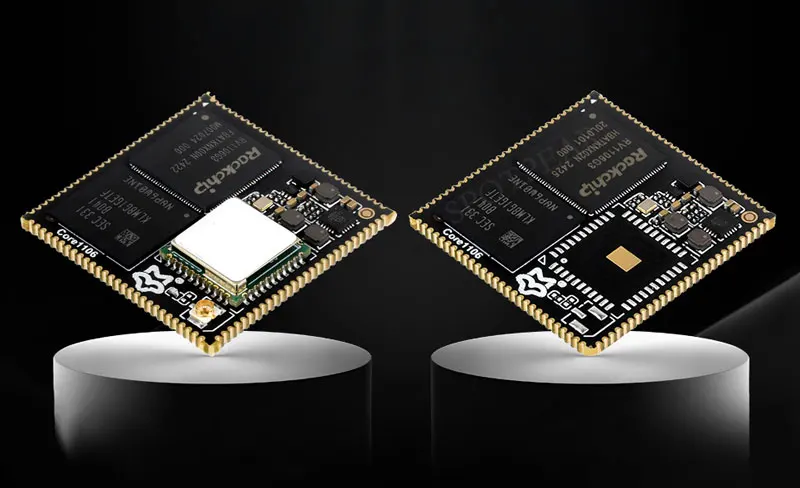

[] Core11060【RAM128/256-No Wifi】

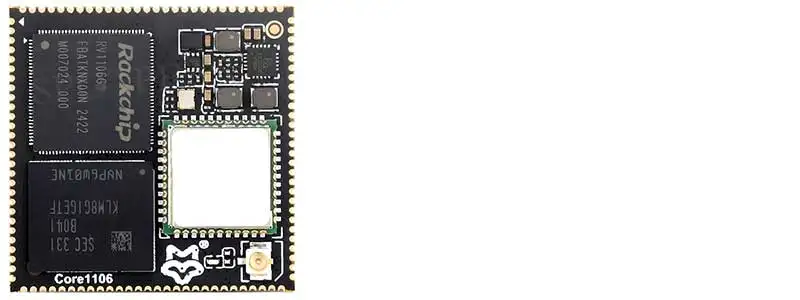

[] Core11061【RAM128/256-With Wifi】
