Conectores Sellado

Product description：

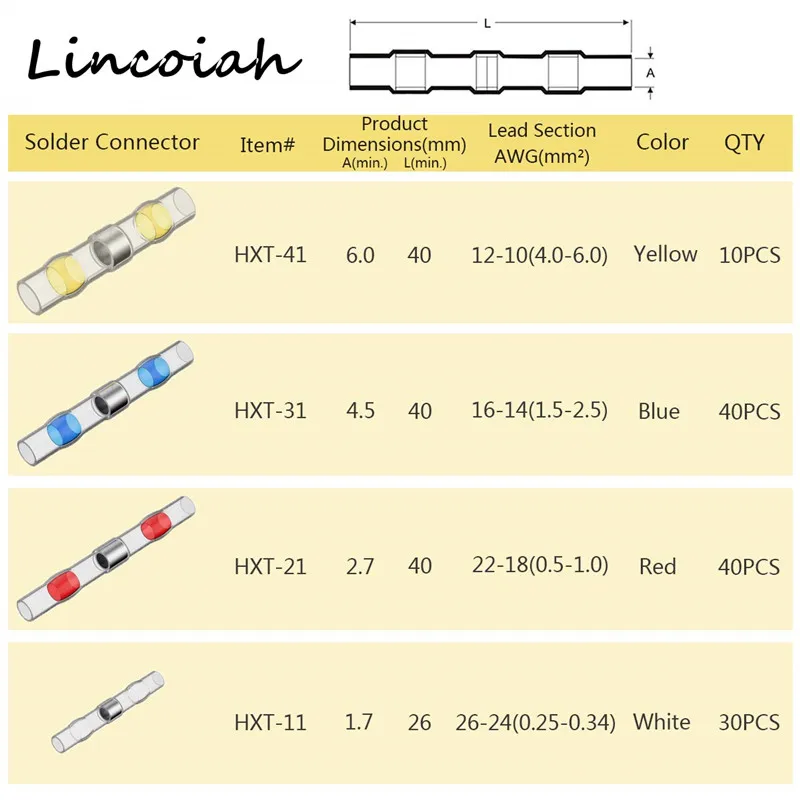

Sizes:

Yellow Connectors: Diameter 6.0 mm, Cable cross-section: 4.0-6.0 mm⊃2;(A.W.G: 12-10)

Blue Connectors: Diameter 4.5mm, Cable cross-section: 1.5-2.5 mm⊃2;(A.W.G: 16-14)

Green Connectors: Diameter 3.4 mm, Cable cross-section: 0.75-1.5 mm⊃2;(A.W.G: 18-16)

Red Connectors: Diameter 2.7 mm, Cable cross-section: 0.5-1.0 mm⊃2;(A.W.G: 22-18)

White Connectors: Diameter 1.7 mm, Cable cross-section: 0.25-0.34 mm⊃2;(A.W.G: 26-24)

SOLDER SEAL WIRE CONNECTOR --SOLDER AND SEAL IN ONE QUICK CONVENIENT STEP

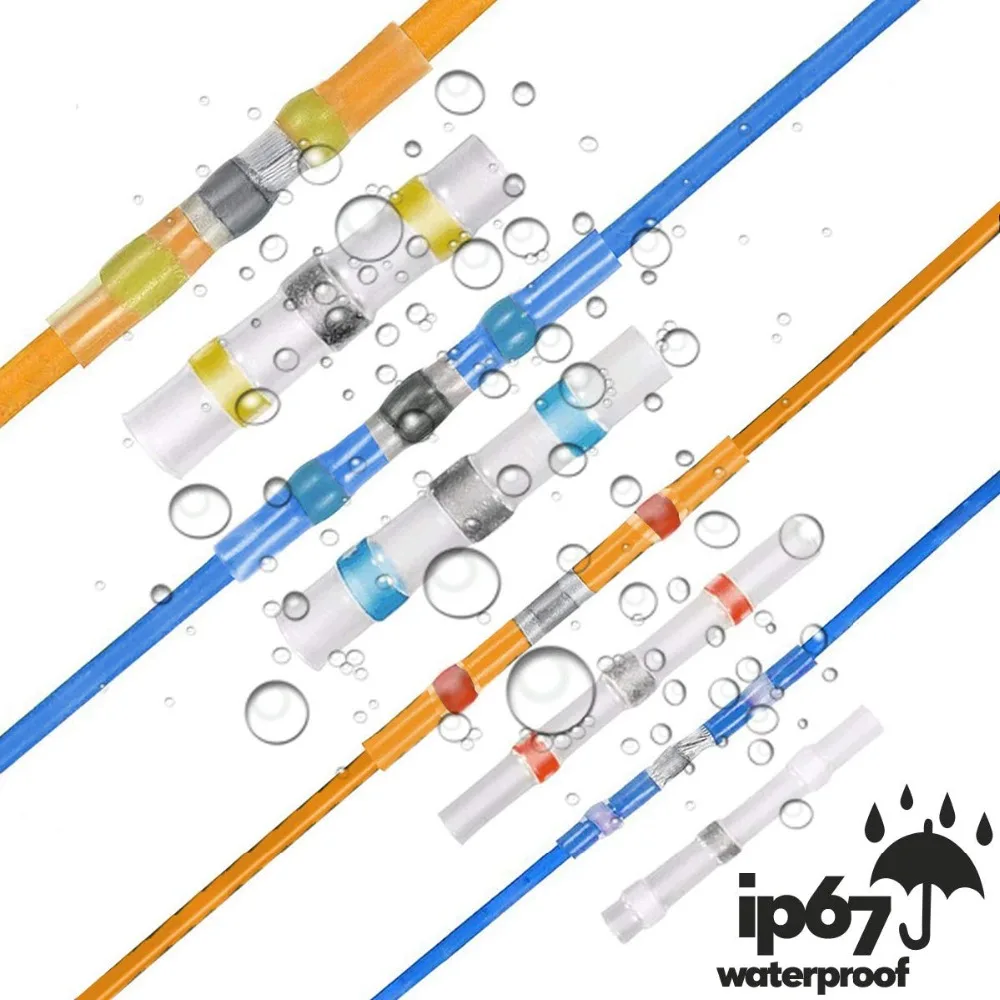

1.Waterproof Solder Seal Wire Connectors would prevent wires from corrosion.

2.Solder and Hot Melt Adhesive inside can be perfectly Waterproof.

3.Transparent Sleeve of the Solder Seal Wire Connectors provide Visual Inspection.

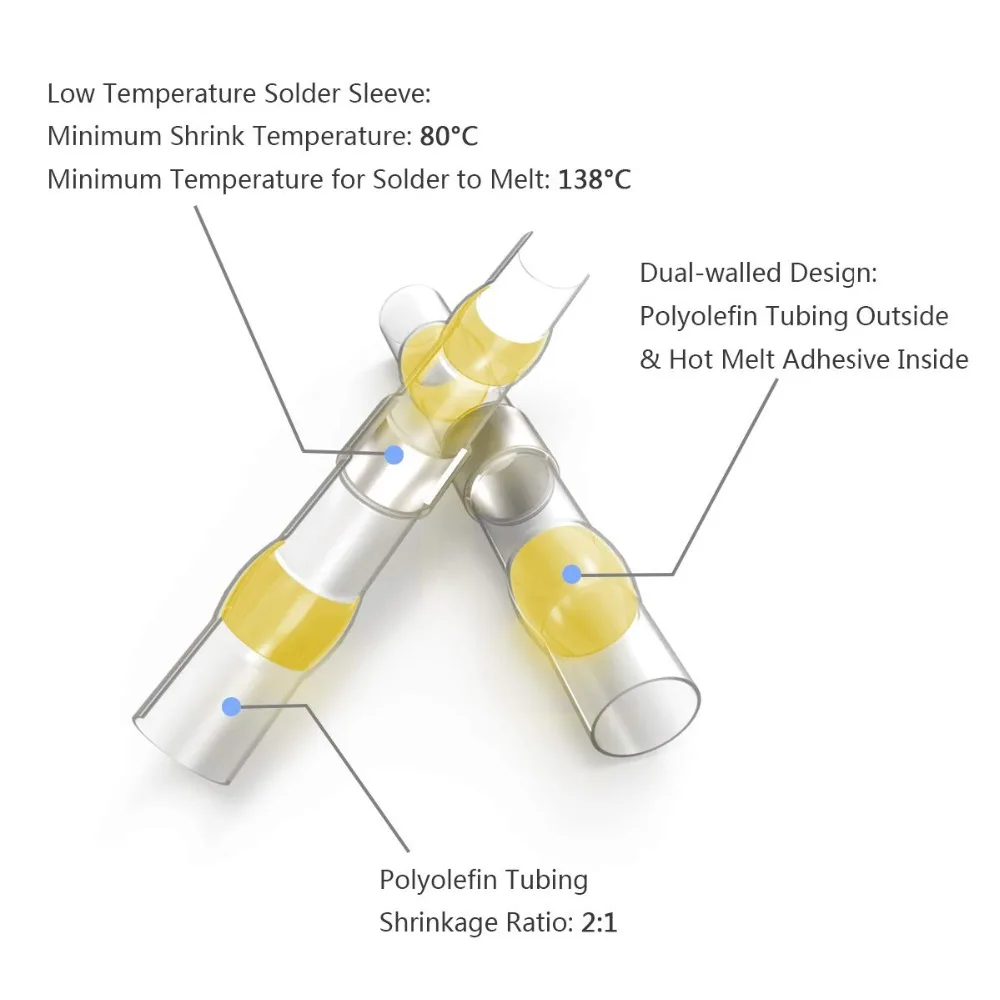

4.Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside

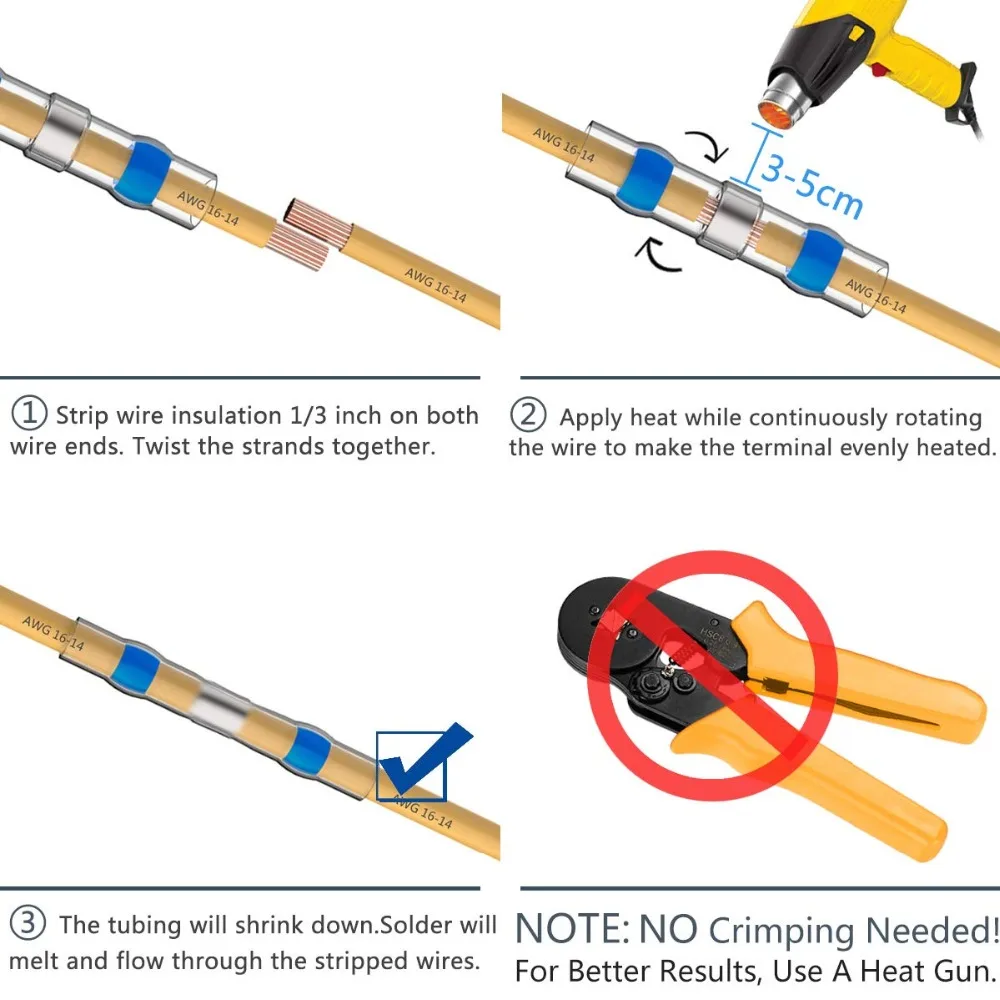

5.You can control the operating temperature and heating time.

Compliant with ROHS, ISO 9001:2008, SGS and CE standards.

Operating temperature range:

Shrinkage ratio is 2:1

Minimum temperature for solder to melt: 138°C (280 ℉)

Minimum shrink temperature: 80°C (176 ℉)

Operating temperature :-55℃ - 125℃

Note: The Minimum and Maximum Temp. are the temp. for connector surface.
