Hi-Link Fingerprint Recognition Module ZW20 ZW3020 High Resolution Capacity Touch Fingerprint Smart Door Lock/Attendance System

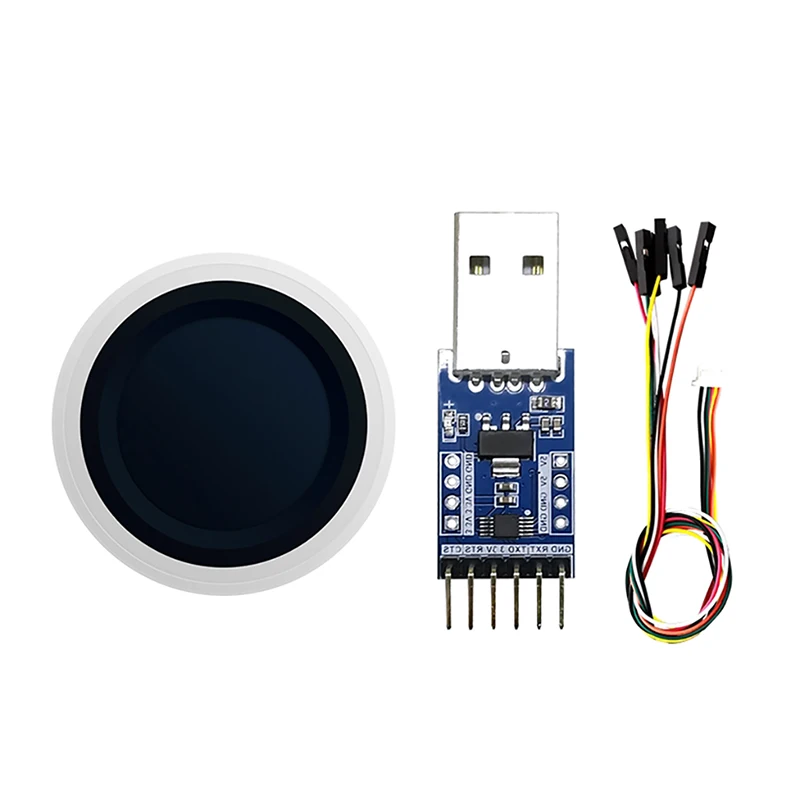

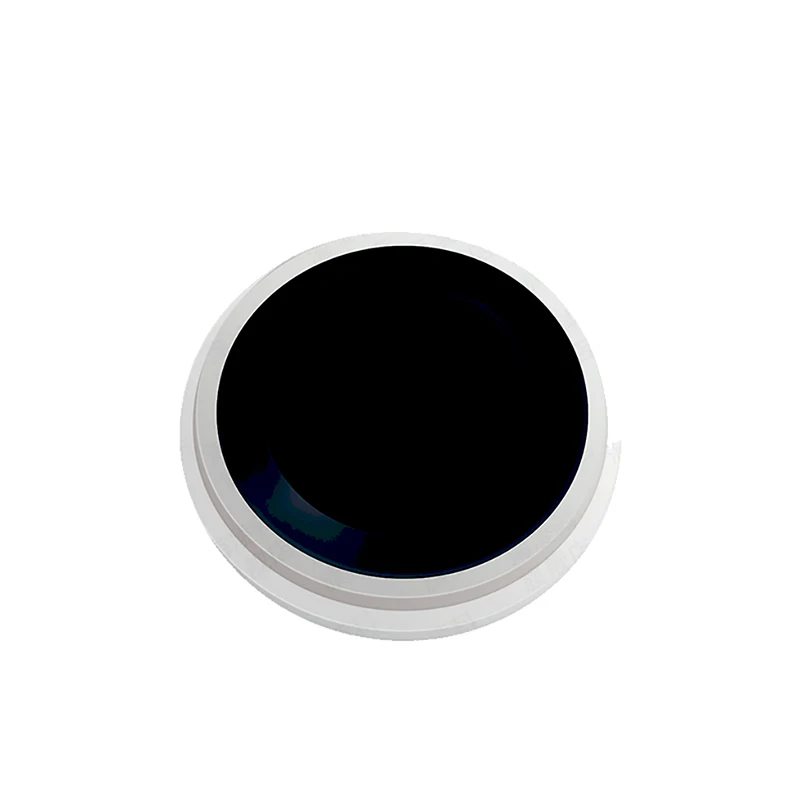

ZW20:
Product Description
ZW20 is a low-power capacitive fingerprint identification module, which consists of an active semiconductor fingerprint acquisition SENSOR
It is composed of active semiconductor fingerprint acquisition SENSOR and fingerprint identification processing chip.
Adopting LGA package, it supports 360° arbitrary direction recognition with 508DPI resolution.
High signal-to-noise ratio, low power consumption, fast response, ultra-low rejection rate and false recognition rate, can be applied to smart door locks, safes, POS machines and identity authentication systems.
Product Parameters
Module size: φ21mm
Recording times: 3~8 times
Resolution: 108×108pixel
Resolution: 508DPI
Interface protocol: TTL serial port
Communication Baud Rate: Default Baud Rate 57600bps/1 Start Bit/1 Stop Bit 3.3VTTL level
Interface and wire sequence: 1.0mm × 6Pin horizontal paste
Fingerprint library capacity: 100
Storage temperature and humidity: -40℃~+125℃; 45%~95%RH
Operating temperature and humidity: -40℃~+85℃; 45%~85%RH
False recognition rate: 0.001%
Rejection rate：=5%
Comparison mode: 1:N
Standby current(sensor)~luA
Operating current (algorithm MCU): ~14mA
ESD level: non-contact discharge ~15KV / contact discharge ~8KV

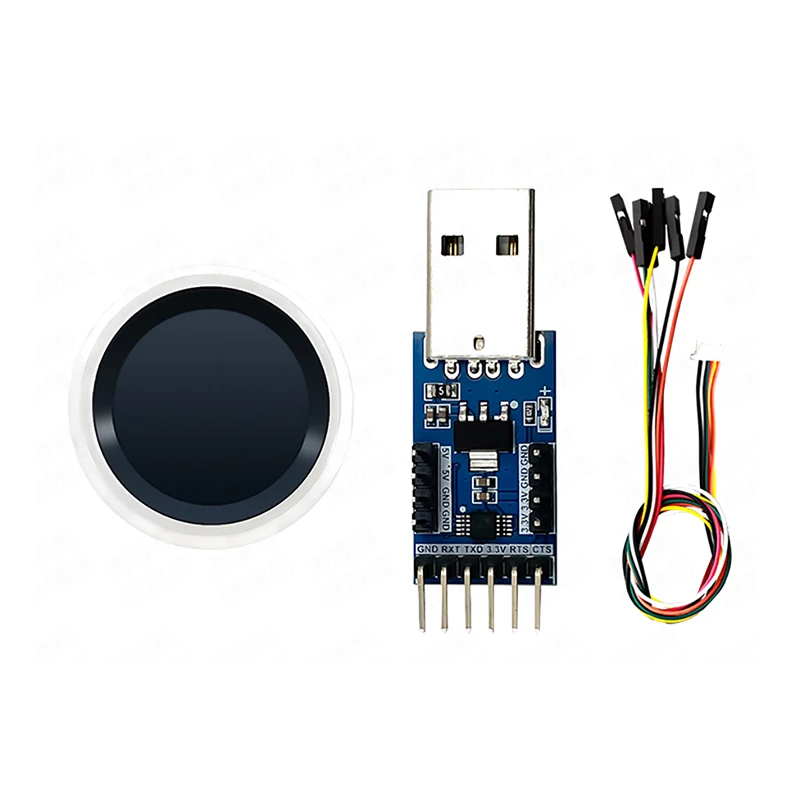

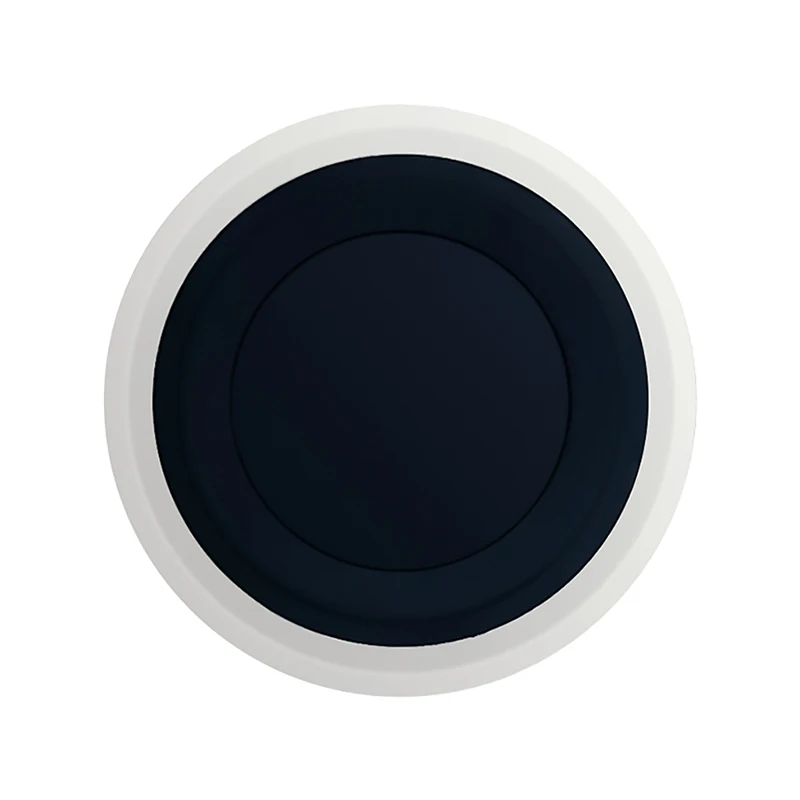

ZW3020:
Product Introduction
ZW3020 series modules are upgraded with three core features: Firstly, it adopts optimized image acquisition and pre-processing driver, which effectively shortens the time consuming image acquisition and pre-processing; secondly, it improves the image quality and response speed after initialization.
The first is the adoption of optimized image acquisition and pre-processing driver, which effectively shortens the time consuming image acquisition and pre-processing, and improves the image quality and response speed.
Secondly, after initialization, it automatically sends 0x55 bytes handshake logo, which accurately feedbacks the module readiness status and ensures the smooth flow of receiving commands from the host computer;
Third, the new "AutoSearch" command function allows users to complete the search operation with a single command, simplifying the interaction process and enhancing the ease of use.
This simplifies the interaction process and enhances the convenience of use.
Product Parameters
Module size: φ21mm
Sensor: φ13.6mm
Resolution: 108×108 pixel
Resolution: 508DPI
Interface protocol: TTL serial port
Communication Baud Rate: Default baud rate 57600bps/1 start bit/1 stop bit 3.3VTTL level
Interface and wire sequence: 1.0mm × 6Pin horizontal paste
Fingerprint library capacity: 100
Storage temperature and humidity -40℃~+85℃;; 85%RH
Operating temperature and humidity -25℃~+70℃;: 440%~85%RH
Recognition rate: 0.001%
Rejection rate:=3%
Comparison mode: 1:N
Standby current(sensor): 10uA@3.3V
Operating current (algorithm MCU): 60mA@3.3V
Picking time: ~250ms
Eigenvalue generation time: ~220ms
Comparison time: ~150ms
Power-on startup: ~100ms
ESD level: non-contact discharge ~15KV / contact discharge ~8KV
